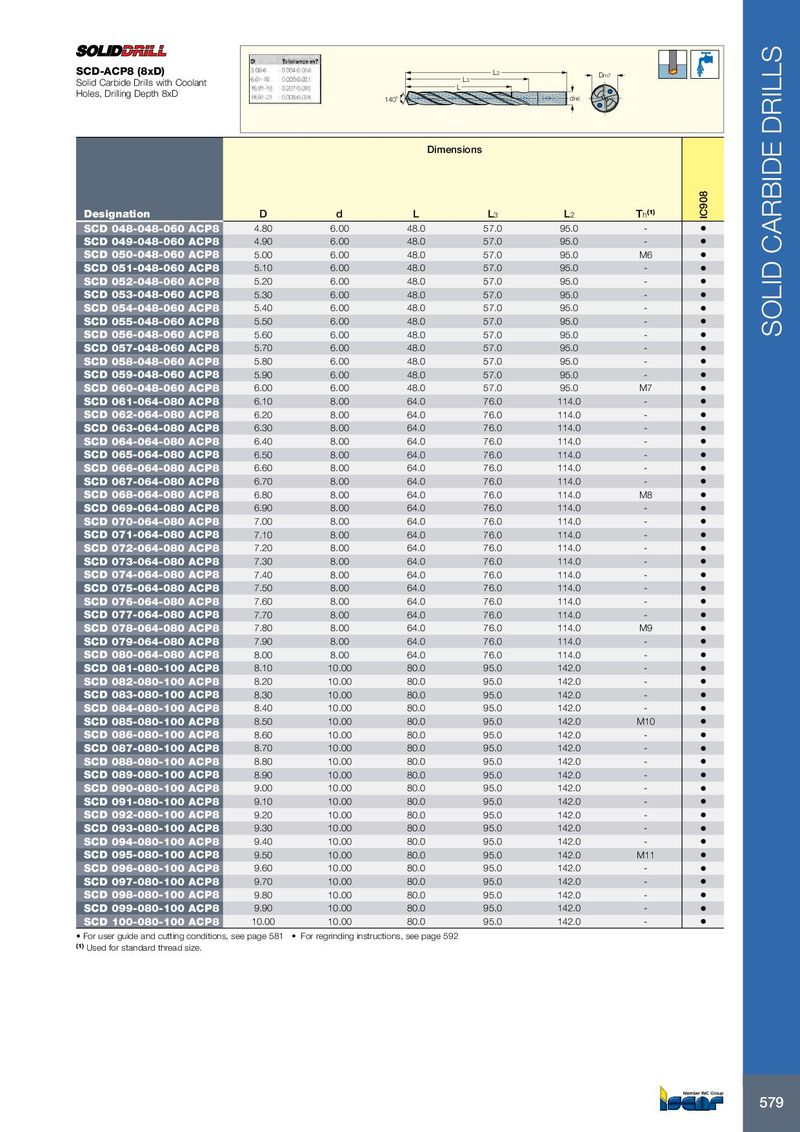

SCD-ACP8 (8xD) L 2 Dm7 Solid Carbide Drills with Coolant L3 Holes, Drilling Depth 8xD 140˚ dh6
Dimensions
| Designation | D | d | L | L3 | L2 | Th(1) | |
| SCD 048-048-060 ACP8 | 4.80 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 049-048-060 ACP8 | 4.90 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 050-048-060 ACP8 | 5.00 | 6.00 | 48.0 | 57.0 | 95.0 | M6 | |
| SCD 051-048-060 ACP8 | 5.10 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 052-048-060 ACP8 | 5.20 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 053-048-060 ACP8 | 5.30 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 054-048-060 ACP8 | 5.40 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 055-048-060 ACP8 | 5.50 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 056-048-060 ACP8 | 5.60 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 057-048-060 ACP8 | 5.70 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 058-048-060 ACP8 | 5.80 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 059-048-060 ACP8 | 5.90 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 060-048-060 ACP8 | 6.00 | 6.00 | 48.0 | 57.0 | 95.0 | M7 | |
| SCD 061-064-080 ACP8 | 6.10 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 062-064-080 ACP8 | 6.20 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 063-064-080 ACP8 | 6.30 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 064-064-080 ACP8 | 6.40 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 065-064-080 ACP8 | 6.50 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 066-064-080 ACP8 | 6.60 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 067-064-080 ACP8 | 6.70 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 068-064-080 ACP8 | 6.80 | 8.00 | 64.0 | 76.0 | 114.0 | M8 | |
| SCD 069-064-080 ACP8 | 6.90 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 070-064-080 ACP8 | 7.00 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 071-064-080 ACP8 | 7.10 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 072-064-080 ACP8 | 7.20 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 073-064-080 ACP8 | 7.30 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 074-064-080 ACP8 | 7.40 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 075-064-080 ACP8 | 7.50 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 076-064-080 ACP8 | 7.60 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 077-064-080 ACP8 | 7.70 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 078-064-080 ACP8 | 7.80 | 8.00 | 64.0 | 76.0 | 114.0 | M9 | |
| SCD 079-064-080 ACP8 | 7.90 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 080-064-080 ACP8 | 8.00 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 081-080-100 ACP8 | 8.10 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 082-080-100 ACP8 | 8.20 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 083-080-100 ACP8 | 8.30 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 084-080-100 ACP8 | 8.40 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 085-080-100 ACP8 | 8.50 | 10.00 | 80.0 | 95.0 | 142.0 | M10 | |
| SCD 086-080-100 ACP8 | 8.60 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 087-080-100 ACP8 | 8.70 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 088-080-100 ACP8 | 8.80 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 089-080-100 ACP8 | 8.90 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 090-080-100 ACP8 | 9.00 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 091-080-100 ACP8 | 9.10 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 092-080-100 ACP8 | 9.20 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 093-080-100 ACP8 | 9.30 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 094-080-100 ACP8 | 9.40 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 095-080-100 ACP8 | 9.50 | 10.00 | 80.0 | 95.0 | 142.0 | M11 | |
| SCD 096-080-100 ACP8 | 9.60 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 097-080-100 ACP8 | 9.70 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 098-080-100 ACP8 | 9.80 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 099-080-100 ACP8 | 9.90 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 100-080-100 ACP8 | 10.00 | 10.00 | 80.0 | 95.0 | 142.0 | - |
- For user guide and cutting conditions, see page 581
- For regrinding instructions, see page 592
(1) Used for standard thread size.
