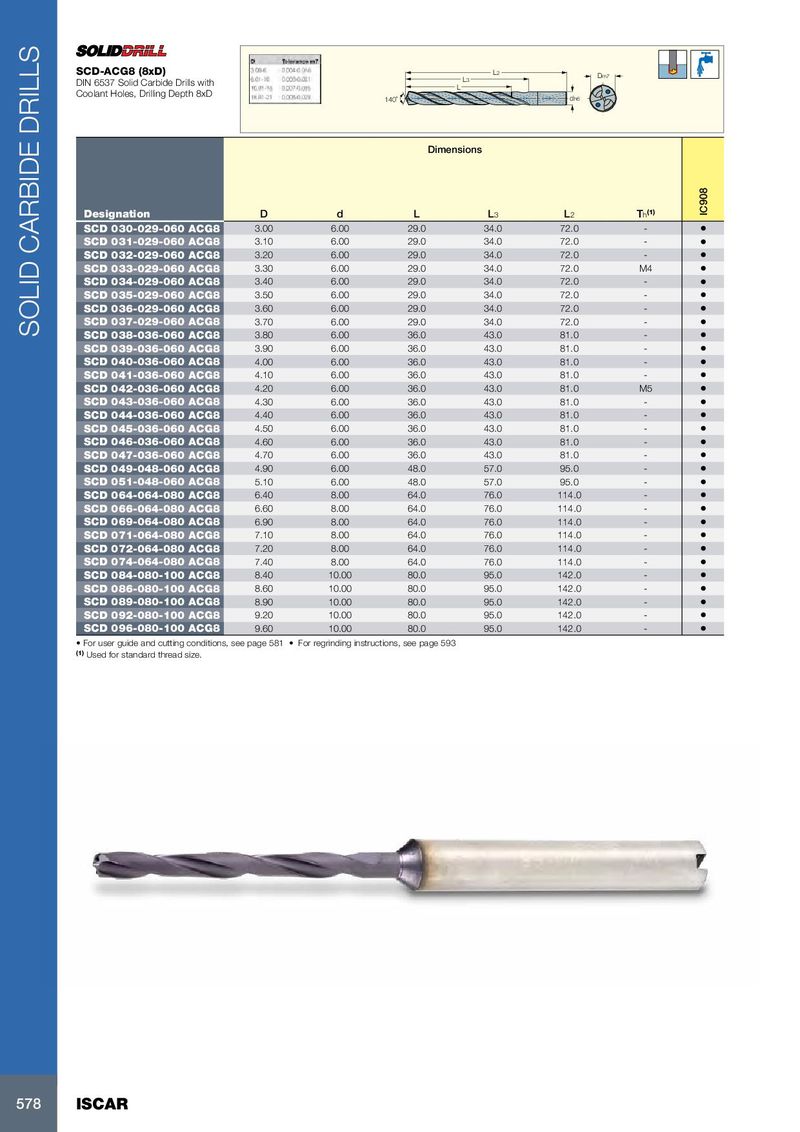

SCD-ACG8 (8xD) L 2 D
DIN 6537 Solid Carbide Drills with L3 m7
140˚ dh6
Dimensions
| Designation | D | d | L | L3 | L2 | Th(1) | |
| SCD 030-029-060 ACG8 | 3.00 | 6.00 | 29.0 | 34.0 | 72.0 | - | |
| SCD 031-029-060 ACG8 | 3.10 | 6.00 | 29.0 | 34.0 | 72.0 | - | |
| SCD 032-029-060 ACG8 | 3.20 | 6.00 | 29.0 | 34.0 | 72.0 | - | |
| SCD 033-029-060 ACG8 | 3.30 | 6.00 | 29.0 | 34.0 | 72.0 | M4 | |
| SCD 034-029-060 ACG8 | 3.40 | 6.00 | 29.0 | 34.0 | 72.0 | - | |
| SCD 035-029-060 ACG8 | 3.50 | 6.00 | 29.0 | 34.0 | 72.0 | - | |
| SCD 036-029-060 ACG8 | 3.60 | 6.00 | 29.0 | 34.0 | 72.0 | - | |
| SCD 037-029-060 ACG8 | 3.70 | 6.00 | 29.0 | 34.0 | 72.0 | - | |
| SCD 038-036-060 ACG8 | 3.80 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 039-036-060 ACG8 | 3.90 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 040-036-060 ACG8 | 4.00 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 041-036-060 ACG8 | 4.10 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 042-036-060 ACG8 | 4.20 | 6.00 | 36.0 | 43.0 | 81.0 | M5 | |
| SCD 043-036-060 ACG8 | 4.30 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 044-036-060 ACG8 | 4.40 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 045-036-060 ACG8 | 4.50 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 046-036-060 ACG8 | 4.60 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 047-036-060 ACG8 | 4.70 | 6.00 | 36.0 | 43.0 | 81.0 | - | |
| SCD 049-048-060 ACG8 | 4.90 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 051-048-060 ACG8 | 5.10 | 6.00 | 48.0 | 57.0 | 95.0 | - | |
| SCD 064-064-080 ACG8 | 6.40 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 066-064-080 ACG8 | 6.60 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 069-064-080 ACG8 | 6.90 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 071-064-080 ACG8 | 7.10 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 072-064-080 ACG8 | 7.20 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 074-064-080 ACG8 | 7.40 | 8.00 | 64.0 | 76.0 | 114.0 | - | |
| SCD 084-080-100 ACG8 | 8.40 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 086-080-100 ACG8 | 8.60 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 089-080-100 ACG8 | 8.90 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 092-080-100 ACG8 | 9.20 | 10.00 | 80.0 | 95.0 | 142.0 | - | |
| SCD 096-080-100 ACG8 | 9.60 | 10.00 | 80.0 | 95.0 | 142.0 | - |
- For user guide and cutting conditions, see page 581
- For regrinding instructions, see page 593
(1) Used for standard thread size.
