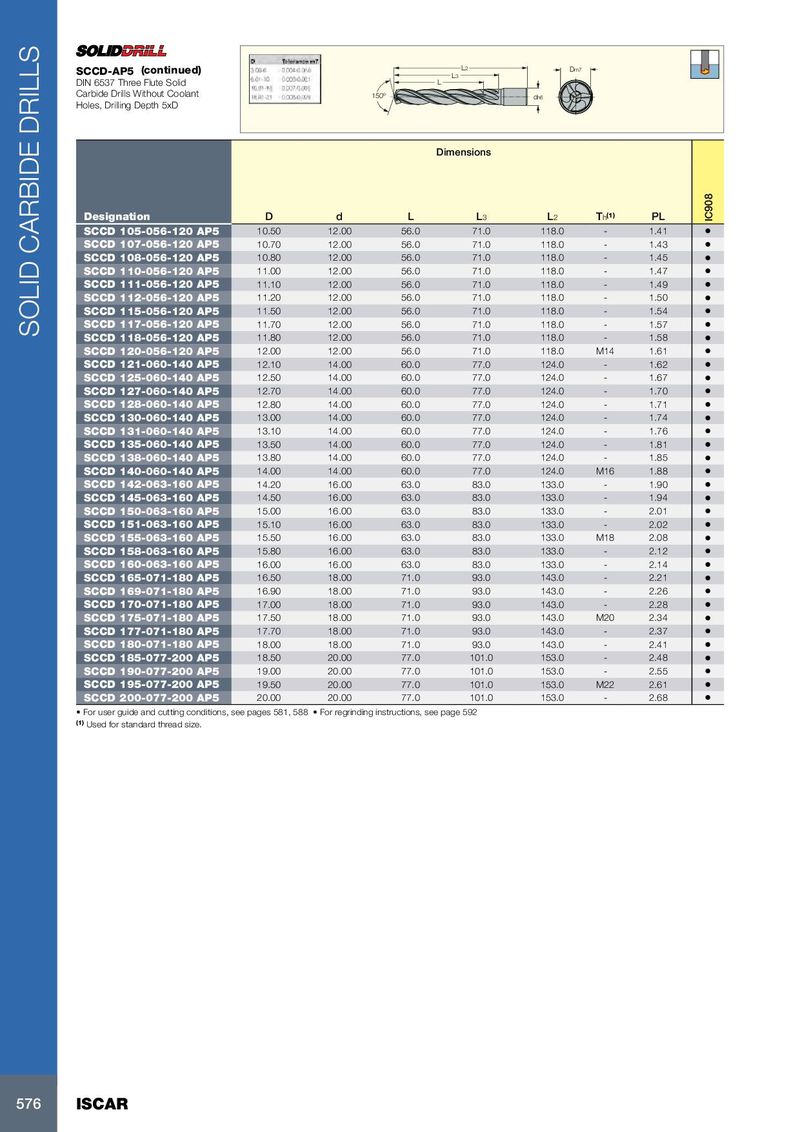

SCCD-AP5 (continued) L2 D
DIN 6537 Three Flute Solid L Carbide Drills Without Coolant 150º dh6 Holes, Drilling Depth 5xD
Dimensions
| Designation | D | d | L | L3 | L2 | Th(1) | PL | |
| SCCD 105-056-120 AP5 | 10.50 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.41 | |
| SCCD 107-056-120 AP5 | 10.70 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.43 | |
| SCCD 108-056-120 AP5 | 10.80 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.45 | |
| SCCD 110-056-120 AP5 | 11.00 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.47 | |
| SCCD 111-056-120 AP5 | 11.10 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.49 | |
| SCCD 112-056-120 AP5 | 11.20 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.50 | |
| SCCD 115-056-120 AP5 | 11.50 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.54 | |
| SCCD 117-056-120 AP5 | 11.70 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.57 | |
| SCCD 118-056-120 AP5 | 11.80 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.58 | |
| SCCD 120-056-120 AP5 | 12.00 | 12.00 | 56.0 | 71.0 | 118.0 | M14 | 1.61 | |
| SCCD 121-060-140 AP5 | 12.10 | 14.00 | 60.0 | 77.0 | 124.0 | - | 1.62 | |
| SCCD 125-060-140 AP5 | 12.50 | 14.00 | 60.0 | 77.0 | 124.0 | - | 1.67 | |
| SCCD 127-060-140 AP5 | 12.70 | 14.00 | 60.0 | 77.0 | 124.0 | - | 1.70 | |
| SCCD 128-060-140 AP5 | 12.80 | 14.00 | 60.0 | 77.0 | 124.0 | - | 1.71 | |
| SCCD 130-060-140 AP5 | 13.00 | 14.00 | 60.0 | 77.0 | 124.0 | - | 1.74 | |
| SCCD 131-060-140 AP5 | 13.10 | 14.00 | 60.0 | 77.0 | 124.0 | - | 1.76 | |
| SCCD 135-060-140 AP5 | 13.50 | 14.00 | 60.0 | 77.0 | 124.0 | - | 1.81 | |
| SCCD 138-060-140 AP5 | 13.80 | 14.00 | 60.0 | 77.0 | 124.0 | - | 1.85 | |
| SCCD 140-060-140 AP5 | 14.00 | 14.00 | 60.0 | 77.0 | 124.0 | M16 | 1.88 | |
| SCCD 142-063-160 AP5 | 14.20 | 16.00 | 63.0 | 83.0 | 133.0 | - | 1.90 | |
| SCCD 145-063-160 AP5 | 14.50 | 16.00 | 63.0 | 83.0 | 133.0 | - | 1.94 | |
| SCCD 150-063-160 AP5 | 15.00 | 16.00 | 63.0 | 83.0 | 133.0 | - | 2.01 | |
| SCCD 151-063-160 AP5 | 15.10 | 16.00 | 63.0 | 83.0 | 133.0 | - | 2.02 | |
| SCCD 155-063-160 AP5 | 15.50 | 16.00 | 63.0 | 83.0 | 133.0 | M18 | 2.08 | |
| SCCD 158-063-160 AP5 | 15.80 | 16.00 | 63.0 | 83.0 | 133.0 | - | 2.12 | |
| SCCD 160-063-160 AP5 | 16.00 | 16.00 | 63.0 | 83.0 | 133.0 | - | 2.14 | |
| SCCD 165-071-180 AP5 | 16.50 | 18.00 | 71.0 | 93.0 | 143.0 | - | 2.21 | |
| SCCD 169-071-180 AP5 | 16.90 | 18.00 | 71.0 | 93.0 | 143.0 | - | 2.26 | |
| SCCD 170-071-180 AP5 | 17.00 | 18.00 | 71.0 | 93.0 | 143.0 | - | 2.28 | |
| SCCD 175-071-180 AP5 | 17.50 | 18.00 | 71.0 | 93.0 | 143.0 | M20 | 2.34 | |
| SCCD 177-071-180 AP5 | 17.70 | 18.00 | 71.0 | 93.0 | 143.0 | - | 2.37 | |
| SCCD 180-071-180 AP5 | 18.00 | 18.00 | 71.0 | 93.0 | 143.0 | - | 2.41 | |
| SCCD 185-077-200 AP5 | 18.50 | 20.00 | 77.0 | 101.0 | 153.0 | - | 2.48 | |
| SCCD 190-077-200 AP5 | 19.00 | 20.00 | 77.0 | 101.0 | 153.0 | - | 2.55 | |
| SCCD 195-077-200 AP5 | 19.50 | 20.00 | 77.0 | 101.0 | 153.0 | M22 | 2.61 | |
| SCCD 200-077-200 AP5 | 20.00 | 20.00 | 77.0 | 101.0 | 153.0 | - | 2.68 |
- For user guide and cutting conditions, see pages 581, 588
- For regrinding instructions, see page 592
(1) Used for standard thread size.
