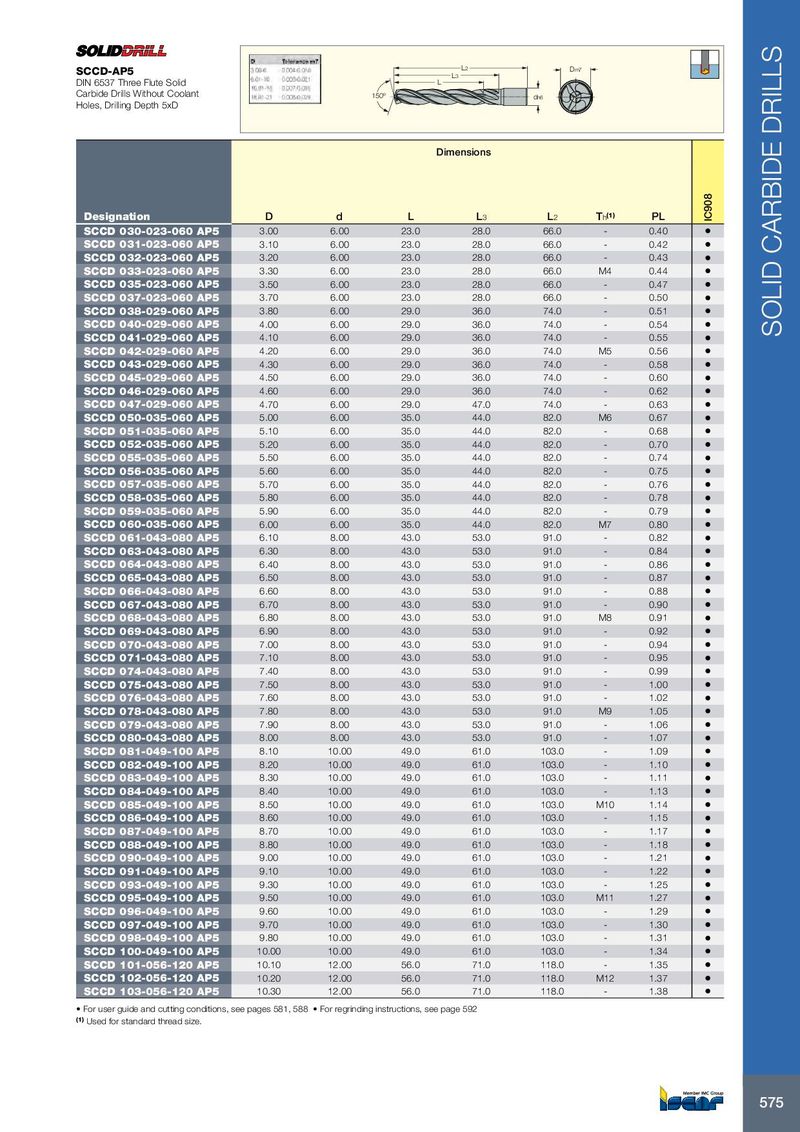

SCCD-AP5 L2 Dm7
DIN 6537 Three Flute Solid L Carbide Drills Without Coolant 150º dh6 Holes, Drilling Depth 5xD
Dimensions
| Designation | D | d | L | L3 | L2 | Th(1) | PL | |
| SCCD 030-023-060 AP5 | 3.00 | 6.00 | 23.0 | 28.0 | 66.0 | - | 0.40 | |
| SCCD 031-023-060 AP5 | 3.10 | 6.00 | 23.0 | 28.0 | 66.0 | - | 0.42 | |
| SCCD 032-023-060 AP5 | 3.20 | 6.00 | 23.0 | 28.0 | 66.0 | - | 0.43 | |
| SCCD 033-023-060 AP5 | 3.30 | 6.00 | 23.0 | 28.0 | 66.0 | M4 | 0.44 | |
| SCCD 035-023-060 AP5 | 3.50 | 6.00 | 23.0 | 28.0 | 66.0 | - | 0.47 | |
| SCCD 037-023-060 AP5 | 3.70 | 6.00 | 23.0 | 28.0 | 66.0 | - | 0.50 | |
| SCCD 038-029-060 AP5 | 3.80 | 6.00 | 29.0 | 36.0 | 74.0 | - | 0.51 | |
| SCCD 040-029-060 AP5 | 4.00 | 6.00 | 29.0 | 36.0 | 74.0 | - | 0.54 | |
| SCCD 041-029-060 AP5 | 4.10 | 6.00 | 29.0 | 36.0 | 74.0 | - | 0.55 | |
| SCCD 042-029-060 AP5 | 4.20 | 6.00 | 29.0 | 36.0 | 74.0 | M5 | 0.56 | |
| SCCD 043-029-060 AP5 | 4.30 | 6.00 | 29.0 | 36.0 | 74.0 | - | 0.58 | |
| SCCD 045-029-060 AP5 | 4.50 | 6.00 | 29.0 | 36.0 | 74.0 | - | 0.60 | |
| SCCD 046-029-060 AP5 | 4.60 | 6.00 | 29.0 | 36.0 | 74.0 | - | 0.62 | |
| SCCD 047-029-060 AP5 | 4.70 | 6.00 | 29.0 | 47.0 | 74.0 | - | 0.63 | |
| SCCD 050-035-060 AP5 | 5.00 | 6.00 | 35.0 | 44.0 | 82.0 | M6 | 0.67 | |
| SCCD 051-035-060 AP5 | 5.10 | 6.00 | 35.0 | 44.0 | 82.0 | - | 0.68 | |
| SCCD 052-035-060 AP5 | 5.20 | 6.00 | 35.0 | 44.0 | 82.0 | - | 0.70 | |
| SCCD 055-035-060 AP5 | 5.50 | 6.00 | 35.0 | 44.0 | 82.0 | - | 0.74 | |
| SCCD 056-035-060 AP5 | 5.60 | 6.00 | 35.0 | 44.0 | 82.0 | - | 0.75 | |
| SCCD 057-035-060 AP5 | 5.70 | 6.00 | 35.0 | 44.0 | 82.0 | - | 0.76 | |
| SCCD 058-035-060 AP5 | 5.80 | 6.00 | 35.0 | 44.0 | 82.0 | - | 0.78 | |
| SCCD 059-035-060 AP5 | 5.90 | 6.00 | 35.0 | 44.0 | 82.0 | - | 0.79 | |
| SCCD 060-035-060 AP5 | 6.00 | 6.00 | 35.0 | 44.0 | 82.0 | M7 | 0.80 | |
| SCCD 061-043-080 AP5 | 6.10 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.82 | |
| SCCD 063-043-080 AP5 | 6.30 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.84 | |
| SCCD 064-043-080 AP5 | 6.40 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.86 | |
| SCCD 065-043-080 AP5 | 6.50 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.87 | |
| SCCD 066-043-080 AP5 | 6.60 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.88 | |
| SCCD 067-043-080 AP5 | 6.70 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.90 | |
| SCCD 068-043-080 AP5 | 6.80 | 8.00 | 43.0 | 53.0 | 91.0 | M8 | 0.91 | |
| SCCD 069-043-080 AP5 | 6.90 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.92 | |
| SCCD 070-043-080 AP5 | 7.00 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.94 | |
| SCCD 071-043-080 AP5 | 7.10 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.95 | |
| SCCD 074-043-080 AP5 | 7.40 | 8.00 | 43.0 | 53.0 | 91.0 | - | 0.99 | |
| SCCD 075-043-080 AP5 | 7.50 | 8.00 | 43.0 | 53.0 | 91.0 | - | 1.00 | |
| SCCD 076-043-080 AP5 | 7.60 | 8.00 | 43.0 | 53.0 | 91.0 | - | 1.02 | |
| SCCD 078-043-080 AP5 | 7.80 | 8.00 | 43.0 | 53.0 | 91.0 | M9 | 1.05 | |
| SCCD 079-043-080 AP5 | 7.90 | 8.00 | 43.0 | 53.0 | 91.0 | - | 1.06 | |
| SCCD 080-043-080 AP5 | 8.00 | 8.00 | 43.0 | 53.0 | 91.0 | - | 1.07 | |
| SCCD 081-049-100 AP5 | 8.10 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.09 | |
| SCCD 082-049-100 AP5 | 8.20 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.10 | |
| SCCD 083-049-100 AP5 | 8.30 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.11 | |
| SCCD 084-049-100 AP5 | 8.40 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.13 | |
| SCCD 085-049-100 AP5 | 8.50 | 10.00 | 49.0 | 61.0 | 103.0 | M10 | 1.14 | |
| SCCD 086-049-100 AP5 | 8.60 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.15 | |
| SCCD 087-049-100 AP5 | 8.70 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.17 | |
| SCCD 088-049-100 AP5 | 8.80 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.18 | |
| SCCD 090-049-100 AP5 | 9.00 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.21 | |
| SCCD 091-049-100 AP5 | 9.10 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.22 | |
| SCCD 093-049-100 AP5 | 9.30 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.25 | |
| SCCD 095-049-100 AP5 | 9.50 | 10.00 | 49.0 | 61.0 | 103.0 | M11 | 1.27 | |
| SCCD 096-049-100 AP5 | 9.60 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.29 | |
| SCCD 097-049-100 AP5 | 9.70 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.30 | |
| SCCD 098-049-100 AP5 | 9.80 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.31 | |
| SCCD 100-049-100 AP5 | 10.00 | 10.00 | 49.0 | 61.0 | 103.0 | - | 1.34 | |
| SCCD 101-056-120 AP5 | 10.10 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.35 | |
| SCCD 102-056-120 AP5 | 10.20 | 12.00 | 56.0 | 71.0 | 118.0 | M12 | 1.37 | |
| SCCD 103-056-120 AP5 | 10.30 | 12.00 | 56.0 | 71.0 | 118.0 | - | 1.38 |
- For user guide and cutting conditions, see pages 581, 588
- For regrinding instructions, see page 592
(1) Used for standard thread size.
