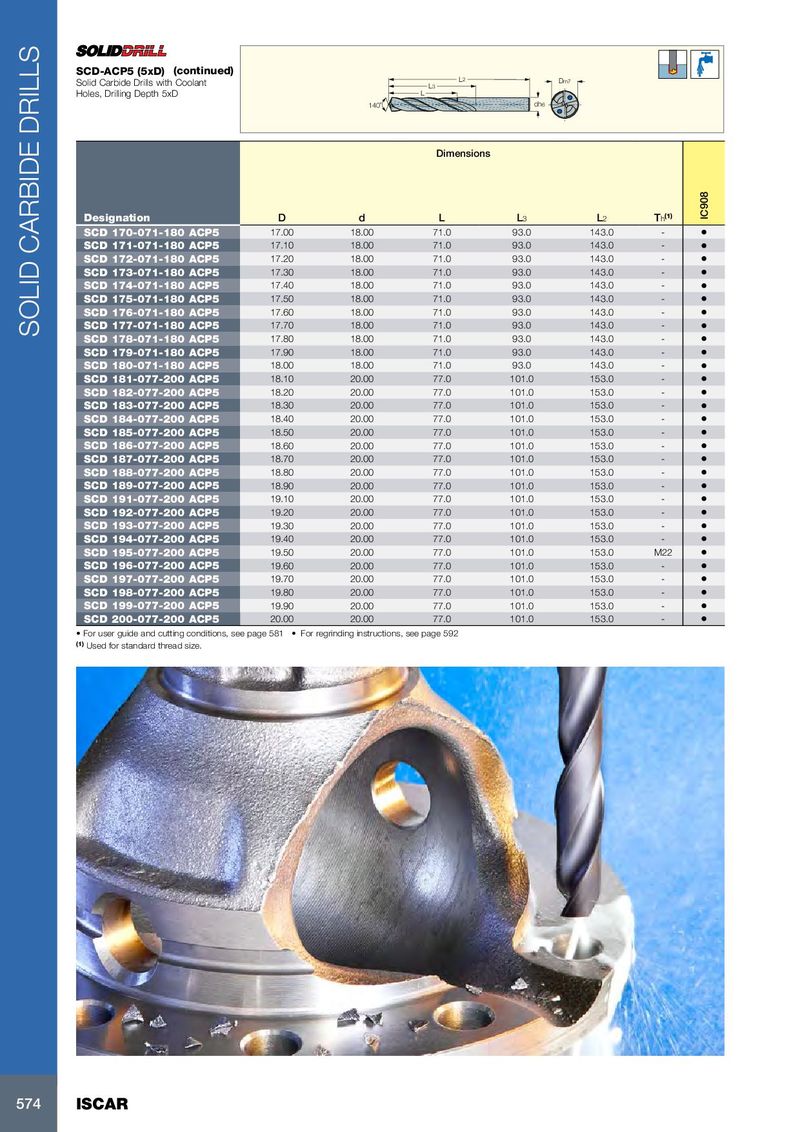

SCD-ACP5 (5xD) (continued) Solid Carbide Drills with Coolant L 2 D m7 L 3 Holes, Drilling Depth 5xD L 140˚ dh6 Dimensions Designation D d L L 3 L 2 T h (1) IC908 SCD 170-071-180 ACP5 17.00 18.00 71.0 93.0 143.0 - • SCD 171-071-180 ACP5 17.10 18.00 71.0 93.0 143.0 - • SCD 172-071-180 ACP5 17.20 18.00 71.0 93.0 143.0 - • SCD 173-071-180 ACP5 17.30 18.00 71.0 93.0 143.0 - • SCD 174-071-180 ACP5 17.40 18.00 71.0 93.0 143.0 - • SCD 175-071-180 ACP5 17.50 18.00 71.0 93.0 143.0 - • SCD 176-071-180 ACP5 17.60 18.00 71.0 93.0 143.0 - • SCD 177-071-180 ACP5 17.70 18.00 71.0 93.0 143.0 - • SOLID CARBIDE DRILLS SCD 178-071-180 ACP5 17.80 18.00 71.0 93.0 143.0 - • SCD 179-071-180 ACP5 17.90 18.00 71.0 93.0 143.0 - • SCD 180-071-180 ACP5 18.00 18.00 71.0 93.0 143.0 - • SCD 181-077-200 ACP5 18.10 20.00 77.0 101.0 153.0 - • SCD 182-077-200 ACP5 18.20 20.00 77.0 101.0 153.0 - • SCD 183-077-200 ACP5 18.30 20.00 77.0 101.0 153.0 - • SCD 184-077-200 ACP5 18.40 20.00 77.0 101.0 153.0 - • SCD 185-077-200 ACP5 18.50 20.00 77.0 101.0 153.0 - • SCD 186-077-200 ACP5 18.60 20.00 77.0 101.0 153.0 - • SCD 187-077-200 ACP5 18.70 20.00 77.0 101.0 153.0 - • SCD 188-077-200 ACP5 18.80 20.00 77.0 101.0 153.0 - • SCD 189-077-200 ACP5 18.90 20.00 77.0 101.0 153.0 - • SCD 191-077-200 ACP5 19.10 20.00 77.0 101.0 153.0 - • SCD 192-077-200 ACP5 19.20 20.00 77.0 101.0 153.0 - • SCD 193-077-200 ACP5 19.30 20.00 77.0 101.0 153.0 - • SCD 194-077-200 ACP5 19.40 20.00 77.0 101.0 153.0 - • SCD 195-077-200 ACP5 19.50 20.00 77.0 101.0 153.0 M22 • SCD 196-077-200 ACP5 19.60 20.00 77.0 101.0 153.0 - • SCD 197-077-200 ACP5 19.70 20.00 77.0 101.0 153.0 - • SCD 198-077-200 ACP5 19.80 20.00 77.0 101.0 153.0 - • SCD 199-077-200 ACP5 19.90 20.00 77.0 101.0 153.0 - • SCD 200-077-200 ACP5 20.00 20.00 77.0 101.0 153.0 - • • For user guide and cutting conditions, see page 581 • For regrinding instructions, see page 592 (1) Used for standard thread size. 574 ISCAR
