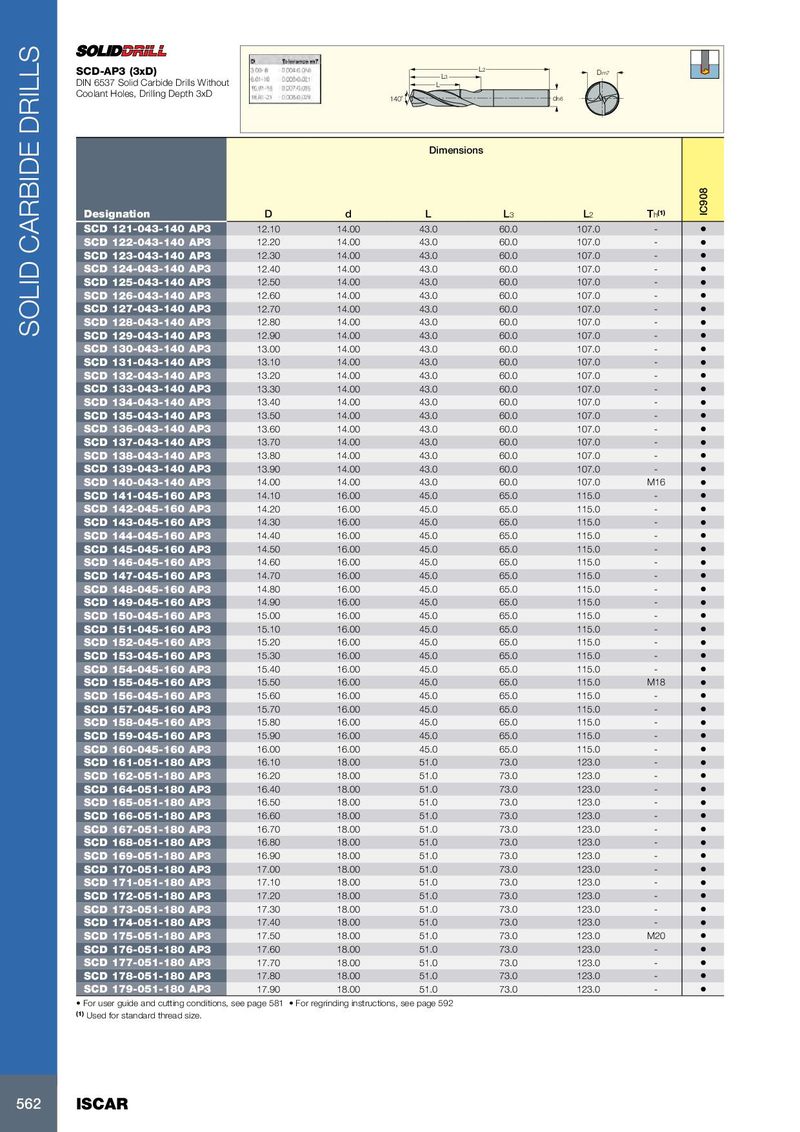

SCD-AP3 (3xD) L 2 L 3 Dm7 DIN 6537 Solid Carbide Drills Without L Coolant Holes, Drilling Depth 3xD 140˚ dh6 Dimensions Designation D d L L 3 L 2 T h (1) IC908 SCD 121-043-140 AP3 12.10 14.00 43.0 60.0 107.0 - • SCD 122-043-140 AP3 12.20 14.00 43.0 60.0 107.0 - • SCD 123-043-140 AP3 12.30 14.00 43.0 60.0 107.0 - • SCD 124-043-140 AP3 12.40 14.00 43.0 60.0 107.0 - • SCD 125-043-140 AP3 12.50 14.00 43.0 60.0 107.0 - • SCD 126-043-140 AP3 12.60 14.00 43.0 60.0 107.0 - • SCD 127-043-140 AP3 12.70 14.00 43.0 60.0 107.0 - • SCD 128-043-140 AP3 12.80 14.00 43.0 60.0 107.0 - • SOLID CARBIDE DRILLS SCD 129-043-140 AP3 12.90 14.00 43.0 60.0 107.0 - • SCD 130-043-140 AP3 13.00 14.00 43.0 60.0 107.0 - • SCD 131-043-140 AP3 13.10 14.00 43.0 60.0 107.0 - • SCD 132-043-140 AP3 13.20 14.00 43.0 60.0 107.0 - • SCD 133-043-140 AP3 13.30 14.00 43.0 60.0 107.0 - • SCD 134-043-140 AP3 13.40 14.00 43.0 60.0 107.0 - • SCD 135-043-140 AP3 13.50 14.00 43.0 60.0 107.0 - • SCD 136-043-140 AP3 13.60 14.00 43.0 60.0 107.0 - • SCD 137-043-140 AP3 13.70 14.00 43.0 60.0 107.0 - • SCD 138-043-140 AP3 13.80 14.00 43.0 60.0 107.0 - • SCD 139-043-140 AP3 13.90 14.00 43.0 60.0 107.0 - • SCD 140-043-140 AP3 14.00 14.00 43.0 60.0 107.0 M16 • SCD 141-045-160 AP3 14.10 16.00 45.0 65.0 115.0 - • SCD 142-045-160 AP3 14.20 16.00 45.0 65.0 115.0 - • SCD 143-045-160 AP3 14.30 16.00 45.0 65.0 115.0 - • SCD 144-045-160 AP3 14.40 16.00 45.0 65.0 115.0 - • SCD 145-045-160 AP3 14.50 16.00 45.0 65.0 115.0 - • SCD 146-045-160 AP3 14.60 16.00 45.0 65.0 115.0 - • SCD 147-045-160 AP3 14.70 16.00 45.0 65.0 115.0 - • SCD 148-045-160 AP3 14.80 16.00 45.0 65.0 115.0 - • SCD 149-045-160 AP3 14.90 16.00 45.0 65.0 115.0 - • SCD 150-045-160 AP3 15.00 16.00 45.0 65.0 115.0 - • SCD 151-045-160 AP3 15.10 16.00 45.0 65.0 115.0 - • SCD 152-045-160 AP3 15.20 16.00 45.0 65.0 115.0 - • SCD 153-045-160 AP3 15.30 16.00 45.0 65.0 115.0 - • SCD 154-045-160 AP3 15.40 16.00 45.0 65.0 115.0 - • SCD 155-045-160 AP3 15.50 16.00 45.0 65.0 115.0 M18 • SCD 156-045-160 AP3 15.60 16.00 45.0 65.0 115.0 - • SCD 157-045-160 AP3 15.70 16.00 45.0 65.0 115.0 - • SCD 158-045-160 AP3 15.80 16.00 45.0 65.0 115.0 - • SCD 159-045-160 AP3 15.90 16.00 45.0 65.0 115.0 - • SCD 160-045-160 AP3 16.00 16.00 45.0 65.0 115.0 - • SCD 161-051-180 AP3 16.10 18.00 51.0 73.0 123.0 - • SCD 162-051-180 AP3 16.20 18.00 51.0 73.0 123.0 - • SCD 164-051-180 AP3 16.40 18.00 51.0 73.0 123.0 - • SCD 165-051-180 AP3 16.50 18.00 51.0 73.0 123.0 - • SCD 166-051-180 AP3 16.60 18.00 51.0 73.0 123.0 - • SCD 167-051-180 AP3 16.70 18.00 51.0 73.0 123.0 - • SCD 168-051-180 AP3 16.80 18.00 51.0 73.0 123.0 - • SCD 169-051-180 AP3 16.90 18.00 51.0 73.0 123.0 - • SCD 170-051-180 AP3 17.00 18.00 51.0 73.0 123.0 - • SCD 171-051-180 AP3 17.10 18.00 51.0 73.0 123.0 - • SCD 172-051-180 AP3 17.20 18.00 51.0 73.0 123.0 - • SCD 173-051-180 AP3 17.30 18.00 51.0 73.0 123.0 - • SCD 174-051-180 AP3 17.40 18.00 51.0 73.0 123.0 - • SCD 175-051-180 AP3 17.50 18.00 51.0 73.0 123.0 M20 • SCD 176-051-180 AP3 17.60 18.00 51.0 73.0 123.0 - • SCD 177-051-180 AP3 17.70 18.00 51.0 73.0 123.0 - • SCD 178-051-180 AP3 17.80 18.00 51.0 73.0 123.0 - • SCD 179-051-180 AP3 17.90 18.00 51.0 73.0 123.0 - • • For user guide and cutting conditions, see page 581 • For regrinding instructions, see page 592 (1) Used for standard thread size. 562 ISCAR
