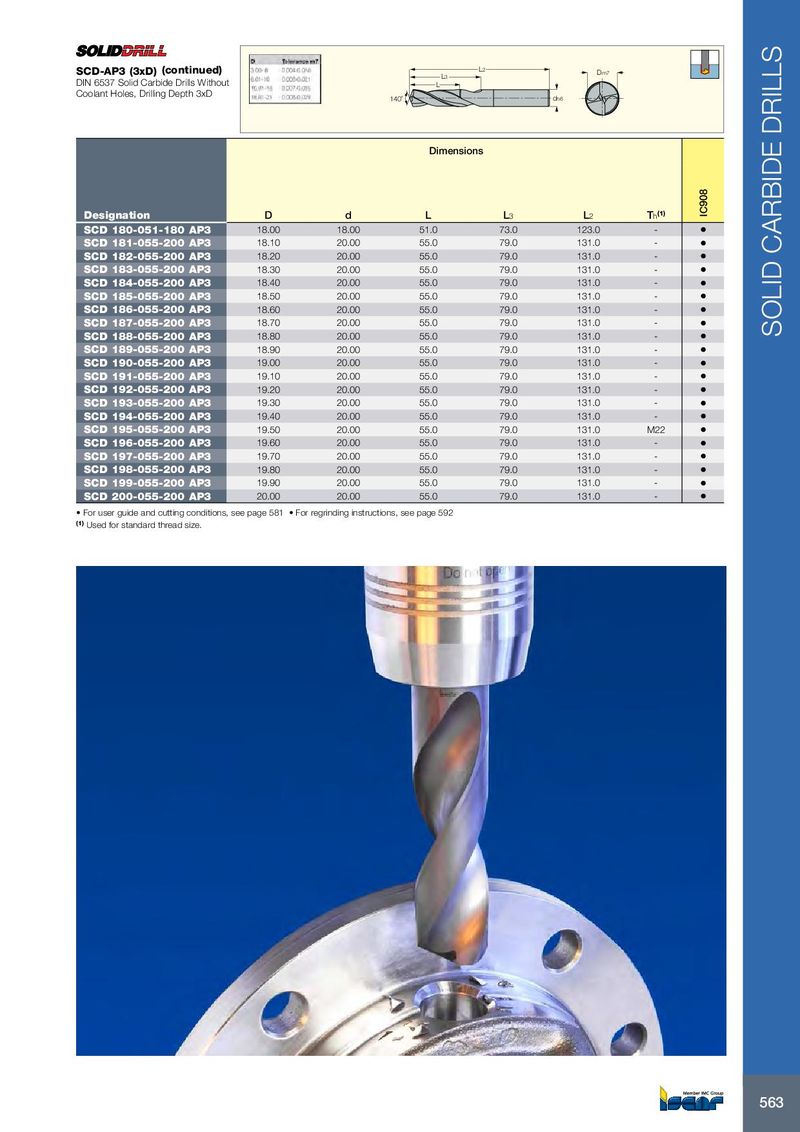

Каталог Iscar вращающийся инструмент 2017 - страница 567

SCD-AP3 (3xD) (continued) L 2 L 3 Dm7 DIN 6537 Solid Carbide Drills Without L Coolant Holes, Drilling Depth 3xD 140˚ dh6 Dimensions Designation D d L L 3 L 2 T h (1) IC908 SCD 180-051-180 AP3 18.00 18.00 51.0 73.0 123.0 - • SCD 181-055-200 AP3 18.10 20.00 55.0 79.0 131.0 - • SCD 182-055-200 AP3 18.20 20.00 55.0 79.0 131.0 - • SCD 183-055-200 AP3 18.30 20.00 55.0 79.0 131.0 - • SCD 184-055-200 AP3 18.40 20.00 55.0 79.0 131.0 - • SCD 185-055-200 AP3 18.50 20.00 55.0 79.0 131.0 - • SCD 186-055-200 AP3 18.60 20.00 55.0 79.0 131.0 - • SCD 187-055-200 AP3 18.70 20.00 55.0 79.0 131.0 - • SCD 188-055-200 AP3 18.80 20.00 55.0 79.0 131.0 - SOLID CARBIDE DRILLS • SCD 189-055-200 AP3 18.90 20.00 55.0 79.0 131.0 - • SCD 190-055-200 AP3 19.00 20.00 55.0 79.0 131.0 - • SCD 191-055-200 AP3 19.10 20.00 55.0 79.0 131.0 - • SCD 192-055-200 AP3 19.20 20.00 55.0 79.0 131.0 - • SCD 193-055-200 AP3 19.30 20.00 55.0 79.0 131.0 - • SCD 194-055-200 AP3 19.40 20.00 55.0 79.0 131.0 - • SCD 195-055-200 AP3 19.50 20.00 55.0 79.0 131.0 M22 • SCD 196-055-200 AP3 19.60 20.00 55.0 79.0 131.0 - • SCD 197-055-200 AP3 19.70 20.00 55.0 79.0 131.0 - • SCD 198-055-200 AP3 19.80 20.00 55.0 79.0 131.0 - • SCD 199-055-200 AP3 19.90 20.00 55.0 79.0 131.0 - • SCD 200-055-200 AP3 20.00 20.00 55.0 79.0 131.0 - • • For user guide and cutting conditions, see page 581 • For regrinding instructions, see page 592 (1) Used for standard thread size. 563
