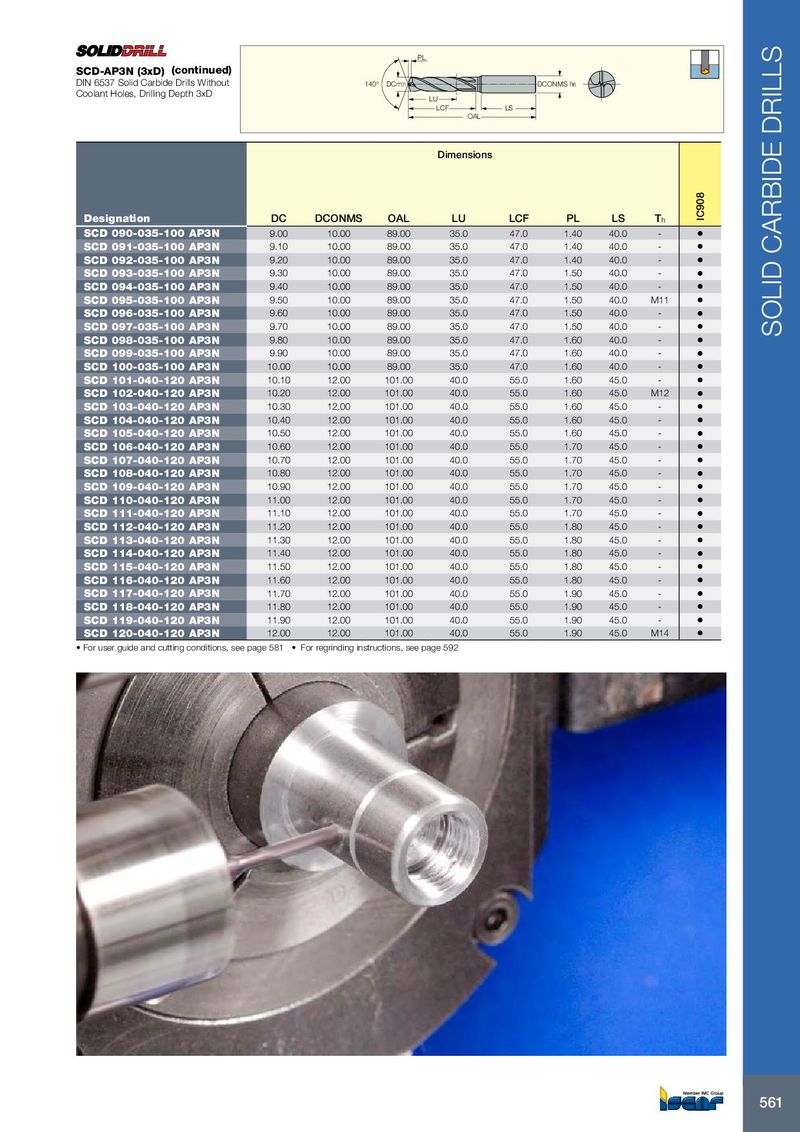

PL SCD-AP3N (3xD) (continued) DIN 6537 Solid Carbide Drills Without 140° DCm 7 DCONMS h6 Coolant Holes, Drilling Depth 3xD LU LCF LS OAL Dimensions Designation DC DCONMS OAL LU LCF PL LS T h IC908 SCD 090-035-100 AP3N 9.00 10.00 89.00 35.0 47.0 1.40 40.0 - • SCD 091-035-100 AP3N 9.10 10.00 89.00 35.0 47.0 1.40 40.0 - • SCD 092-035-100 AP3N 9.20 10.00 89.00 35.0 47.0 1.40 40.0 - • SCD 093-035-100 AP3N 9.30 10.00 89.00 35.0 47.0 1.50 40.0 - • SCD 094-035-100 AP3N 9.40 10.00 89.00 35.0 47.0 1.50 40.0 - • SCD 095-035-100 AP3N 9.50 10.00 89.00 35.0 47.0 1.50 40.0 M11 • SCD 096-035-100 AP3N 9.60 10.00 89.00 35.0 47.0 1.50 40.0 - • SCD 097-035-100 AP3N 9.70 10.00 89.00 35.0 47.0 1.50 40.0 - • SOLID CARBIDE DRILLS SCD 098-035-100 AP3N 9.80 10.00 89.00 35.0 47.0 1.60 40.0 - • SCD 099-035-100 AP3N 9.90 10.00 89.00 35.0 47.0 1.60 40.0 - • SCD 100-035-100 AP3N 10.00 10.00 89.00 35.0 47.0 1.60 40.0 - • SCD 101-040-120 AP3N 10.10 12.00 101.00 40.0 55.0 1.60 45.0 - • SCD 102-040-120 AP3N 10.20 12.00 101.00 40.0 55.0 1.60 45.0 M12 • SCD 103-040-120 AP3N 10.30 12.00 101.00 40.0 55.0 1.60 45.0 - • SCD 104-040-120 AP3N 10.40 12.00 101.00 40.0 55.0 1.60 45.0 - • SCD 105-040-120 AP3N 10.50 12.00 101.00 40.0 55.0 1.60 45.0 - • SCD 106-040-120 AP3N 10.60 12.00 101.00 40.0 55.0 1.70 45.0 - • SCD 107-040-120 AP3N 10.70 12.00 101.00 40.0 55.0 1.70 45.0 - • SCD 108-040-120 AP3N 10.80 12.00 101.00 40.0 55.0 1.70 45.0 - • SCD 109-040-120 AP3N 10.90 12.00 101.00 40.0 55.0 1.70 45.0 - • SCD 110-040-120 AP3N 11.00 12.00 101.00 40.0 55.0 1.70 45.0 - • SCD 111-040-120 AP3N 11.10 12.00 101.00 40.0 55.0 1.70 45.0 - • SCD 112-040-120 AP3N 11.20 12.00 101.00 40.0 55.0 1.80 45.0 - • SCD 113-040-120 AP3N 11.30 12.00 101.00 40.0 55.0 1.80 45.0 - • SCD 114-040-120 AP3N 11.40 12.00 101.00 40.0 55.0 1.80 45.0 - • SCD 115-040-120 AP3N 11.50 12.00 101.00 40.0 55.0 1.80 45.0 - • SCD 116-040-120 AP3N 11.60 12.00 101.00 40.0 55.0 1.80 45.0 - • SCD 117-040-120 AP3N 11.70 12.00 101.00 40.0 55.0 1.90 45.0 - • SCD 118-040-120 AP3N 11.80 12.00 101.00 40.0 55.0 1.90 45.0 - • SCD 119-040-120 AP3N 11.90 12.00 101.00 40.0 55.0 1.90 45.0 - • SCD 120-040-120 AP3N 12.00 12.00 101.00 40.0 55.0 1.90 45.0 M14 • • For user guide and cutting conditions, see page 581 • For regrinding instructions, see page 592 561
