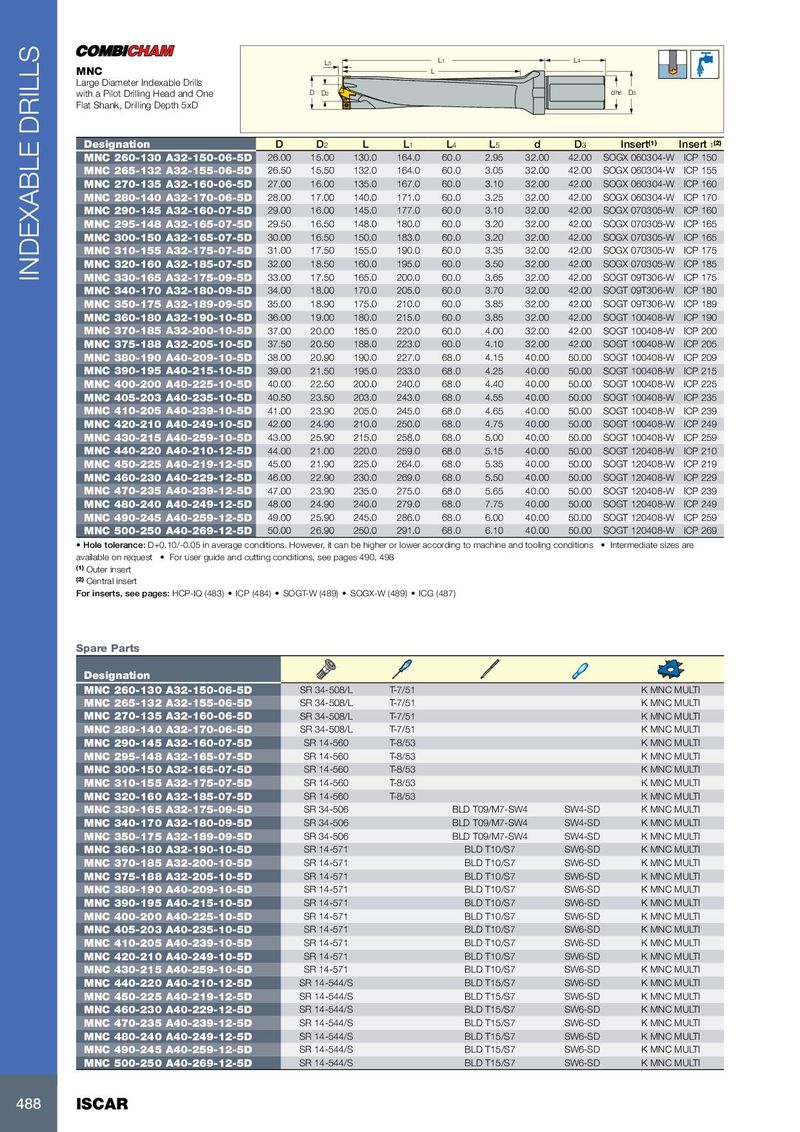

L5 L1 L4 MNC L Large Diameter Indexable Drills with a Pilot Drilling Head and One D D2 dh6 D3 Flat Shank, Drilling Depth 5xD Designation D D 2 L L 1 L 4 L 5 d D 3 Insert (1) Insert 1 (2) MNC 260-130 A32-150-06-5D 26.00 15.00 130.0 164.0 60.0 2.95 32.00 42.00 SOGX 060304-W ICP 150 MNC 265-132 A32-155-06-5D 26.50 15.50 132.0 164.0 60.0 3.05 32.00 42.00 SOGX 060304-W ICP 155 MNC 270-135 A32-160-06-5D 27.00 16.00 135.0 167.0 60.0 3.10 32.00 42.00 SOGX 060304-W ICP 160 MNC 280-140 A32-170-06-5D 28.00 17.00 140.0 171.0 60.0 3.25 32.00 42.00 SOGX 060304-W ICP 170 MNC 290-145 A32-160-07-5D 29.00 16.00 145.0 177.0 60.0 3.10 32.00 42.00 SOGX 070305-W ICP 160 MNC 295-148 A32-165-07-5D 29.50 16.50 148.0 180.0 60.0 3.20 32.00 42.00 SOGX 070305-W ICP 165 MNC 300-150 A32-165-07-5D 30.00 16.50 150.0 183.0 60.0 3.20 32.00 42.00 SOGX 070305-W ICP 165 MNC 310-155 A32-175-07-5D 31.00 17.50 155.0 190.0 60.0 3.35 32.00 42.00 SOGX 070305-W ICP 175 MNC 320-160 A32-185-07-5D 32.00 18.50 160.0 195.0 60.0 3.50 32.00 42.00 SOGX 070305-W ICP 185 INDEXABLE DRILLS MNC 330-165 A32-175-09-5D 33.00 17.50 165.0 200.0 60.0 3.65 32.00 42.00 SOGT 09T306-W ICP 175 MNC 340-170 A32-180-09-5D 34.00 18.00 170.0 205.0 60.0 3.70 32.00 42.00 SOGT 09T306-W ICP 180 MNC 350-175 A32-189-09-5D 35.00 18.90 175.0 210.0 60.0 3.85 32.00 42.00 SOGT 09T306-W ICP 189 MNC 360-180 A32-190-10-5D 36.00 19.00 180.0 215.0 60.0 3.85 32.00 42.00 SOGT 100408-W ICP 190 MNC 370-185 A32-200-10-5D 37.00 20.00 185.0 220.0 60.0 4.00 32.00 42.00 SOGT 100408-W ICP 200 MNC 375-188 A32-205-10-5D 37.50 20.50 188.0 223.0 60.0 4.10 32.00 42.00 SOGT 100408-W ICP 205 MNC 380-190 A40-209-10-5D 38.00 20.90 190.0 227.0 68.0 4.15 40.00 50.00 SOGT 100408-W ICP 209 MNC 390-195 A40-215-10-5D 39.00 21.50 195.0 233.0 68.0 4.25 40.00 50.00 SOGT 100408-W ICP 215 MNC 400-200 A40-225-10-5D 40.00 22.50 200.0 240.0 68.0 4.40 40.00 50.00 SOGT 100408-W ICP 225 MNC 405-203 A40-235-10-5D 40.50 23.50 203.0 243.0 68.0 4.55 40.00 50.00 SOGT 100408-W ICP 235 MNC 410-205 A40-239-10-5D 41.00 23.90 205.0 245.0 68.0 4.65 40.00 50.00 SOGT 100408-W ICP 239 MNC 420-210 A40-249-10-5D 42.00 24.90 210.0 250.0 68.0 4.75 40.00 50.00 SOGT 100408-W ICP 249 MNC 430-215 A40-259-10-5D 43.00 25.90 215.0 258.0 68.0 5.00 40.00 50.00 SOGT 100408-W ICP 259 MNC 440-220 A40-210-12-5D 44.00 21.00 220.0 259.0 68.0 5.15 40.00 50.00 SOGT 120408-W ICP 210 MNC 450-225 A40-219-12-5D 45.00 21.90 225.0 264.0 68.0 5.35 40.00 50.00 SOGT 120408-W ICP 219 MNC 460-230 A40-229-12-5D 46.00 22.90 230.0 269.0 68.0 5.50 40.00 50.00 SOGT 120408-W ICP 229 MNC 470-235 A40-239-12-5D 47.00 23.90 235.0 275.0 68.0 5.65 40.00 50.00 SOGT 120408-W ICP 239 MNC 480-240 A40-249-12-5D 48.00 24.90 240.0 279.0 68.0 7.75 40.00 50.00 SOGT 120408-W ICP 249 MNC 490-245 A40-259-12-5D 49.00 25.90 245.0 286.0 68.0 6.00 40.00 50.00 SOGT 120408-W ICP 259 MNC 500-250 A40-269-12-5D 50.00 26.90 250.0 291.0 68.0 6.10 40.00 50.00 SOGT 120408-W ICP 269 • Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions • Intermediate sizes are available on request • For user guide and cutting conditions, see pages 490, 498 (1) Outer insert (2) Central insert For inserts, see pages: HCP-IQ (483) • ICP (484) • SOGT-W (489) • SOGX-W (489) • ICG (487) Spare Parts Designation MNC 260-130 A32-150-06-5D SR 34-508/L T-7/51 K MNC MULTI MNC 265-132 A32-155-06-5D SR 34-508/L T-7/51 K MNC MULTI MNC 270-135 A32-160-06-5D SR 34-508/L T-7/51 K MNC MULTI MNC 280-140 A32-170-06-5D SR 34-508/L T-7/51 K MNC MULTI MNC 290-145 A32-160-07-5D SR 14-560 T-8/53 K MNC MULTI MNC 295-148 A32-165-07-5D SR 14-560 T-8/53 K MNC MULTI MNC 300-150 A32-165-07-5D SR 14-560 T-8/53 K MNC MULTI MNC 310-155 A32-175-07-5D SR 14-560 T-8/53 K MNC MULTI MNC 320-160 A32-185-07-5D SR 14-560 T-8/53 K MNC MULTI MNC 330-165 A32-175-09-5D SR 34-506 BLD T09/M7-SW4 SW4-SD K MNC MULTI MNC 340-170 A32-180-09-5D SR 34-506 BLD T09/M7-SW4 SW4-SD K MNC MULTI MNC 350-175 A32-189-09-5D SR 34-506 BLD T09/M7-SW4 SW4-SD K MNC MULTI MNC 360-180 A32-190-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 370-185 A32-200-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 375-188 A32-205-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 380-190 A40-209-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 390-195 A40-215-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 400-200 A40-225-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 405-203 A40-235-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 410-205 A40-239-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 420-210 A40-249-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 430-215 A40-259-10-5D SR 14-571 BLD T10/S7 SW6-SD K MNC MULTI MNC 440-220 A40-210-12-5D SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI MNC 450-225 A40-219-12-5D SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI MNC 460-230 A40-229-12-5D SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI MNC 470-235 A40-239-12-5D SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI MNC 480-240 A40-249-12-5D SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI MNC 490-245 A40-259-12-5D SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI MNC 500-250 A40-269-12-5D SR 14-544/S BLD T15/S7 SW6-SD K MNC MULTI 488 ISCAR
