Каталог Iscar вращающийся инструмент 2017 - страница 493

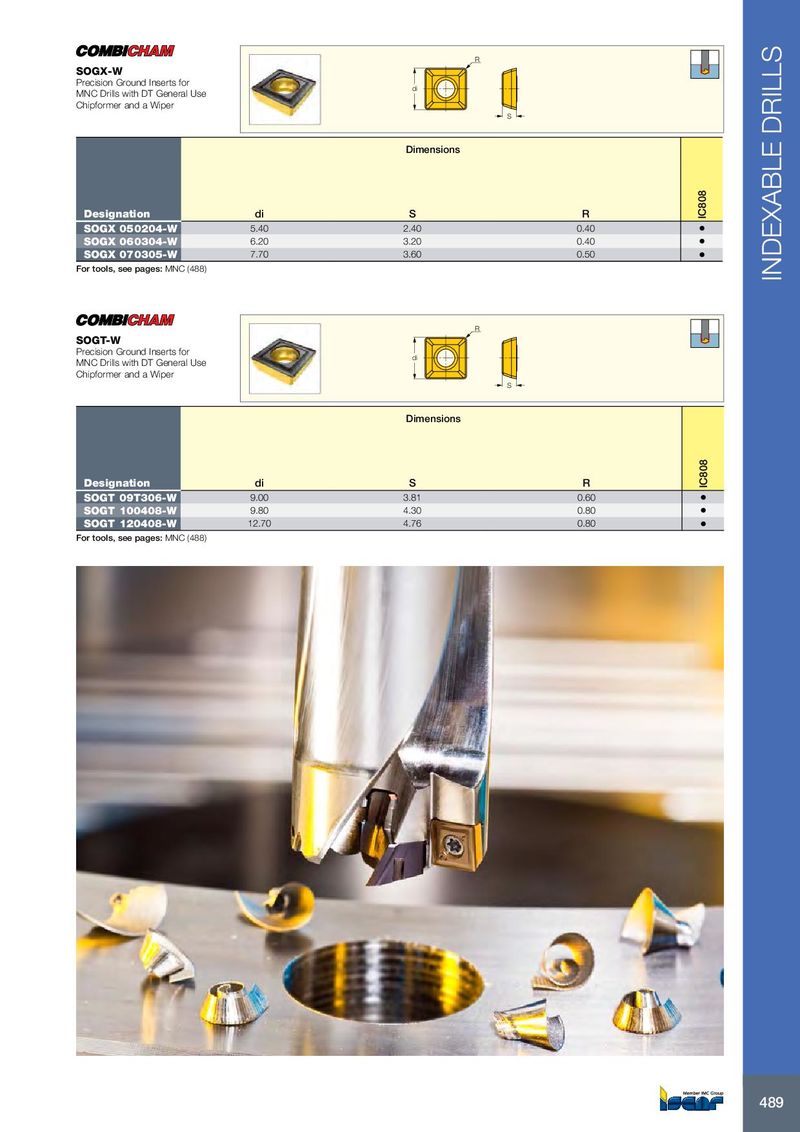

R SOGX-W Precision Ground Inserts for di MNC Drills with DT General Use Chipformer and a Wiper S Dimensions Designation di S R IC808 SOGX 050204-W 5.40 2.40 0.40 • SOGX 060304-W 6.20 3.20 0.40 • SOGX 070305-W 7.70 3.60 0.50 • For tools, see pages: MNC (488) INDEXABLE DRILLS R SOGT-W Precision Ground Inserts for di MNC Drills with DT General Use Chipformer and a Wiper S Dimensions Designation di S R IC808 SOGT 09T306-W 9.00 3.81 0.60 • SOGT 100408-W 9.80 4.30 0.80 • SOGT 120408-W 12.70 4.76 0.80 • For tools, see pages: MNC (488) 489
