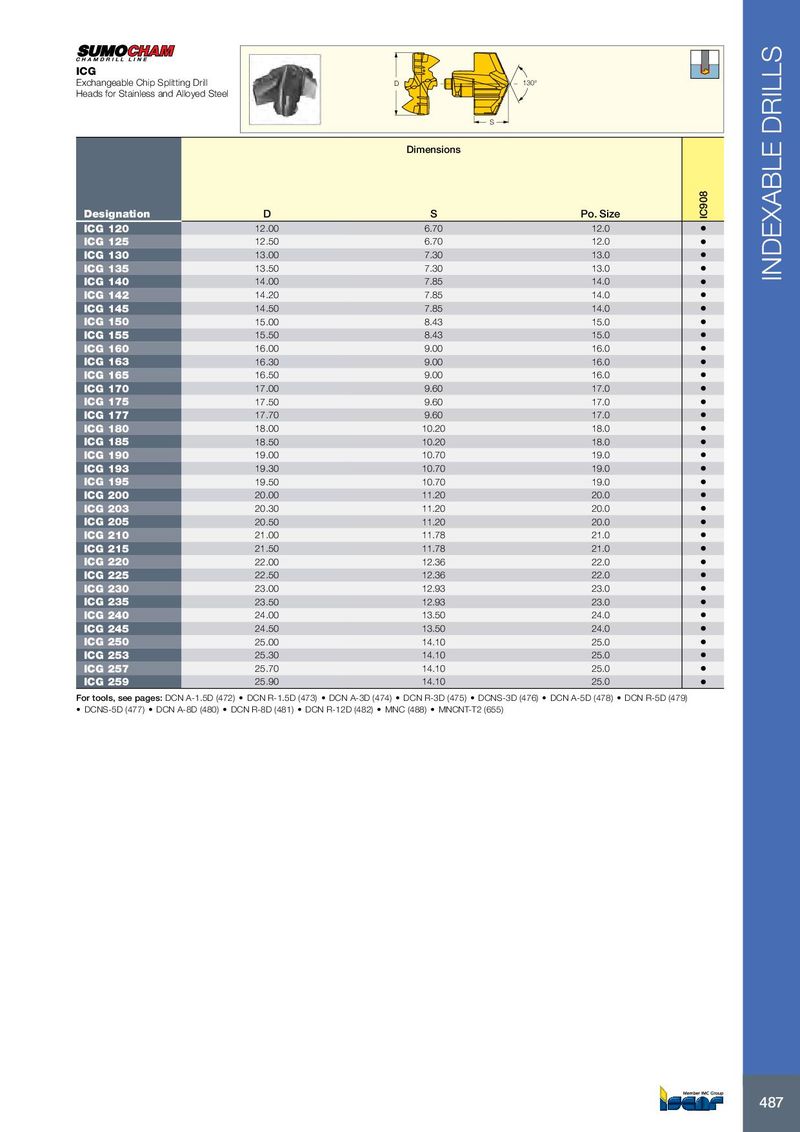

Каталог Iscar вращающийся инструмент 2017 - страница 491

ICG Exchangeable Chip Splitting Drill D 130° Heads for Stainless and Alloyed Steel S Dimensions Designation D S Po. Size IC908 ICG 120 12.00 6.70 12.0 • ICG 125 12.50 6.70 12.0 • ICG 130 13.00 7.30 13.0 • ICG 135 13.50 7.30 13.0 • INDEXABLE DRILLS ICG 140 14.00 7.85 14.0 • ICG 142 14.20 7.85 14.0 • ICG 145 14.50 7.85 14.0 • ICG 150 15.00 8.43 15.0 • ICG 155 15.50 8.43 15.0 • ICG 160 16.00 9.00 16.0 • ICG 163 16.30 9.00 16.0 • ICG 165 16.50 9.00 16.0 • ICG 170 17.00 9.60 17.0 • ICG 175 17.50 9.60 17.0 • ICG 177 17.70 9.60 17.0 • ICG 180 18.00 10.20 18.0 • ICG 185 18.50 10.20 18.0 • ICG 190 19.00 10.70 19.0 • ICG 193 19.30 10.70 19.0 • ICG 195 19.50 10.70 19.0 • ICG 200 20.00 11.20 20.0 • ICG 203 20.30 11.20 20.0 • ICG 205 20.50 11.20 20.0 • ICG 210 21.00 11.78 21.0 • ICG 215 21.50 11.78 21.0 • ICG 220 22.00 12.36 22.0 • ICG 225 22.50 12.36 22.0 • ICG 230 23.00 12.93 23.0 • ICG 235 23.50 12.93 23.0 • ICG 240 24.00 13.50 24.0 • ICG 245 24.50 13.50 24.0 • ICG 250 25.00 14.10 25.0 • ICG 253 25.30 14.10 25.0 • ICG 257 25.70 14.10 25.0 • ICG 259 25.90 14.10 25.0 • For tools, see pages: DCN A-1.5D (472) • DCN R-1.5D (473) • DCN A-3D (474) • DCN R-3D (475) • DCNS-3D (476) • DCN A-5D (478) • DCN R-5D (479) • DCNS-5D (477) • DCN A-8D (480) • DCN R-8D (481) • DCN R-12D (482) • MNC (488) • MNCNT-T2 (655) 487
