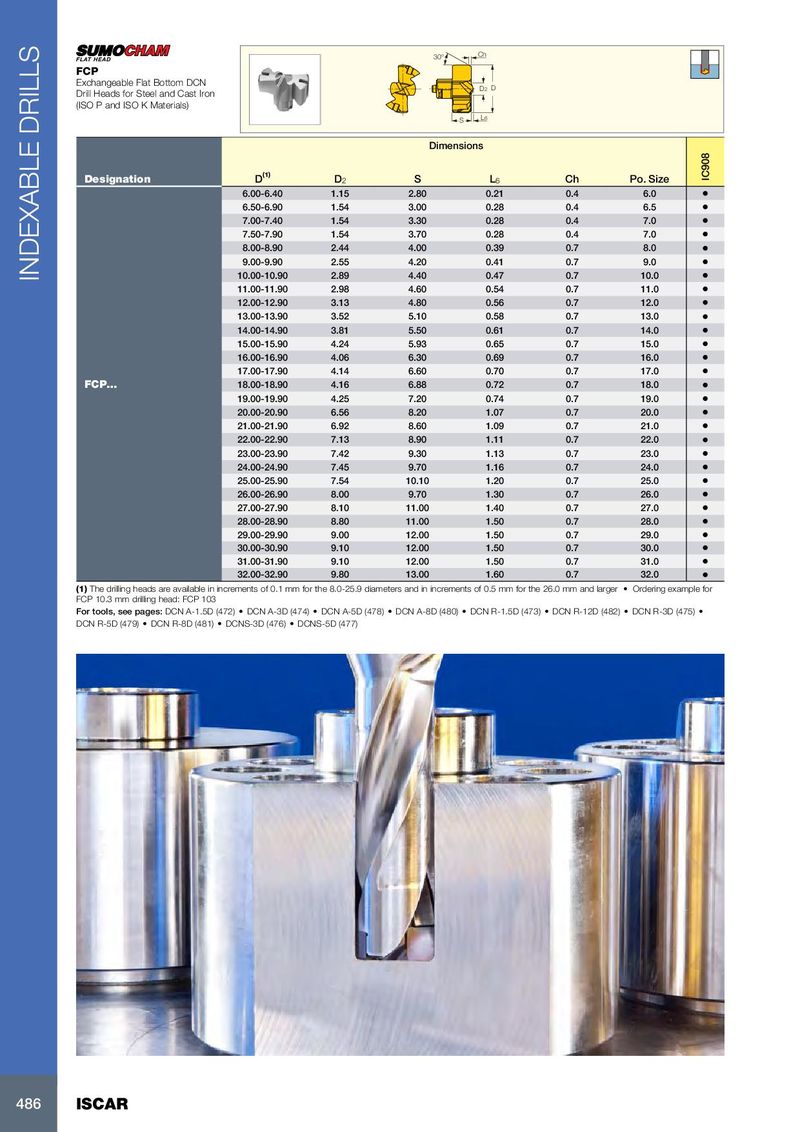

30° Ch FCP Exchangeable Flat Bottom DCN D2 D Drill Heads for Steel and Cast Iron (ISO P and ISO K Materials) S L6 Dimensions (1) Designation D D 2 S L 6 Ch Po. Size IC908 6.00-6.40 1.15 2.80 0.21 0.4 6.0 • 6.50-6.90 1.54 3.00 0.28 0.4 6.5 • 7.00-7.40 1.54 3.30 0.28 0.4 7.0 • 7.50-7.90 1.54 3.70 0.28 0.4 7.0 • 8.00-8.90 2.44 4.00 0.39 0.7 8.0 • 9.00-9.90 2.55 4.20 0.41 0.7 9.0 • INDEXABLE DRILLS 10.00-10.90 2.89 4.40 0.47 0.7 10.0 • 11.00-11.90 2.98 4.60 0.54 0.7 11.0 • 12.00-12.90 3.13 4.80 0.56 0.7 12.0 • 13.00-13.90 3.52 5.10 0.58 0.7 13.0 • 14.00-14.90 3.81 5.50 0.61 0.7 14.0 • 15.00-15.90 4.24 5.93 0.65 0.7 15.0 • 16.00-16.90 4.06 6.30 0.69 0.7 16.0 • 17.00-17.90 4.14 6.60 0.70 0.7 17.0 • FCP… 18.00-18.90 4.16 6.88 0.72 0.7 18.0 • 19.00-19.90 4.25 7.20 0.74 0.7 19.0 • 20.00-20.90 6.56 8.20 1.07 0.7 20.0 • 21.00-21.90 6.92 8.60 1.09 0.7 21.0 • 22.00-22.90 7.13 8.90 1.11 0.7 22.0 • 23.00-23.90 7.42 9.30 1.13 0.7 23.0 • 24.00-24.90 7.45 9.70 1.16 0.7 24.0 • 25.00-25.90 7.54 10.10 1.20 0.7 25.0 • 26.00-26.90 8.00 9.70 1.30 0.7 26.0 • 27.00-27.90 8.10 11.00 1.40 0.7 27.0 • 28.00-28.90 8.80 11.00 1.50 0.7 28.0 • 29.00-29.90 9.00 12.00 1.50 0.7 29.0 • 30.00-30.90 9.10 12.00 1.50 0.7 30.0 • 31.00-31.90 9.10 12.00 1.50 0.7 31.0 • 32.00-32.90 9.80 13.00 1.60 0.7 32.0 • (1) The drilling heads are available in increments of 0.1 mm for the 8.0-25.9 diameters and in increments of 0.5 mm for the 26.0 mm and larger • Ordering example for FCP 10.3 mm drilling head: FCP 103 For tools, see pages: DCN A-1.5D (472) • DCN A-3D (474) • DCN A-5D (478) • DCN A-8D (480) • DCN R-1.5D (473) • DCN R-12D (482) • DCN R-3D (475) • DCN R-5D (479) • DCN R-8D (481) • DCNS-3D (476) • DCNS-5D (477) 486 ISCAR
