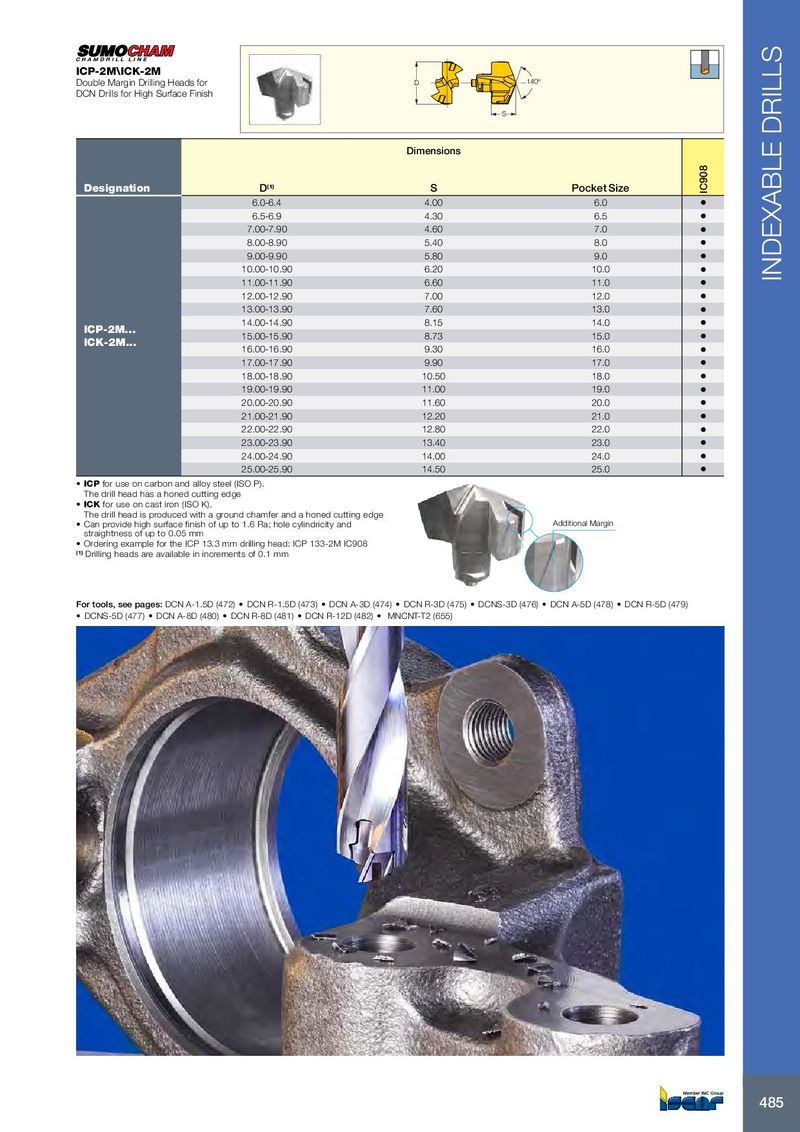

ICP-2M\ICK-2M Double Margin Drilling Heads for D 140º DCN Drills for High Surface Finish S Dimensions Designation D (1) S Pocket Size IC908 6.0-6.4 4.00 6.0 • 6.5-6.9 4.30 6.5 • 7.00-7.90 4.60 7.0 • 8.00-8.90 5.40 8.0 • 9.00-9.90 5.80 9.0 • 10.00-10.90 6.20 10.0 • INDEXABLE DRILLS 11.00-11.90 6.60 11.0 • 12.00-12.90 7.00 12.0 • 13.00-13.90 7.60 13.0 • 14.00-14.90 8.15 14.0 • ICP-2M... 15.00-15.90 8.73 15.0 • ICK-2M... 16.00-16.90 9.30 16.0 • 17.00-17.90 9.90 17.0 • 18.00-18.90 10.50 18.0 • 19.00-19.90 11.00 19.0 • 20.00-20.90 11.60 20.0 • 21.00-21.90 12.20 21.0 • 22.00-22.90 12.80 22.0 • 23.00-23.90 13.40 23.0 • 24.00-24.90 14.00 24.0 • 25.00-25.90 14.50 25.0 • • ICP for use on carbon and alloy steel (ISO P). The drill head has a honed cutting edge • ICK for use on cast iron (ISO K). The drill head is produced with a ground chamfer and a honed cutting edge • Can provide high surface finish of up to 1.6 Ra; hole cylindricity and Additional Margin straightness of up to 0.05 mm • Ordering example for the ICP 13.3 mm drilling head: ICP 133-2M IC908 (1) Drilling heads are available in increments of 0.1 mm For tools, see pages: DCN A-1.5D (472) • DCN R-1.5D (473) • DCN A-3D (474) • DCN R-3D (475) • DCNS-3D (476) • DCN A-5D (478) • DCN R-5D (479) • DCNS-5D (477) • DCN A-8D (480) • DCN R-8D (481) • DCN R-12D (482) • MNCNT-T2 (655) 485
