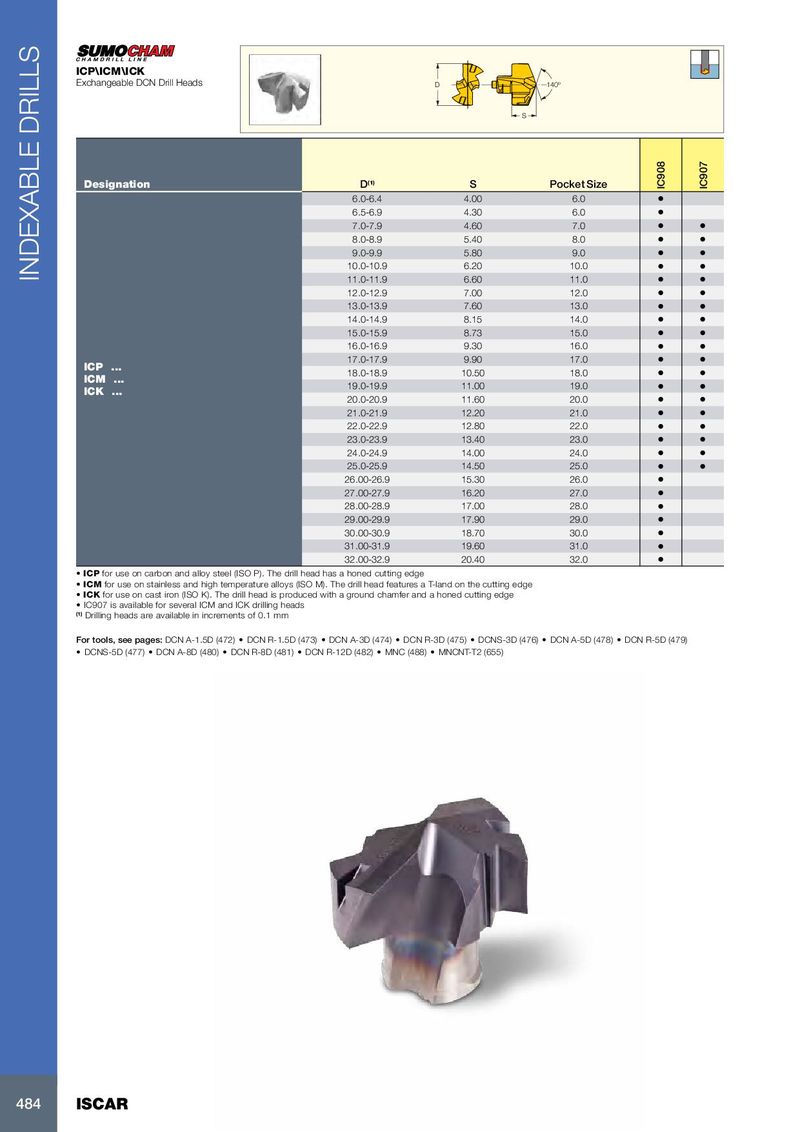

ICP\ICM\ICK Exchangeable DCN Drill Heads D 140º S Designation D (1) S Pocket Size IC908 IC907 6.0-6.4 4.00 6.0 • 6.5-6.9 4.30 6.0 • 7.0-7.9 4.60 7.0 • • 8.0-8.9 5.40 8.0 • • 9.0-9.9 5.80 9.0 • • 10.0-10.9 6.20 10.0 • • INDEXABLE DRILLS 11.0-11.9 6.60 11.0 • • 12.0-12.9 7.00 12.0 • • 13.0-13.9 7.60 13.0 • • 14.0-14.9 8.15 14.0 • • 15.0-15.9 8.73 15.0 • • 16.0-16.9 9.30 16.0 • • 17.0-17.9 9.90 17.0 • • ICP ... 18.0-18.9 10.50 18.0 • • ICM ... 19.0-19.9 11.00 19.0 • • ICK ... 20.0-20.9 11.60 20.0 • • 21.0-21.9 12.20 21.0 • • 22.0-22.9 12.80 22.0 • • 23.0-23.9 13.40 23.0 • • 24.0-24.9 14.00 24.0 • • 25.0-25.9 14.50 25.0 • • 26.00-26.9 15.30 26.0 • 27.00-27.9 16.20 27.0 • 28.00-28.9 17.00 28.0 • 29.00-29.9 17.90 29.0 • 30.00-30.9 18.70 30.0 • 31.00-31.9 19.60 31.0 • 32.00-32.9 20.40 32.0 • • ICP for use on carbon and alloy steel (ISO P). The drill head has a honed cutting edge • ICM for use on stainless and high temperature alloys (ISO M). The drill head features a T-land on the cutting edge • ICK for use on cast iron (ISO K). The drill head is produced with a ground chamfer and a honed cutting edge • IC907 is available for several ICM and ICK drilling heads (1) Drilling heads are available in increments of 0.1 mm For tools, see pages: DCN A-1.5D (472) • DCN R-1.5D (473) • DCN A-3D (474) • DCN R-3D (475) • DCNS-3D (476) • DCN A-5D (478) • DCN R-5D (479) • DCNS-5D (477) • DCN A-8D (480) • DCN R-8D (481) • DCN R-12D (482) • MNC (488) • MNCNT-T2 (655) 484 ISCAR
