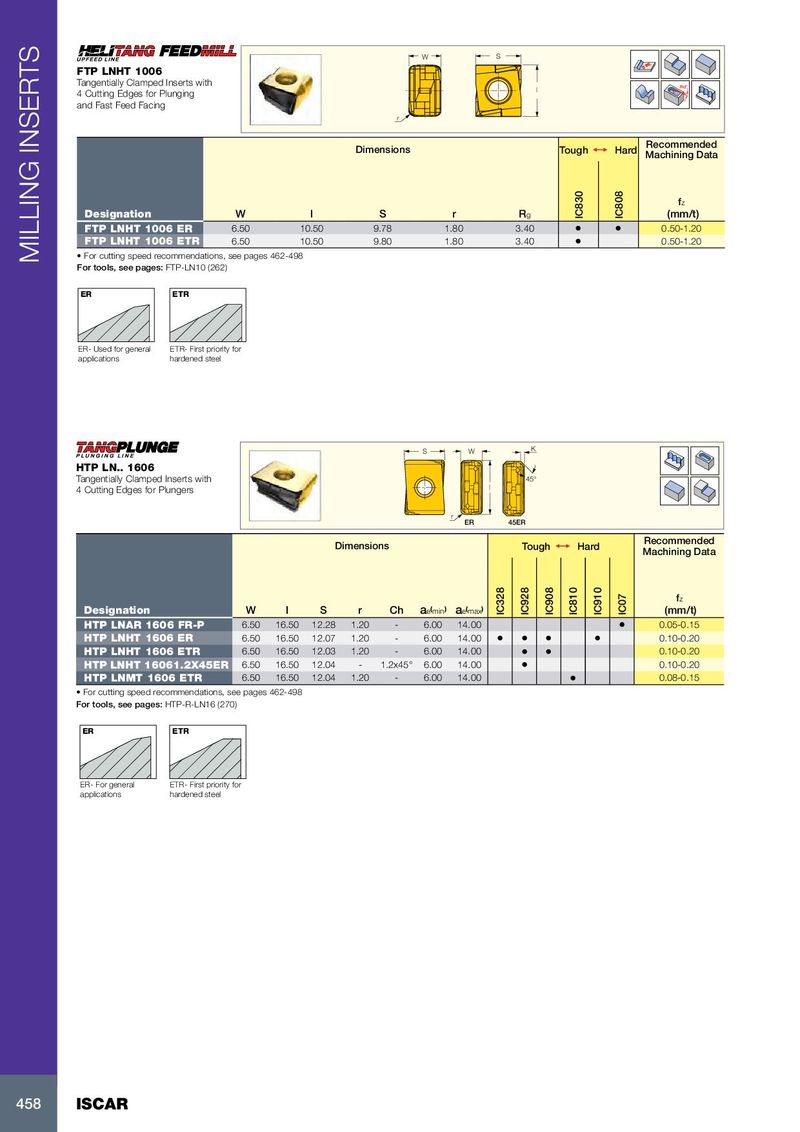

W S FTP LNHT 1006 Tangentially Clamped Inserts with Rd° l 4 Cutting Edges for Plunging and Fast Feed Facing r Recommended Dimensions Tough 1  Hard Machining Data f z Designation W l S r R g IC830 IC808 (mm/t) FTP LNHT 1006 ER 6.50 10.50 9.78 1.80 3.40 • • 0.50-1.20 FTP LNHT 1006 ETR 6.50 10.50 9.80 1.80 3.40 • 0.50-1.20 • For cutting speed recommendations, see pages 462-498 MILLING INSERTS For tools, see pages: FTP-LN10 (262) ER ETR ER- Used for general ETR- First priority for applications hardened steel S W K HTP LN.. 1606 Tangentially Clamped Inserts with 45° 4 Cutting Edges for Plungers l r ER 45ER Recommended Dimensions Tough 1  Hard Machining Data f z Designation W l S r Ch a e ( min ) a e ( max ) IC328 IC928 IC908 IC810 IC910 IC07 (mm/t) HTP LNAR 1606 FR-P 6.50 16.50 12.28 1.20 - 6.00 14.00 • 0.05-0.15 HTP LNHT 1606 ER 6.50 16.50 12.07 1.20 - 6.00 14.00 • • • • 0.10-0.20 HTP LNHT 1606 ETR 6.50 16.50 12.03 1.20 - 6.00 14.00 • • 0.10-0.20 HTP LNHT 16061.2X45ER 6.50 16.50 12.04 - 1.2x45° 6.00 14.00 • 0.10-0.20 HTP LNMT 1606 ETR 6.50 16.50 12.04 1.20 - 6.00 14.00 • 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HTP-R-LN16 (270) ER ETR ER- For general ETR- First priority for applications hardened steel 458 ISCAR
