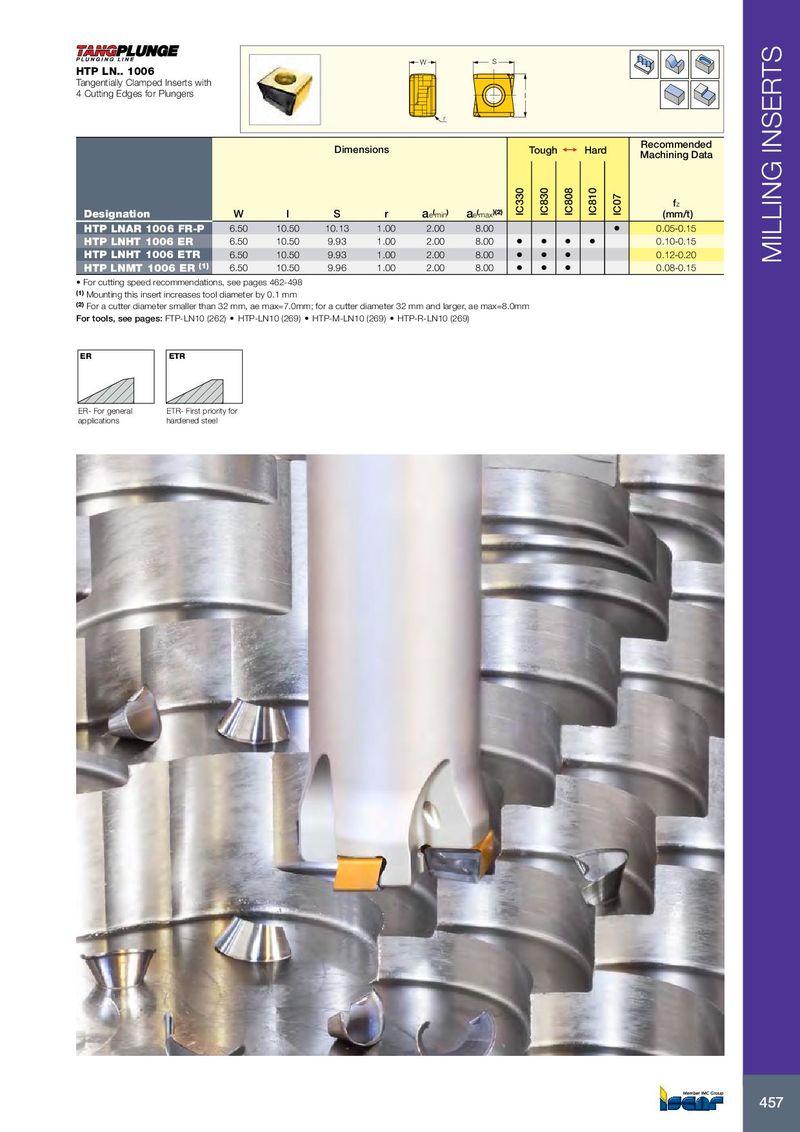

W S HTP LN.. 1006 Tangentially Clamped Inserts with 4 Cutting Edges for Plungers I r Recommended Dimensions Tough 1  Hard Machining Data f z Designation W l S r a e ( min ) a e ( max )(2) IC330 IC830 IC808 IC810 IC07 (mm/t) HTP LNAR 1006 FR-P 6.50 10.50 10.13 1.00 2.00 8.00 • 0.05-0.15 HTP LNHT 1006 ER 6.50 10.50 9.93 1.00 2.00 8.00 • • • • 0.10-0.15 HTP LNHT 1006 ETR 6.50 10.50 9.93 1.00 2.00 8.00 • • • 0.12-0.20 MILLING INSERTS HTP LNMT 1006 ER (1) 6.50 10.50 9.96 1.00 2.00 8.00 • • • 0.08-0.15 • For cutting speed recommendations, see pages 462-498 (1) Mounting this insert increases tool diameter by 0.1 mm (2) For a cutter diameter smaller than 32 mm, ae max=7.0mm; for a cutter diameter 32 mm and larger, ae max=8.0mm For tools, see pages: FTP-LN10 (262) • HTP-LN10 (269) • HTP-M-LN10 (269) • HTP-R-LN10 (269) ER ETR ER- For general ETR- First priority for applications hardened steel 457
