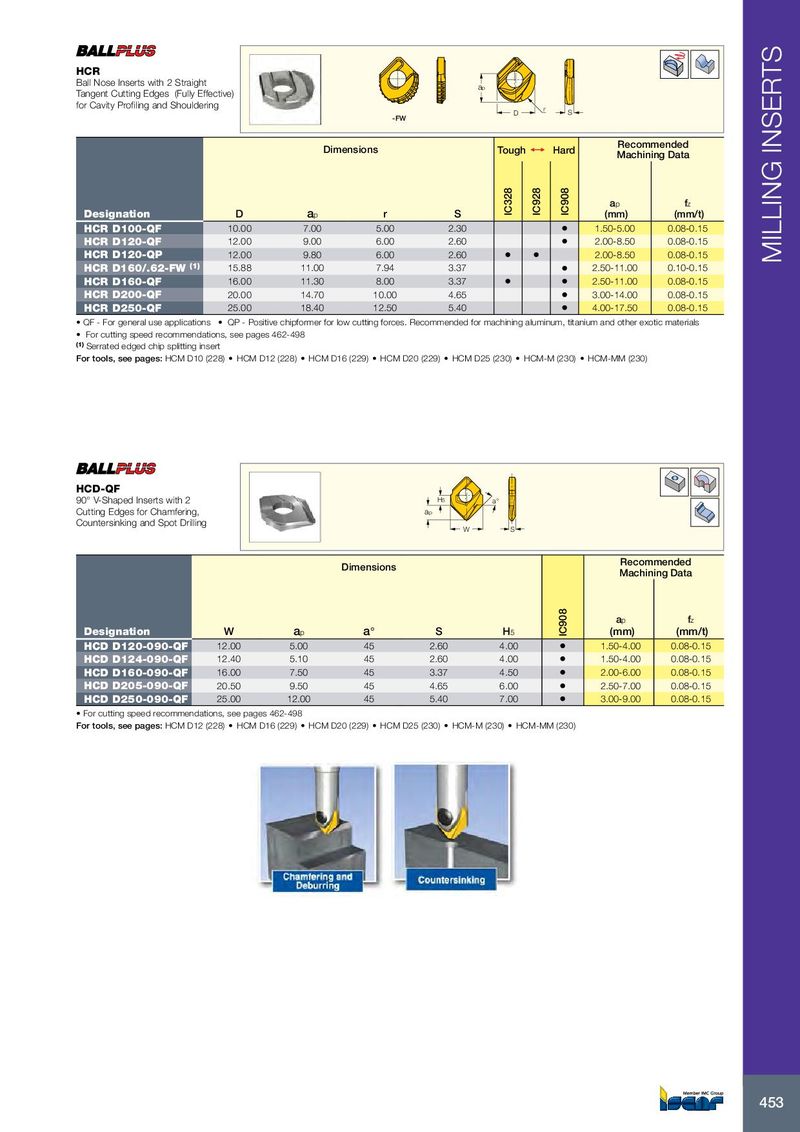

HCR Ball Nose Inserts with 2 Straight ap Tangent Cutting Edges (Fully Effective) for Cavity Profiling and Shouldering D r S -FW Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation D a p r S IC328 IC928 IC908 (mm) (mm/t) HCR D100-QF 10.00 7.00 5.00 2.30 • 1.50-5.00 0.08-0.15 HCR D120-QF 12.00 9.00 6.00 2.60 • 2.00-8.50 0.08-0.15 HCR D120-QP 12.00 9.80 6.00 2.60 • • 2.00-8.50 0.08-0.15 MILLING INSERTS HCR D160/.62-FW (1) 15.88 11.00 7.94 3.37 • 2.50-11.00 0.10-0.15 HCR D160-QF 16.00 11.30 8.00 3.37 • • 2.50-11.00 0.08-0.15 HCR D200-QF 20.00 14.70 10.00 4.65 • 3.00-14.00 0.08-0.15 HCR D250-QF 25.00 18.40 12.50 5.40 • 4.00-17.50 0.08-0.15 • QF - For general use applications • QP - Positive chipformer for low cutting forces. Recommended for machining aluminum, titanium and other exotic materials • For cutting speed recommendations, see pages 462-498 (1) Serrated edged chip splitting insert For tools, see pages: HCM D10 (228) • HCM D12 (228) • HCM D16 (229) • HCM D20 (229) • HCM D25 (230) • HCM-M (230) • HCM-MM (230) HCD-QF 90° V-Shaped Inserts with 2 H 5 a° Cutting Edges for Chamfering, ap Countersinking and Spot Drilling W S Recommended Dimensions Machining Data a p f z Designation W a p a° S H 5 IC908 (mm) (mm/t) HCD D120-090-QF 12.00 5.00 45 2.60 4.00 • 1.50-4.00 0.08-0.15 HCD D124-090-QF 12.40 5.10 45 2.60 4.00 • 1.50-4.00 0.08-0.15 HCD D160-090-QF 16.00 7.50 45 3.37 4.50 • 2.00-6.00 0.08-0.15 HCD D205-090-QF 20.50 9.50 45 4.65 6.00 • 2.50-7.00 0.08-0.15 HCD D250-090-QF 25.00 12.00 45 5.40 7.00 • 3.00-9.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HCM D12 (228) • HCM D16 (229) • HCM D20 (229) • HCM D25 (230) • HCM-M (230) • HCM-MM (230) 453
