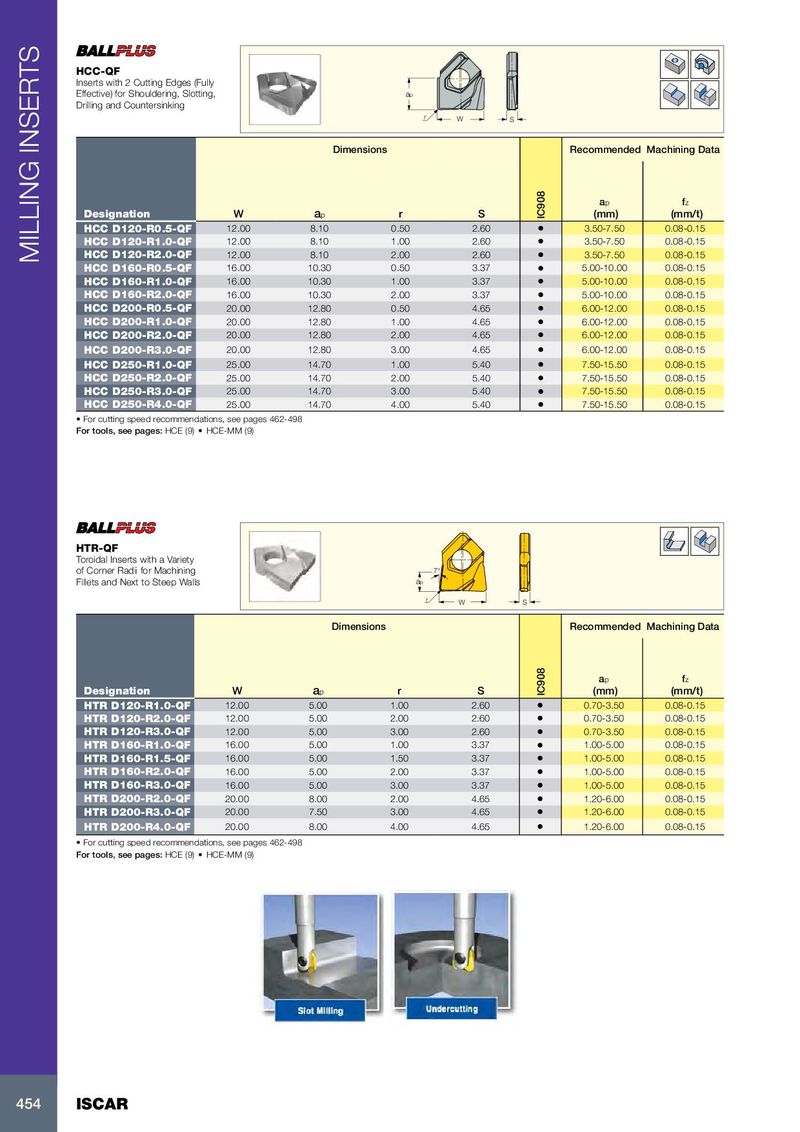

Каталог Iscar вращающийся инструмент 2017 - страница 458

HCC-QF Inserts with 2 Cutting Edges (Fully Effective) for Shouldering, Slotting, ap Drilling and Countersinking r W S Dimensions Recommended Machining Data a p f z Designation W a p r S IC908 (mm) (mm/t) HCC D120-R0.5-QF 12.00 8.10 0.50 2.60 • 3.50-7.50 0.08-0.15 HCC D120-R1.0-QF 12.00 8.10 1.00 2.60 • 3.50-7.50 0.08-0.15 HCC D120-R2.0-QF 12.00 8.10 2.00 2.60 MILLING INSERTS • 3.50-7.50 0.08-0.15 HCC D160-R0.5-QF 16.00 10.30 0.50 3.37 • 5.00-10.00 0.08-0.15 HCC D160-R1.0-QF 16.00 10.30 1.00 3.37 • 5.00-10.00 0.08-0.15 HCC D160-R2.0-QF 16.00 10.30 2.00 3.37 • 5.00-10.00 0.08-0.15 HCC D200-R0.5-QF 20.00 12.80 0.50 4.65 • 6.00-12.00 0.08-0.15 HCC D200-R1.0-QF 20.00 12.80 1.00 4.65 • 6.00-12.00 0.08-0.15 HCC D200-R2.0-QF 20.00 12.80 2.00 4.65 • 6.00-12.00 0.08-0.15 HCC D200-R3.0-QF 20.00 12.80 3.00 4.65 • 6.00-12.00 0.08-0.15 HCC D250-R1.0-QF 25.00 14.70 1.00 5.40 • 7.50-15.50 0.08-0.15 HCC D250-R2.0-QF 25.00 14.70 2.00 5.40 • 7.50-15.50 0.08-0.15 HCC D250-R3.0-QF 25.00 14.70 3.00 5.40 • 7.50-15.50 0.08-0.15 HCC D250-R4.0-QF 25.00 14.70 4.00 5.40 • 7.50-15.50 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HCE (9) • HCE-MM (9) HTR-QF Toroidal Inserts with a Variety of Corner Radii for Machining 7° Fillets and Next to Steep Walls ap r W S Dimensions Recommended Machining Data a p f z Designation W a p r S IC908 (mm) (mm/t) HTR D120-R1.0-QF 12.00 5.00 1.00 2.60 • 0.70-3.50 0.08-0.15 HTR D120-R2.0-QF 12.00 5.00 2.00 2.60 • 0.70-3.50 0.08-0.15 HTR D120-R3.0-QF 12.00 5.00 3.00 2.60 • 0.70-3.50 0.08-0.15 HTR D160-R1.0-QF 16.00 5.00 1.00 3.37 • 1.00-5.00 0.08-0.15 HTR D160-R1.5-QF 16.00 5.00 1.50 3.37 • 1.00-5.00 0.08-0.15 HTR D160-R2.0-QF 16.00 5.00 2.00 3.37 • 1.00-5.00 0.08-0.15 HTR D160-R3.0-QF 16.00 5.00 3.00 3.37 • 1.00-5.00 0.08-0.15 HTR D200-R2.0-QF 20.00 8.00 2.00 4.65 • 1.20-6.00 0.08-0.15 HTR D200-R3.0-QF 20.00 7.50 3.00 4.65 • 1.20-6.00 0.08-0.15 HTR D200-R4.0-QF 20.00 8.00 4.00 4.65 • 1.20-6.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HCE (9) • HCE-MM (9) 454 ISCAR
