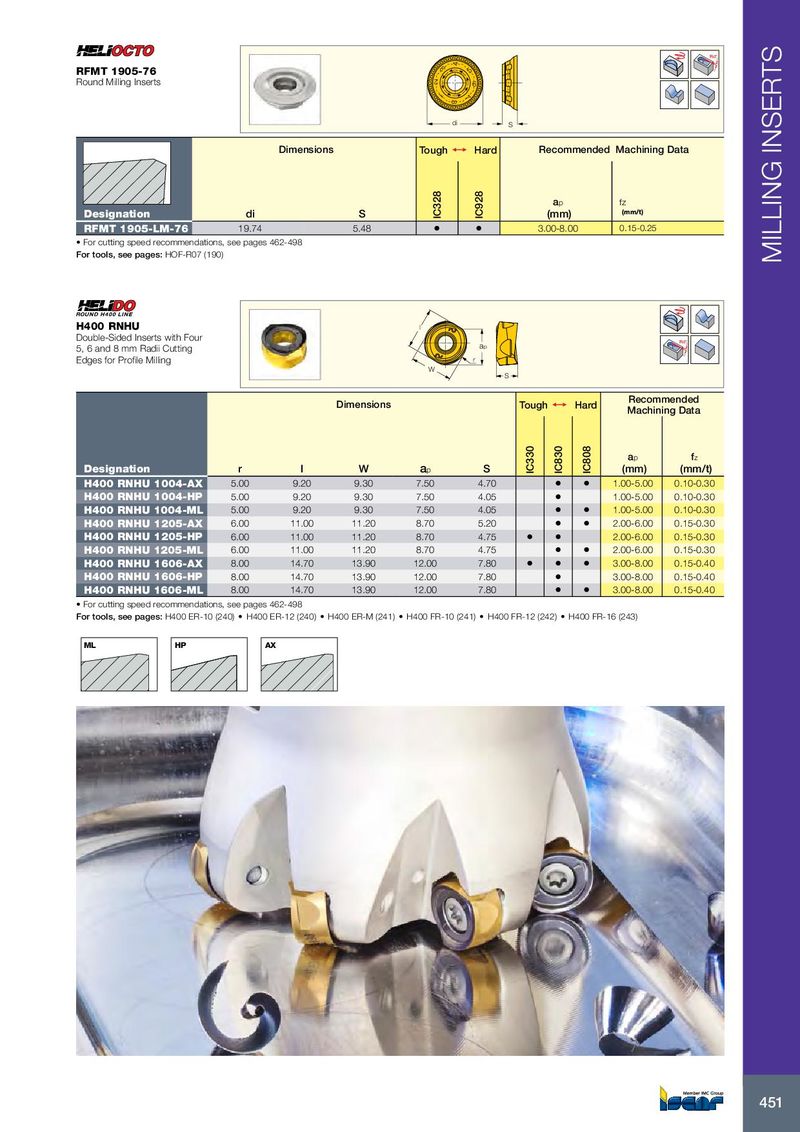

Rd° 3 4 RFMT 1905-76 5 2 Round Milling Inserts 6 1 8 7 di S Dimensions Tough 1  Hard Recommended Machining Data a p fz Designation di S IC328 IC928 (mm) (mm/t) RFMT 1905-LM-76 19.74 5.48 • • 3.00-8.00 0.15-0.25 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HOF-R07 (190) MILLING INSERTS H400 RNHU l Double-Sided Inserts with Four Rd° 5, 6 and 8 mm Radii Cutting ap Edges for Profile Milling r W S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation r l W a p S IC330 IC830 IC808 (mm) (mm/t) H400 RNHU 1004-AX 5.00 9.20 9.30 7.50 4.70 • • 1.00-5.00 0.10-0.30 H400 RNHU 1004-HP 5.00 9.20 9.30 7.50 4.05 • 1.00-5.00 0.10-0.30 H400 RNHU 1004-ML 5.00 9.20 9.30 7.50 4.05 • • 1.00-5.00 0.10-0.30 H400 RNHU 1205-AX 6.00 11.00 11.20 8.70 5.20 • • 2.00-6.00 0.15-0.30 H400 RNHU 1205-HP 6.00 11.00 11.20 8.70 4.75 • • 2.00-6.00 0.15-0.30 H400 RNHU 1205-ML 6.00 11.00 11.20 8.70 4.75 • • 2.00-6.00 0.15-0.30 H400 RNHU 1606-AX 8.00 14.70 13.90 12.00 7.80 • • • 3.00-8.00 0.15-0.40 H400 RNHU 1606-HP 8.00 14.70 13.90 12.00 7.80 • 3.00-8.00 0.15-0.40 H400 RNHU 1606-ML 8.00 14.70 13.90 12.00 7.80 • • 3.00-8.00 0.15-0.40 • For cutting speed recommendations, see pages 462-498 For tools, see pages: H400 ER-10 (240) • H400 ER-12 (240) • H400 ER-M (241) • H400 FR-10 (241) • H400 FR-12 (242) • H400 FR-16 (243) ML HP AX 451
