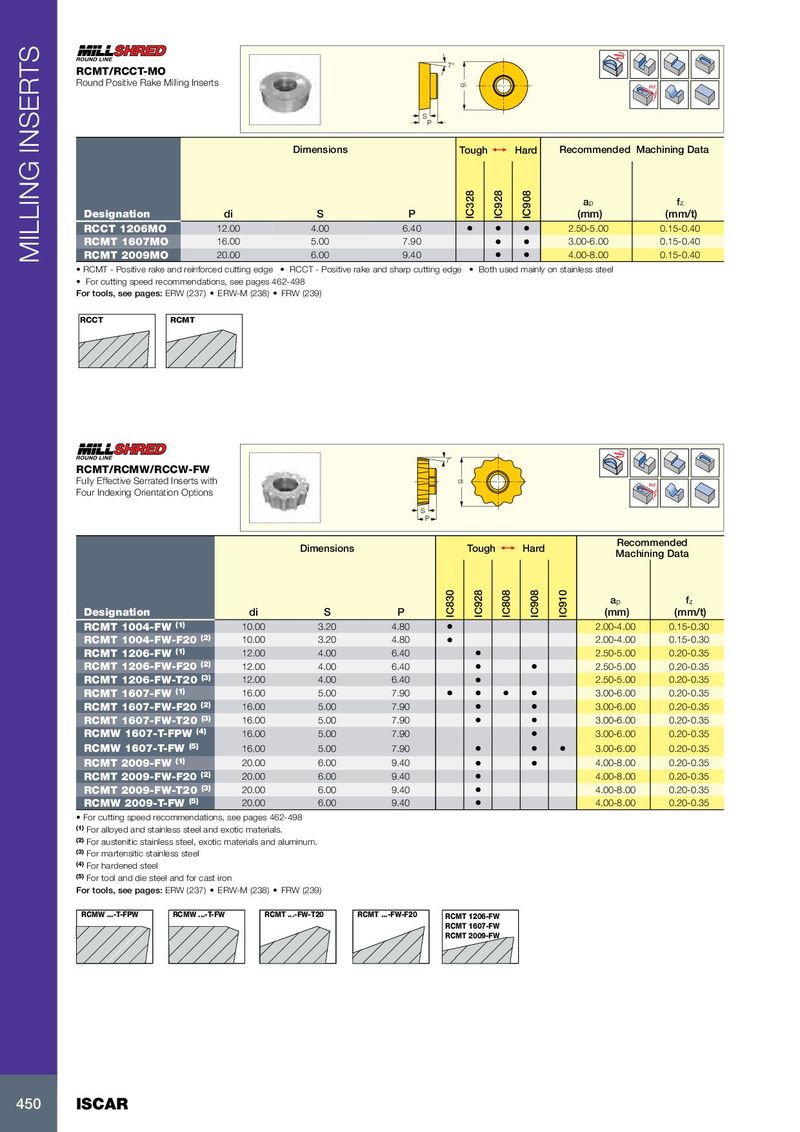

7° RCMT/RCCT-MO Round Positive Rake Milling Inserts di Rd° S P Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation di S P IC328 IC928 IC908 (mm) (mm/t) RCCT 1206MO 12.00 4.00 6.40 • • • 2.50-5.00 0.15-0.40 RCMT 1607MO 16.00 5.00 7.90 • • 3.00-6.00 0.15-0.40 RCMT 2009MO 20.00 6.00 9.40 MILLING INSERTS • • 4.00-8.00 0.15-0.40 • RCMT - Positive rake and reinforced cutting edge • RCCT - Positive rake and sharp cutting edge • Both used mainly on stainless steel • For cutting speed recommendations, see pages 462-498 For tools, see pages: ERW (237) • ERW-M (238) • FRW (239) RCCT RCMT 7˚ RCMT/RCMW/RCCW-FW Fully Effective Serrated Inserts with di Rd° Four Indexing Orientation Options S P Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di S P IC830 IC928 IC808 IC908 IC910 (mm) (mm/t) RCMT 1004-FW (1) 10.00 3.20 4.80 • 2.00-4.00 0.15-0.30 RCMT 1004-FW-F20 (2) 10.00 3.20 4.80 • 2.00-4.00 0.15-0.30 RCMT 1206-FW (1) 12.00 4.00 6.40 • 2.50-5.00 0.20-0.35 RCMT 1206-FW-F20 (2) 12.00 4.00 6.40 • • 2.50-5.00 0.20-0.35 RCMT 1206-FW-T20 (3) 12.00 4.00 6.40 • 2.50-5.00 0.20-0.35 RCMT 1607-FW (1) 16.00 5.00 7.90 • • • • 3.00-6.00 0.20-0.35 RCMT 1607-FW-F20 (2) 16.00 5.00 7.90 • • 3.00-6.00 0.20-0.35 RCMT 1607-FW-T20 (3) 16.00 5.00 7.90 • • 3.00-6.00 0.20-0.35 RCMW 1607-T-FPW (4) 16.00 5.00 7.90 • 3.00-6.00 0.20-0.35 RCMW 1607-T-FW (5) 16.00 5.00 7.90 • • • 3.00-6.00 0.20-0.35 RCMT 2009-FW (1) 20.00 6.00 9.40 • • 4.00-8.00 0.20-0.35 RCMT 2009-FW-F20 (2) 20.00 6.00 9.40 • 4.00-8.00 0.20-0.35 RCMT 2009-FW-T20 (3) 20.00 6.00 9.40 • 4.00-8.00 0.20-0.35 RCMW 2009-T-FW (5) 20.00 6.00 9.40 • 4.00-8.00 0.20-0.35 • For cutting speed recommendations, see pages 462-498 (1) For alloyed and stainless steel and exotic materials. (2) For austenitic stainless steel, exotic materials and aluminum. (3) For martensitic stainless steel (4) For hardened steel (5) For tool and die steel and for cast iron For tools, see pages: ERW (237) • ERW-M (238) • FRW (239) RCMW ...-T-FPW RCMW ...-T-FW RCMT ...-FW-T20 RCMT ...-FW-F20 RCMT 1206-FW RCMT 1607-FW RCMT 2009-FW 450 ISCAR
