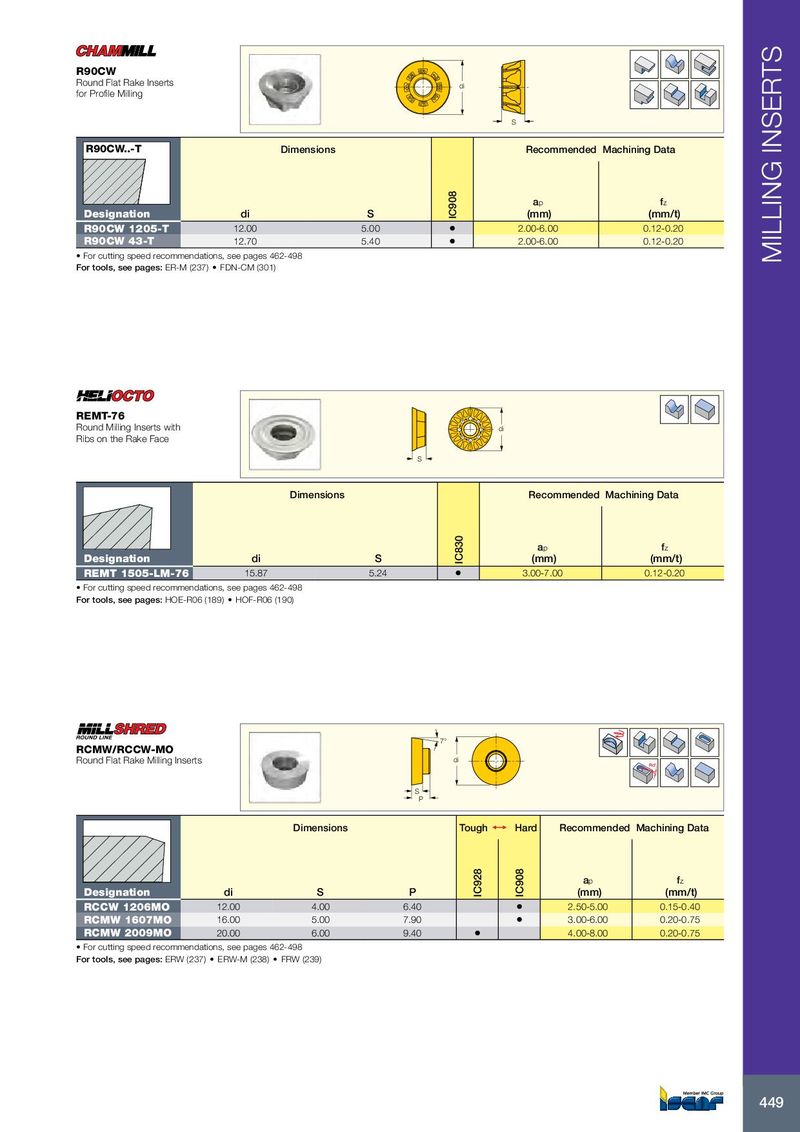

Каталог Iscar вращающийся инструмент 2017 - страница 453

R90CW Round Flat Rake Inserts di for Profile Milling S R90CW..-T Dimensions Recommended Machining Data a p f z Designation di S IC908 (mm) (mm/t) R90CW 1205-T 12.00 5.00 • 2.00-6.00 0.12-0.20 R90CW 43-T 12.70 5.40 • 2.00-6.00 0.12-0.20 • For cutting speed recommendations, see pages 462-498 MILLING INSERTS For tools, see pages: ER-M (237) • FDN-CM (301) REMT-76 8 1 2 Round Milling Inserts with 7 3 di Ribs on the Rake Face 6 5 4 S Dimensions Recommended Machining Data a p f z Designation di S IC830 (mm) (mm/t) REMT 1505-LM-76 15.87 5.24 • 3.00-7.00 0.12-0.20 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HOE-R06 (189) • HOF-R06 (190) 7° RCMW/RCCW-MO Round Flat Rake Milling Inserts di Rd° S P Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation di S P IC928 IC908 (mm) (mm/t) RCCW 1206MO 12.00 4.00 6.40 • 2.50-5.00 0.15-0.40 RCMW 1607MO 16.00 5.00 7.90 • 3.00-6.00 0.20-0.75 RCMW 2009MO 20.00 6.00 9.40 • 4.00-8.00 0.20-0.75 • For cutting speed recommendations, see pages 462-498 For tools, see pages: ERW (237) • ERW-M (238) • FRW (239) 449
