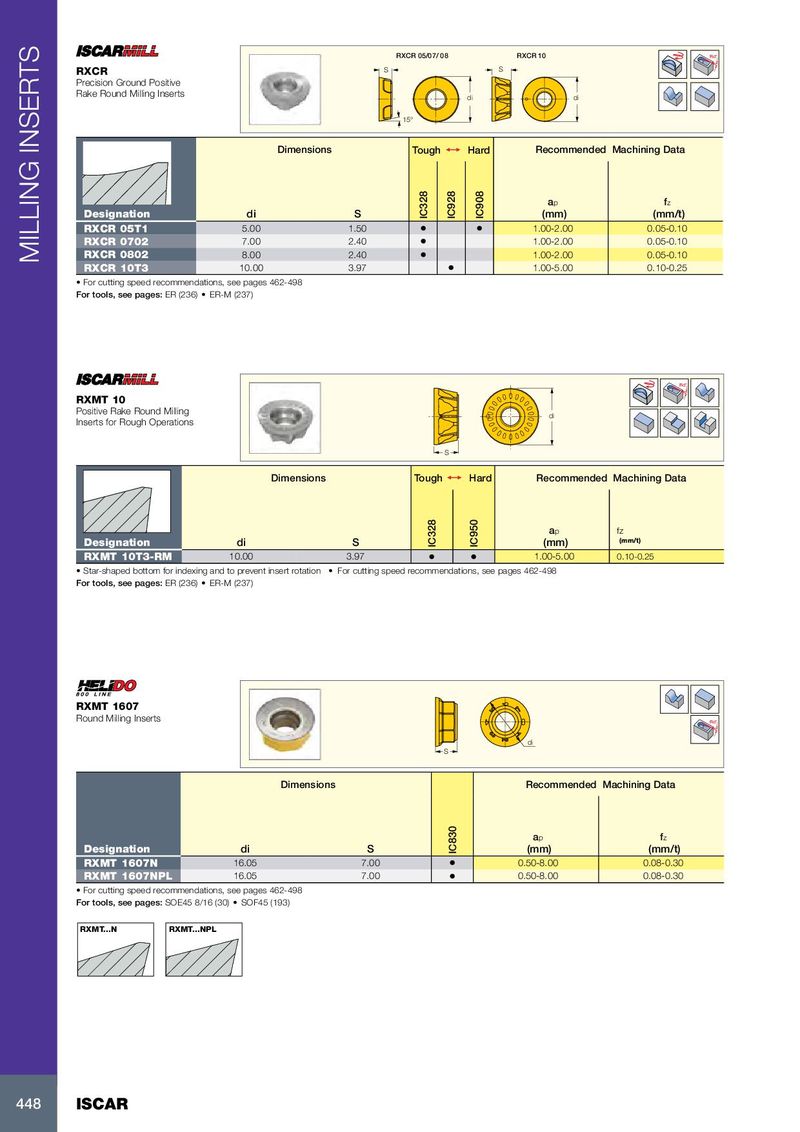

Каталог Iscar вращающийся инструмент 2017 - страница 452

RXCR 05/07/ 08 RXCR 10 Rd° RXCR S S Precision Ground Positive Rake Round Milling Inserts di di 15° Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation di S IC328 IC928 IC908 (mm) (mm/t) RXCR 05T1 5.00 1.50 • • 1.00-2.00 0.05-0.10 RXCR 0702 7.00 2.40 • 1.00-2.00 0.05-0.10 RXCR 0802 8.00 2.40 MILLING INSERTS • 1.00-2.00 0.05-0.10 RXCR 10T3 10.00 3.97 • 1.00-5.00 0.10-0.25 • For cutting speed recommendations, see pages 462-498 For tools, see pages: ER (236) • ER-M (237) Rd° RXMT 10 Positive Rake Round Milling di Inserts for Rough Operations S Dimensions Tough 1  Hard Recommended Machining Data a p fz Designation di S IC328 IC950 (mm) (mm/t) RXMT 10T3-RM 10.00 3.97 • • 1.00-5.00 0.10-0.25 • Star-shaped bottom for indexing and to prevent insert rotation • For cutting speed recommendations, see pages 462-498 For tools, see pages: ER (236) • ER-M (237) RXMT 1607 Round Milling Inserts Rd° di S Dimensions Recommended Machining Data a p f z Designation di S IC830 (mm) (mm/t) RXMT 1607N 16.05 7.00 • 0.50-8.00 0.08-0.30 RXMT 1607NPL 16.05 7.00 • 0.50-8.00 0.08-0.30 • For cutting speed recommendations, see pages 462-498 For tools, see pages: SOE45 8/16 (30) • SOF45 (193) RXMT...N RXMT...NPL 448 ISCAR
