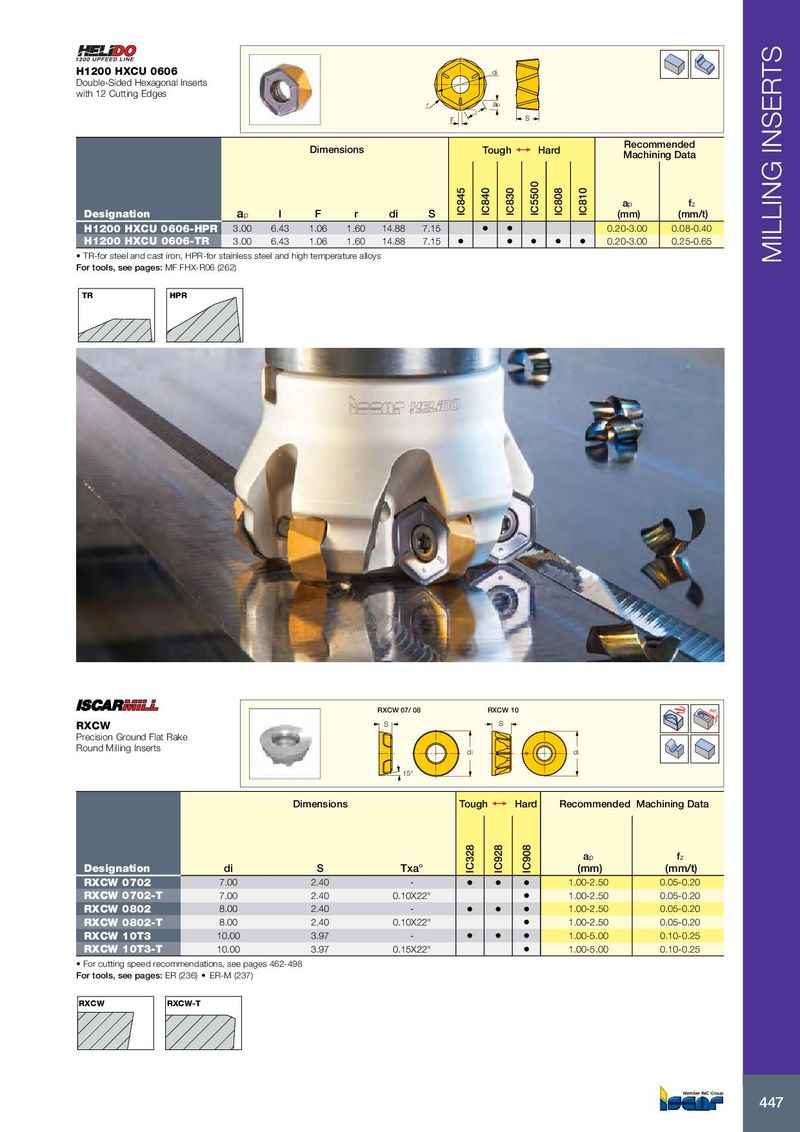

Каталог Iscar вращающийся инструмент 2017 - страница 451

H1200 HXCU 0606 di Double-Sided Hexagonal Inserts with 12 Cutting Edges r ap l F S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation a p l F r di S IC845 IC840 IC830 IC5500 IC808 IC810 (mm) (mm/t) H1200 HXCU 0606-HPR 3.00 6.43 1.06 1.60 14.88 7.15 • • 0.20-3.00 0.08-0.40 H1200 HXCU 0606-TR 3.00 6.43 1.06 1.60 14.88 7.15 • • • • • 0.20-3.00 0.25-0.65 • TR-for steel and cast iron, HPR-for stainless steel and high temperature alloys MILLING INSERTS For tools, see pages: MF FHX-R06 (262) TR HPR RXCW 07/ 08 RXCW 10 Rd° RXCW S S Precision Ground Flat Rake Round Milling Inserts di di 15° Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation di S Txa° IC328 IC928 IC908 (mm) (mm/t) RXCW 0702 7.00 2.40 - • • • 1.00-2.50 0.05-0.20 RXCW 0702-T 7.00 2.40 0.10X22° • 1.00-2.50 0.05-0.20 RXCW 0802 8.00 2.40 - • • • 1.00-2.50 0.05-0.20 RXCW 0802-T 8.00 2.40 0.10X22° • 1.00-2.50 0.05-0.20 RXCW 10T3 10.00 3.97 - • • • 1.00-5.00 0.10-0.25 RXCW 10T3-T 10.00 3.97 0.15X22° • 1.00-5.00 0.10-0.25 • For cutting speed recommendations, see pages 462-498 For tools, see pages: ER (236) • ER-M (237) RXCW RXCW-T 447
