Каталог Iscar вращающийся инструмент 2017 - страница 450

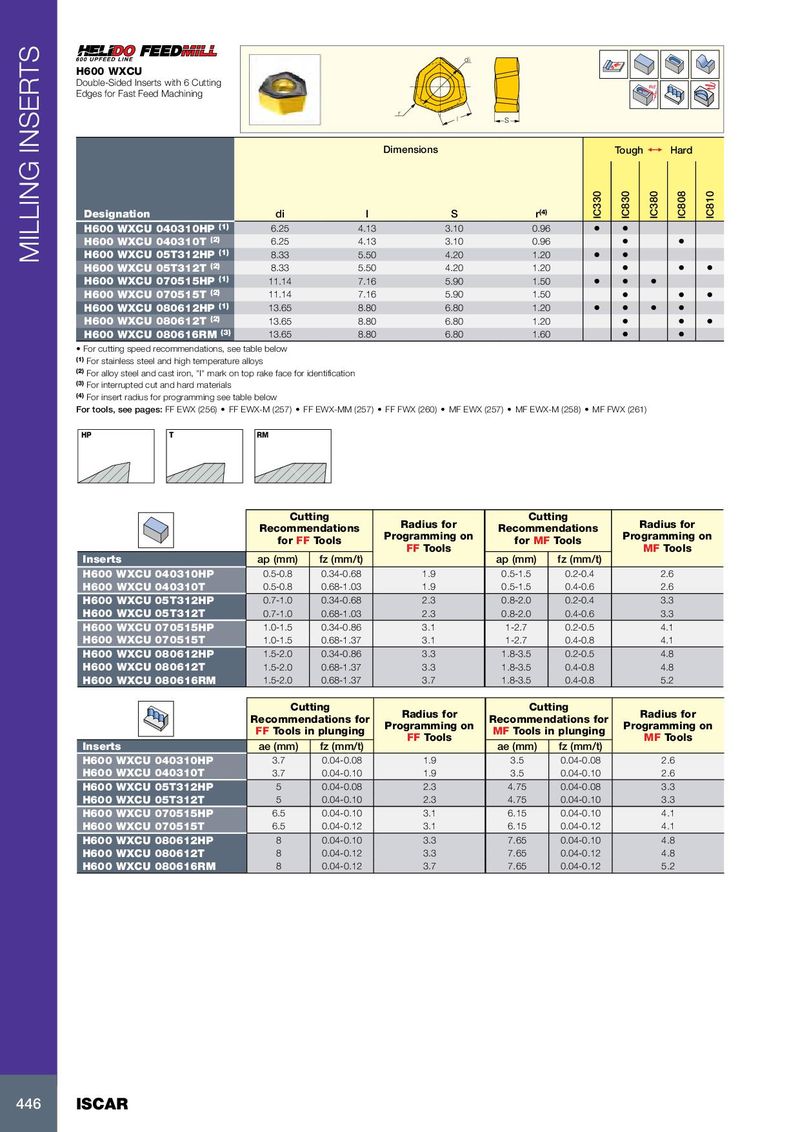

di H600 WXCU Double-Sided Inserts with 6 Cutting Rd° Edges for Fast Feed Machining r l S Dimensions Tough 1  Hard Designation di l S r (4) IC330 IC830 IC380 IC808 IC810 H600 WXCU 040310HP (1) 6.25 4.13 3.10 0.96 • • H600 WXCU 040310T (2) 6.25 4.13 3.10 0.96 • • H600 WXCU 05T312HP (1) 8.33 5.50 4.20 1.20 MILLING INSERTS • • H600 WXCU 05T312T (2) 8.33 5.50 4.20 1.20 • • • H600 WXCU 070515HP (1) 11.14 7.16 5.90 1.50 • • • H600 WXCU 070515T (2) 11.14 7.16 5.90 1.50 • • • H600 WXCU 080612HP (1) 13.65 8.80 6.80 1.20 • • • • H600 WXCU 080612T (2) 13.65 8.80 6.80 1.20 • • • H600 WXCU 080616RM (3) 13.65 8.80 6.80 1.60 • • • For cutting speed recommendations, see table below (1) For stainless steel and high temperature alloys (2) For alloy steel and cast iron, "I" mark on top rake face for identification (3) For interrupted cut and hard materials (4) For insert radius for programming see table below For tools, see pages: FF EWX (256) • FF EWX-M (257) • FF EWX-MM (257) • FF FWX (260) • MF EWX (257) • MF EWX-M (258) • MF FWX (261) HP T RM Cutting Cutting Radius for Radius for Recommendations Recommendations Programming on Programming on for FF Tools for MF Tools FF Tools MF Tools Inserts ap (mm) fz (mm/t) ap (mm) fz (mm/t) H600 WXCU 040310HP 0.5-0.8 0.34-0.68 1.9 0.5-1.5 0.2-0.4 2.6 H600 WXCU 040310T 0.5-0.8 0.68-1.03 1.9 0.5-1.5 0.4-0.6 2.6 H600 WXCU 05T312HP 0.7-1.0 0.34-0.68 2.3 0.8-2.0 0.2-0.4 3.3 H600 WXCU 05T312T 0.7-1.0 0.68-1.03 2.3 0.8-2.0 0.4-0.6 3.3 H600 WXCU 070515HP 1.0-1.5 0.34-0.86 3.1 1-2.7 0.2-0.5 4.1 H600 WXCU 070515T 1.0-1.5 0.68-1.37 3.1 1-2.7 0.4-0.8 4.1 H600 WXCU 080612HP 1.5-2.0 0.34-0.86 3.3 1.8-3.5 0.2-0.5 4.8 H600 WXCU 080612T 1.5-2.0 0.68-1.37 3.3 1.8-3.5 0.4-0.8 4.8 H600 WXCU 080616RM 1.5-2.0 0.68-1.37 3.7 1.8-3.5 0.4-0.8 5.2 Cutting Cutting Radius for Radius for Recommendations for Recommendations for Programming on Programming on FF Tools in plunging MF Tools in plunging FF Tools MF Tools Inserts ae (mm) fz (mm/t) ae (mm) fz (mm/t) H600 WXCU 040310HP 3.7 0.04-0.08 1.9 3.5 0.04-0.08 2.6 H600 WXCU 040310T 3.7 0.04-0.10 1.9 3.5 0.04-0.10 2.6 H600 WXCU 05T312HP 5 0.04-0.08 2.3 4.75 0.04-0.08 3.3 H600 WXCU 05T312T 5 0.04-0.10 2.3 4.75 0.04-0.10 3.3 H600 WXCU 070515HP 6.5 0.04-0.10 3.1 6.15 0.04-0.10 4.1 H600 WXCU 070515T 6.5 0.04-0.12 3.1 6.15 0.04-0.12 4.1 H600 WXCU 080612HP 8 0.04-0.10 3.3 7.65 0.04-0.10 4.8 H600 WXCU 080612T 8 0.04-0.12 3.3 7.65 0.04-0.12 4.8 H600 WXCU 080616RM 8 0.04-0.12 3.7 7.65 0.04-0.12 5.2 446 ISCAR
