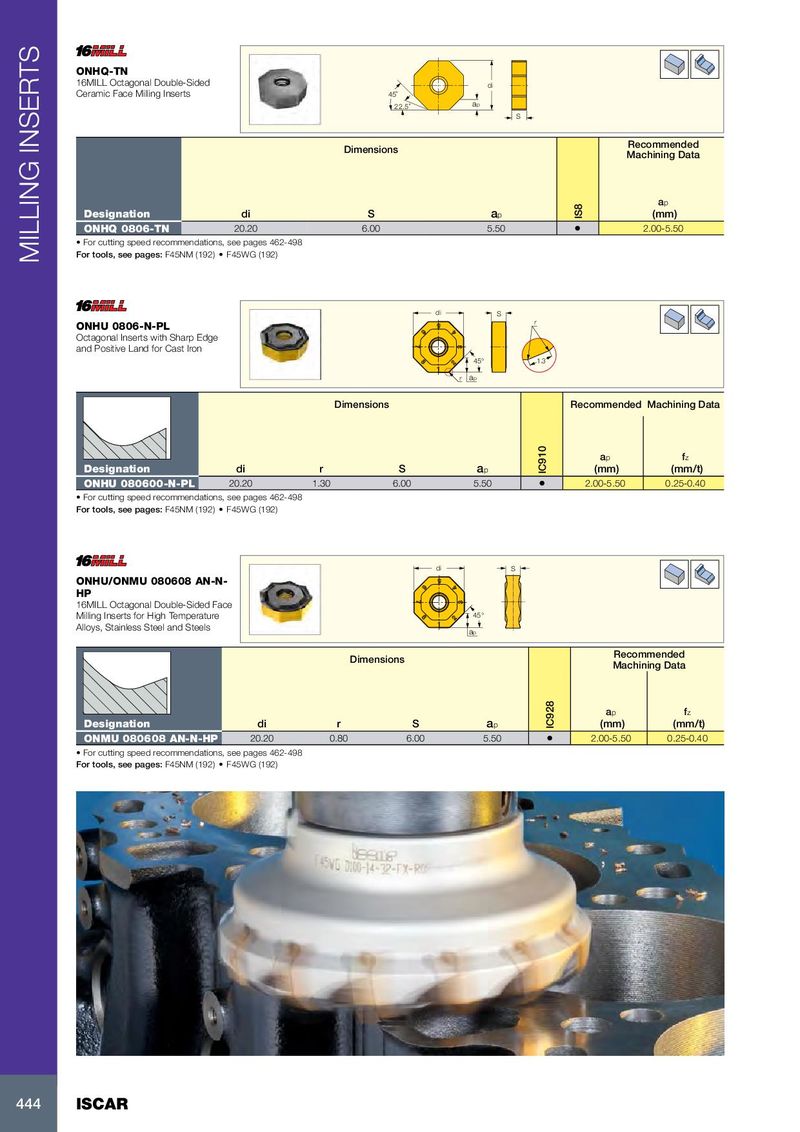

ONHQ-TN 16MILL Octagonal Double-Sided di Ceramic Face Milling Inserts 45˚ 22.5˚ ap S Recommended Dimensions Machining Data a p Designation di S a p IS8 (mm) ONHQ 0806-TN 20.20 6.00 5.50 • 2.00-5.50 • For cutting speed recommendations, see pages 462-498 For tools, see pages: F45NM (192) • F45WG (192) MILLING INSERTS di S r ONHU 0806-N-PL Octagonal Inserts with Sharp Edge and Positive Land for Cast Iron 45° 1.3 r ap Dimensions Recommended Machining Data a p f z Designation di r S a p IC910 (mm) (mm/t) ONHU 080600-N-PL 20.20 1.30 6.00 5.50 • 2.00-5.50 0.25-0.40 • For cutting speed recommendations, see pages 462-498 For tools, see pages: F45NM (192) • F45WG (192) di S ONHU/ONMU 080608 AN-N- HP 16MILL Octagonal Double-Sided Face Milling Inserts for High Temperature 45° Alloys, Stainless Steel and Steels ap Recommended Dimensions Machining Data a p f z Designation di r S a p IC928 (mm) (mm/t) ONMU 080608 AN-N-HP 20.20 0.80 6.00 5.50 • 2.00-5.50 0.25-0.40 • For cutting speed recommendations, see pages 462-498 For tools, see pages: F45NM (192) • F45WG (192) 444 ISCAR
