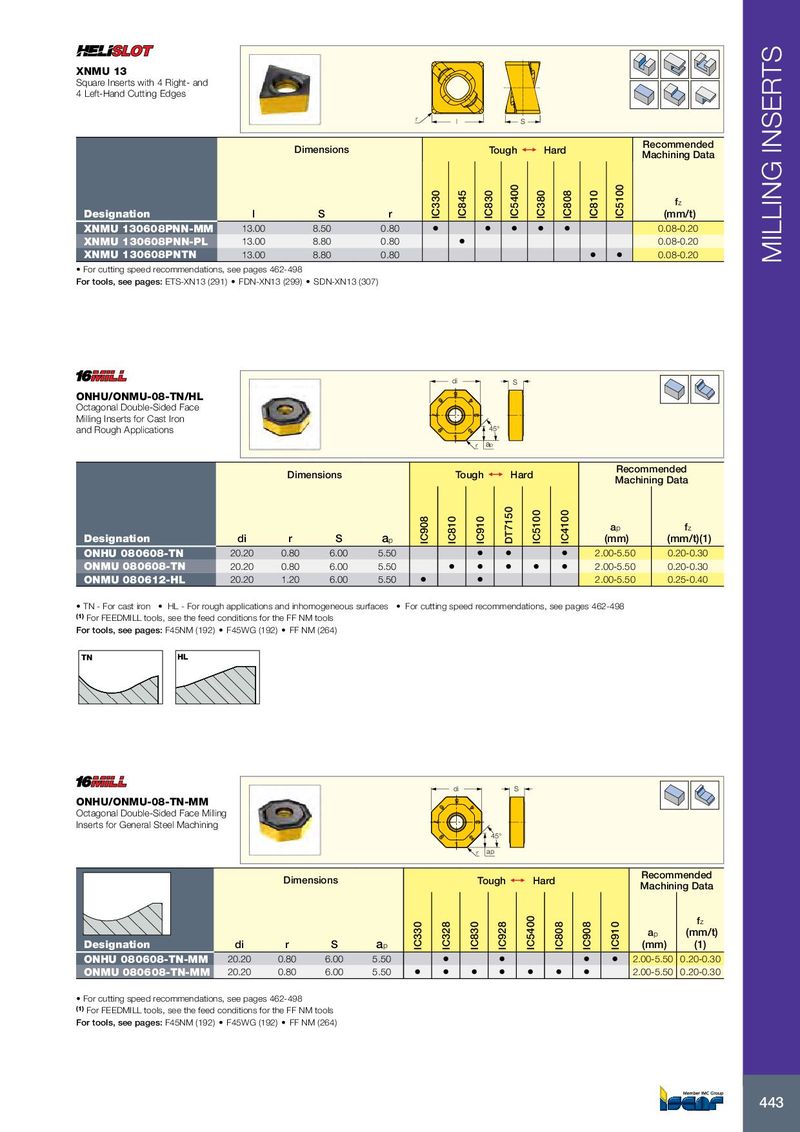

XNMU 13 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges r l S Recommended Dimensions Tough 1  Hard Machining Data f z Designation l S r IC330 IC845 IC830 IC5400 IC380 IC808 IC810 IC5100 (mm/t) XNMU 130608PNN-MM 13.00 8.50 0.80 • • • • • 0.08-0.20 XNMU 130608PNN-PL 13.00 8.80 0.80 • 0.08-0.20 XNMU 130608PNTN 13.00 8.80 0.80 • • 0.08-0.20 MILLING INSERTS • For cutting speed recommendations, see pages 462-498 For tools, see pages: ETS-XN13 (291) • FDN-XN13 (299) • SDN-XN13 (307) di S ONHU/ONMU-08-TN/HL Octagonal Double-Sided Face Milling Inserts for Cast Iron and Rough Applications 45° r ap Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di r S a p IC908 IC810 IC910 DT7150 IC5100 IC4100 (mm) (mm/t)(1) ONHU 080608-TN 20.20 0.80 6.00 5.50 • • • 2.00-5.50 0.20-0.30 ONMU 080608-TN 20.20 0.80 6.00 5.50 • • • • • 2.00-5.50 0.20-0.30 ONMU 080612-HL 20.20 1.20 6.00 5.50 • • 2.00-5.50 0.25-0.40 • TN - For cast iron • HL - For rough applications and inhomogeneous surfaces • For cutting speed recommendations, see pages 462-498 (1) For FEEDMILL tools, see the feed conditions for the FF NM tools For tools, see pages: F45NM (192) • F45WG (192) • FF NM (264) TN HL di S ONHU/ONMU-08-TN-MM Octagonal Double-Sided Face Milling Inserts for General Steel Machining 45° r ap Recommended Dimensions Tough 1  Hard Machining Data f z a p (mm/t) Designation di r S a p IC330 IC328 IC830 IC928 IC5400 IC808 IC908 IC910 (mm) (1) ONHU 080608-TN-MM 20.20 0.80 6.00 5.50 • • • • 2.00-5.50 0.20-0.30 ONMU 080608-TN-MM 20.20 0.80 6.00 5.50 • • • • • • • 2.00-5.50 0.20-0.30 • For cutting speed recommendations, see pages 462-498 (1) For FEEDMILL tools, see the feed conditions for the FF NM tools For tools, see pages: F45NM (192) • F45WG (192) • FF NM (264) 443
