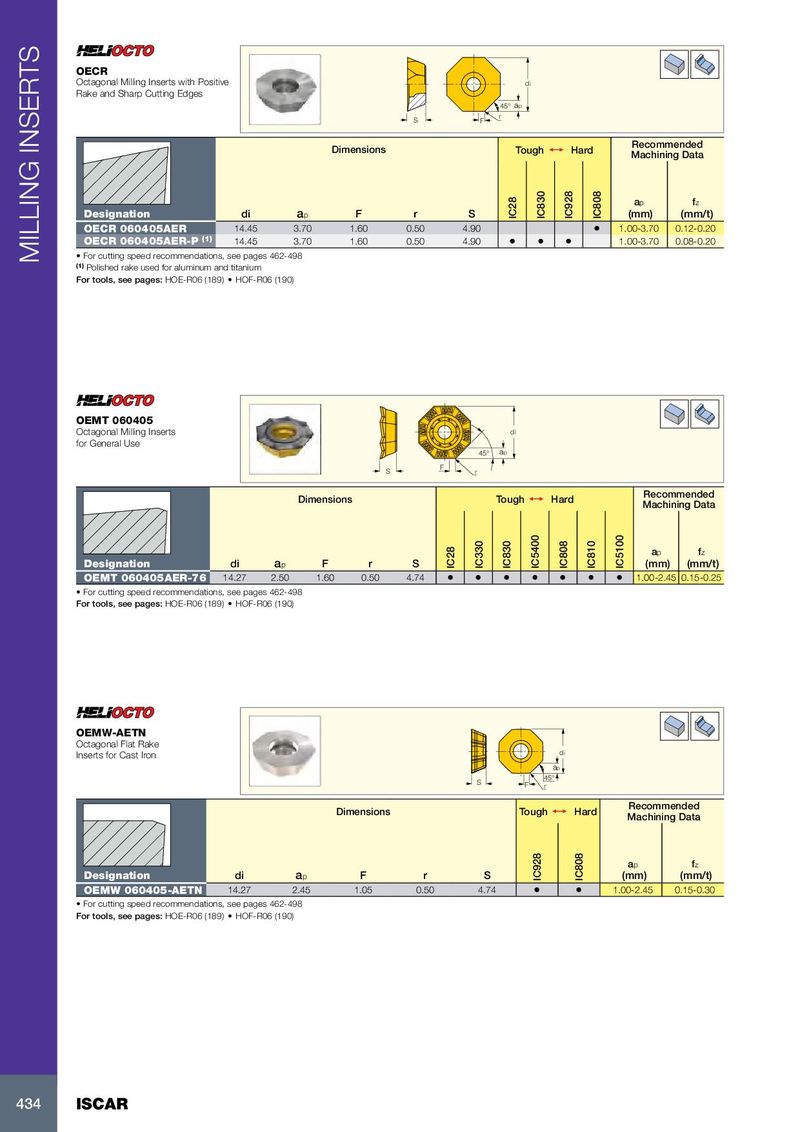

Каталог Iscar вращающийся инструмент 2017 - страница 438

OECR Octagonal Milling Inserts with Positive di Rake and Sharp Cutting Edges 45° ap S r F Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di a p F r S IC28 IC830 IC928 IC808 (mm) (mm/t) OECR 060405AER 14.45 3.70 1.60 0.50 4.90 • 1.00-3.70 0.12-0.20 OECR 060405AER-P (1) 14.45 3.70 1.60 0.50 4.90 • • • 1.00-3.70 0.08-0.20 • For cutting speed recommendations, see pages 462-498 MILLING INSERTS (1) Polished rake used for aluminum and titanium For tools, see pages: HOE-R06 (189) • HOF-R06 (190) OEMT 060405 Octagonal Milling Inserts di for General Use 45° ap S F r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di a p F r S IC28 IC330 IC830 IC5400 IC808 IC810 IC5100 (mm) (mm/t) OEMT 060405AER-76 14.27 2.50 1.60 0.50 4.74 • • • • • • • 1.00-2.45 0.15-0.25 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HOE-R06 (189) • HOF-R06 (190) OEMW-AETN Octagonal Flat Rake Inserts for Cast Iron di ap 45° S F r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di a p F r S IC928 IC808 (mm) (mm/t) OEMW 060405-AETN 14.27 2.45 1.05 0.50 4.74 • • 1.00-2.45 0.15-0.30 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HOE-R06 (189) • HOF-R06 (190) 434 ISCAR
