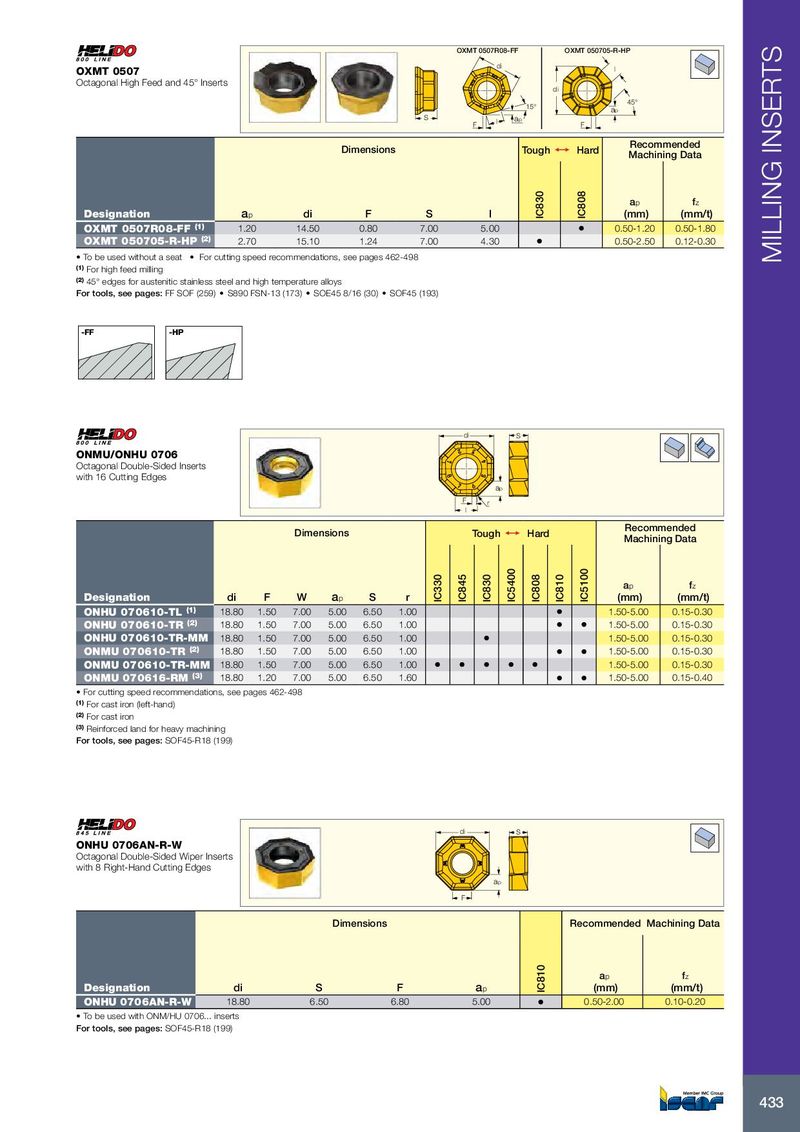

OXMT 0507R08-FF OXMT 050705-R-HP di OXMT 0507 l Octagonal High Feed and 45° Inserts di 45° 15° ap S ap F l F Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation a p di F S l IC830 IC808 (mm) (mm/t) OXMT 0507R08-FF (1) 1.20 14.50 0.80 7.00 5.00 • 0.50-1.20 0.50-1.80 OXMT 050705-R-HP (2) 2.70 15.10 1.24 7.00 4.30 • 0.50-2.50 0.12-0.30 • To be used without a seat • For cutting speed recommendations, see pages 462-498 MILLING INSERTS (1) For high feed milling (2) 45° edges for austenitic stainless steel and high temperature alloys For tools, see pages: FF SOF (259) • S890 FSN-13 (173) • SOE45 8/16 (30) • SOF45 (193) -FF -HP di S ONMU/ONHU 0706 Octagonal Double-Sided Inserts with 16 Cutting Edges ap F r l Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di F W a p S r IC330 IC845 IC830 IC5400 IC808 IC810 IC5100 (mm) (mm/t) ONHU 070610-TL (1) 18.80 1.50 7.00 5.00 6.50 1.00 • 1.50-5.00 0.15-0.30 ONHU 070610-TR (2) 18.80 1.50 7.00 5.00 6.50 1.00 • • 1.50-5.00 0.15-0.30 ONHU 070610-TR-MM 18.80 1.50 7.00 5.00 6.50 1.00 • 1.50-5.00 0.15-0.30 ONMU 070610-TR (2) 18.80 1.50 7.00 5.00 6.50 1.00 • • 1.50-5.00 0.15-0.30 ONMU 070610-TR-MM 18.80 1.50 7.00 5.00 6.50 1.00 • • • • • 1.50-5.00 0.15-0.30 ONMU 070616-RM (3) 18.80 1.20 7.00 5.00 6.50 1.60 • • 1.50-5.00 0.15-0.40 • For cutting speed recommendations, see pages 462-498 (1) For cast iron (left-hand) (2) For cast iron (3) Reinforced land for heavy machining For tools, see pages: SOF45-R18 (199) di S ONHU 0706AN-R-W Octagonal Double-Sided Wiper Inserts with 8 Right-Hand Cutting Edges ap F Dimensions Recommended Machining Data a p f z Designation di S F a p IC810 (mm) (mm/t) ONHU 0706AN-R-W 18.80 6.50 6.80 5.00 • 0.50-2.00 0.10-0.20 • To be used with ONM/HU 0706... inserts For tools, see pages: SOF45-R18 (199) 433
