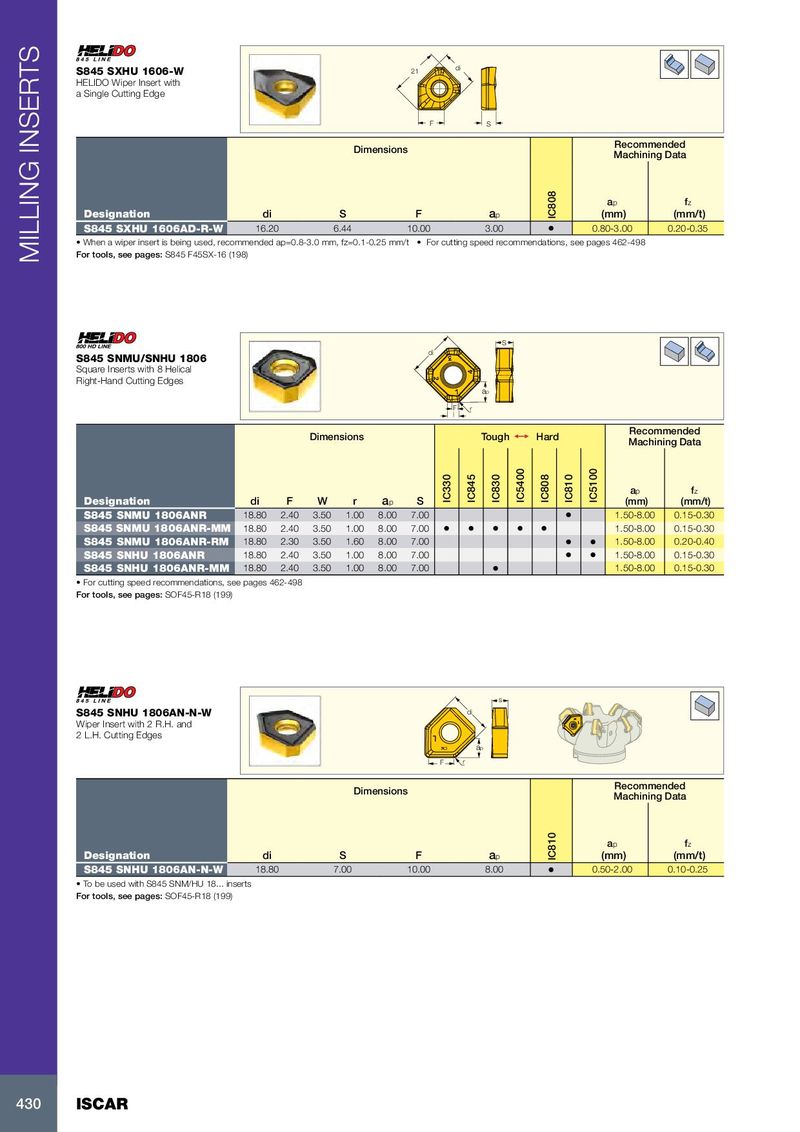

S845 SXHU 1606-W 21 di HELIDO Wiper Insert with a Single Cutting Edge F S Recommended Dimensions Machining Data a p f z Designation di S F a p IC808 (mm) (mm/t) S845 SXHU 1606AD-R-W 16.20 6.44 10.00 3.00 • 0.80-3.00 0.20-0.35 • When a wiper insert is being used, recommended ap=0.8-3.0 mm, fz=0.1-0.25 mm/t • For cutting speed recommendations, see pages 462-498 For tools, see pages: S845 F45SX-16 (198) MILLING INSERTS S di S845 SNMU/SNHU 1806 Square Inserts with 8 Helical Right-Hand Cutting Edges ap F r l Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di F W r a p S IC330 IC845 IC830 IC5400 IC808 IC810 IC5100 (mm) (mm/t) S845 SNMU 1806ANR 18.80 2.40 3.50 1.00 8.00 7.00 • 1.50-8.00 0.15-0.30 S845 SNMU 1806ANR-MM 18.80 2.40 3.50 1.00 8.00 7.00 • • • • • 1.50-8.00 0.15-0.30 S845 SNMU 1806ANR-RM 18.80 2.30 3.50 1.60 8.00 7.00 • • 1.50-8.00 0.20-0.40 S845 SNHU 1806ANR 18.80 2.40 3.50 1.00 8.00 7.00 • • 1.50-8.00 0.15-0.30 S845 SNHU 1806ANR-MM 18.80 2.40 3.50 1.00 8.00 7.00 • 1.50-8.00 0.15-0.30 • For cutting speed recommendations, see pages 462-498 For tools, see pages: SOF45-R18 (199) s S845 SNHU 1806AN-N-W di Wiper Insert with 2 R.H. and 2 L.H. Cutting Edges ap F r Recommended Dimensions Machining Data a p f z Designation di S F a p IC810 (mm) (mm/t) S845 SNHU 1806AN-N-W 18.80 7.00 10.00 8.00 • 0.50-2.00 0.10-0.25 • To be used with S845 SNM/HU 18... inserts For tools, see pages: SOF45-R18 (199) 430 ISCAR
