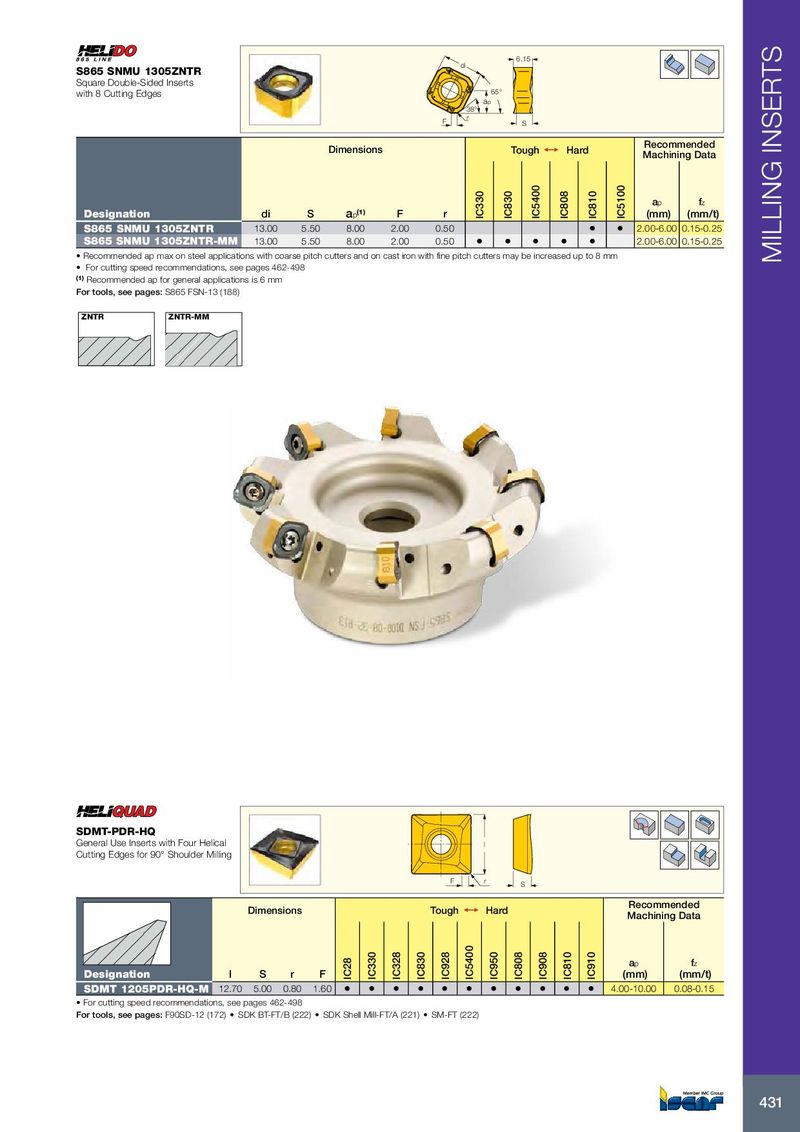

6.15 di S865 SNMU 1305ZNTR Square Double-Sided Inserts with 8 Cutting Edges 65° ap 38° F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di S a p (1) F r IC330 IC830 IC5400 IC808 IC810 IC5100 (mm) (mm/t) S865 SNMU 1305ZNTR 13.00 5.50 8.00 2.00 0.50 • • 2.00-6.00 0.15-0.25 S865 SNMU 1305ZNTR-MM 13.00 5.50 8.00 2.00 0.50 • • • • • 2.00-6.00 0.15-0.25 • Recommended ap max on steel applications with coarse pitch cutters and on cast iron with fine pitch cutters may be increased up to 8 mm MILLING INSERTS • For cutting speed recommendations, see pages 462-498 (1) Recommended ap for general applications is 6 mm For tools, see pages: S865 FSN-13 (188) ZNTR ZNTR-MM SDMT-PDR-HQ General Use Inserts with Four Helical l Cutting Edges for 90° Shoulder Milling F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l S r F IC28 IC330 IC328 IC830 IC928 IC5400 IC950 IC808 IC908 IC810 IC910 (mm) (mm/t) SDMT 1205PDR-HQ-M 12.70 5.00 0.80 1.60 • • • • • • • • • • • 4.00-10.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90SD-12 (172) • SDK BT-FT/B (222) • SDK Shell Mill-FT/A (221) • SM-FT (222) 431
