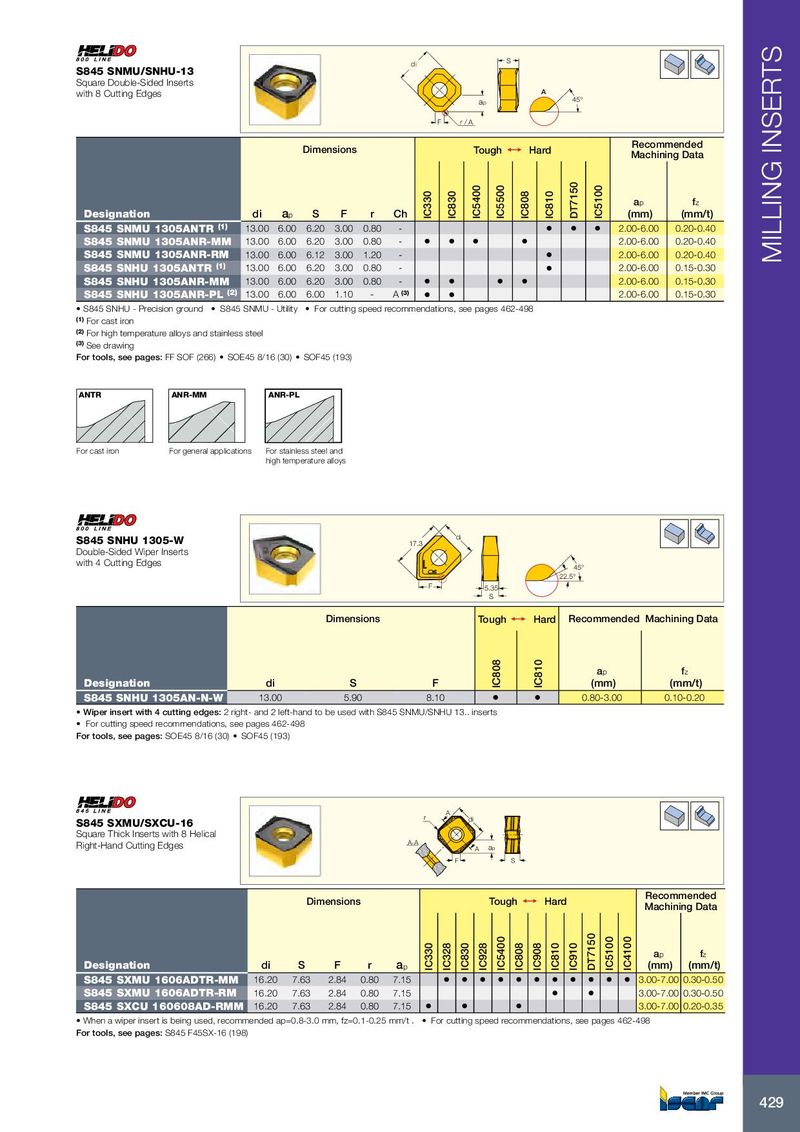

di S S845 SNMU/SNHU-13 Square Double-Sided Inserts with 8 Cutting Edges A ap 45° F r / A Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di a p S F r Ch IC330 IC830 IC5400 IC5500 IC808 IC810 DT7150 IC5100 (mm) (mm/t) S845 SNMU 1305ANTR (1) 13.00 6.00 6.20 3.00 0.80 - • • • 2.00-6.00 0.20-0.40 S845 SNMU 1305ANR-MM 13.00 6.00 6.20 3.00 0.80 - • • • • 2.00-6.00 0.20-0.40 S845 SNMU 1305ANR-RM 13.00 6.00 6.12 3.00 1.20 - • 2.00-6.00 0.20-0.40 MILLING INSERTS S845 SNHU 1305ANTR (1) 13.00 6.00 6.20 3.00 0.80 - • 2.00-6.00 0.15-0.30 S845 SNHU 1305ANR-MM 13.00 6.00 6.20 3.00 0.80 - • • • • 2.00-6.00 0.15-0.30 S845 SNHU 1305ANR-PL (2) 13.00 6.00 6.00 1.10 - A (3) • • 2.00-6.00 0.15-0.30 • S845 SNHU - Precision ground • S845 SNMU - Utility • For cutting speed recommendations, see pages 462-498 (1) For cast iron (2) For high temperature alloys and stainless steel (3) See drawing For tools, see pages: FF SOF (266) • SOE45 8/16 (30) • SOF45 (193) ANTR ANR-MM ANR-PL For cast iron For general applications For stainless steel and high temperature alloys di S845 SNHU 1305-W 17.3 Double-Sided Wiper Inserts with 4 Cutting Edges 45° 22.5° F 5.35 S Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation di S F IC808 IC810 (mm) (mm/t) S845 SNHU 1305AN-N-W 13.00 5.90 8.10 • • 0.80-3.00 0.10-0.20 • Wiper insert with 4 cutting edges: 2 right- and 2 left-hand to be used with S845 SNMU/SNHU 13.. inserts • For cutting speed recommendations, see pages 462-498 For tools, see pages: SOE45 8/16 (30) • SOF45 (193) A r di S845 SXMU/SXCU-16 Square Thick Inserts with 8 Helical Right-Hand Cutting Edges A-A A ap F S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation di S F r a p IC330 IC328 IC830 IC928 IC5400 IC808 IC908 IC810 IC910 DT7150 IC5100 IC4100 (mm) (mm/t) S845 SXMU 1606ADTR-MM 16.20 7.63 2.84 0.80 7.15 • • • • • • • • • • • 3.00-7.00 0.30-0.50 S845 SXMU 1606ADTR-RM 16.20 7.63 2.84 0.80 7.15 • • 3.00-7.00 0.30-0.50 S845 SXCU 160608AD-RMM 16.20 7.63 2.84 0.80 7.15 • • • 3.00-7.00 0.20-0.35 • When a wiper insert is being used, recommended ap=0.8-3.0 mm, fz=0.1-0.25 mm/t . • For cutting speed recommendations, see pages 462-498 For tools, see pages: S845 F45SX-16 (198) 429
