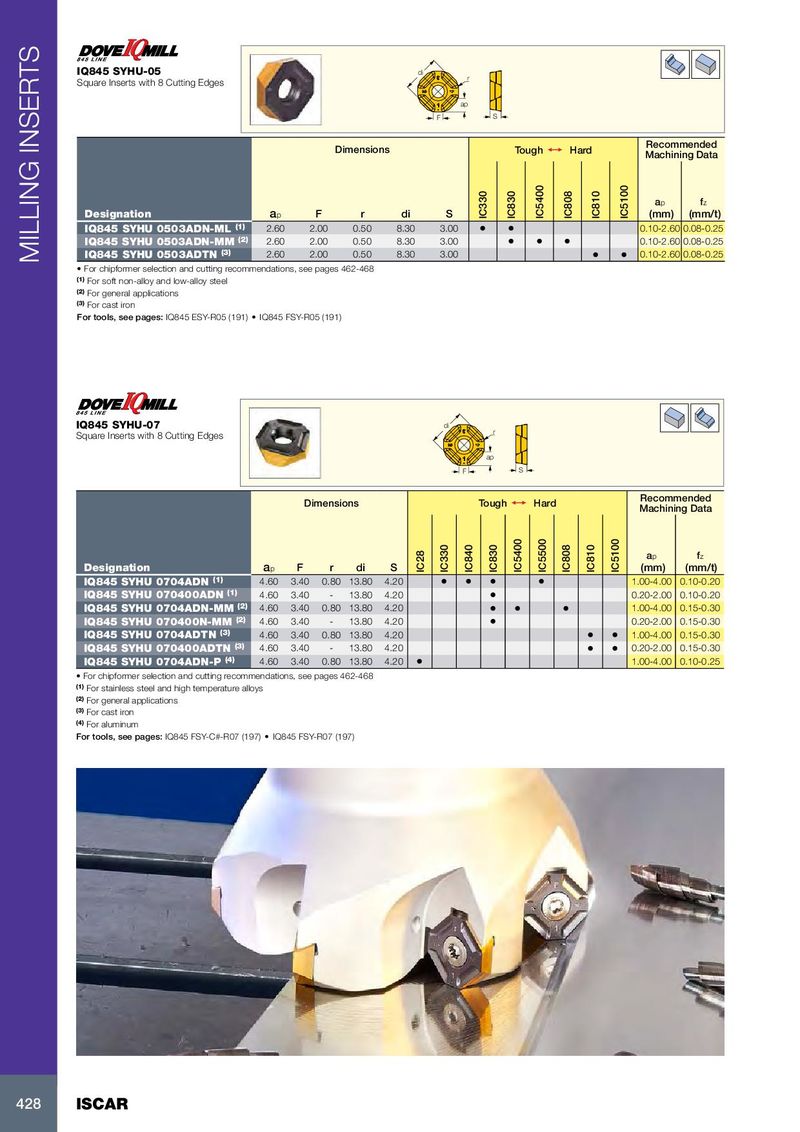

Каталог Iscar вращающийся инструмент 2017 - страница 432

IQ845 SYHU-05 di r Square Inserts with 8 Cutting Edges ap F S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation a p F r di S IC330 IC830 IC5400 IC808 IC810 IC5100 (mm) (mm/t) IQ845 SYHU 0503ADN-ML (1) 2.60 2.00 0.50 8.30 3.00 • • 0.10-2.60 0.08-0.25 IQ845 SYHU 0503ADN-MM (2) 2.60 2.00 0.50 8.30 3.00 • • • 0.10-2.60 0.08-0.25 IQ845 SYHU 0503ADTN (3) 2.60 2.00 0.50 8.30 3.00 MILLING INSERTS • • 0.10-2.60 0.08-0.25 • For chipformer selection and cutting recommendations, see pages 462-468 (1) For soft non-alloy and low-alloy steel (2) For general applications (3) For cast iron For tools, see pages: IQ845 ESY-R05 (191) • IQ845 FSY-R05 (191) IQ845 SYHU-07 di r Square Inserts with 8 Cutting Edges ap F S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation a p F r di S IC28 IC330 IC840 IC830 IC5400 IC5500 IC808 IC810 IC5100 (mm) (mm/t) IQ845 SYHU 0704ADN (1) 4.60 3.40 0.80 13.80 4.20 • • • • 1.00-4.00 0.10-0.20 IQ845 SYHU 070400ADN (1) 4.60 3.40 - 13.80 4.20 • 0.20-2.00 0.10-0.20 IQ845 SYHU 0704ADN-MM (2) 4.60 3.40 0.80 13.80 4.20 • • • 1.00-4.00 0.15-0.30 IQ845 SYHU 070400N-MM (2) 4.60 3.40 - 13.80 4.20 • 0.20-2.00 0.15-0.30 IQ845 SYHU 0704ADTN (3) 4.60 3.40 0.80 13.80 4.20 • • 1.00-4.00 0.15-0.30 IQ845 SYHU 070400ADTN (3) 4.60 3.40 - 13.80 4.20 • • 0.20-2.00 0.15-0.30 IQ845 SYHU 0704ADN-P (4) 4.60 3.40 0.80 13.80 4.20 • 1.00-4.00 0.10-0.25 • For chipformer selection and cutting recommendations, see pages 462-468 (1) For stainless steel and high temperature alloys (2) For general applications (3) For cast iron (4) For aluminum For tools, see pages: IQ845 FSY-C#-R07 (197) • IQ845 FSY-R07 (197) 428 ISCAR
