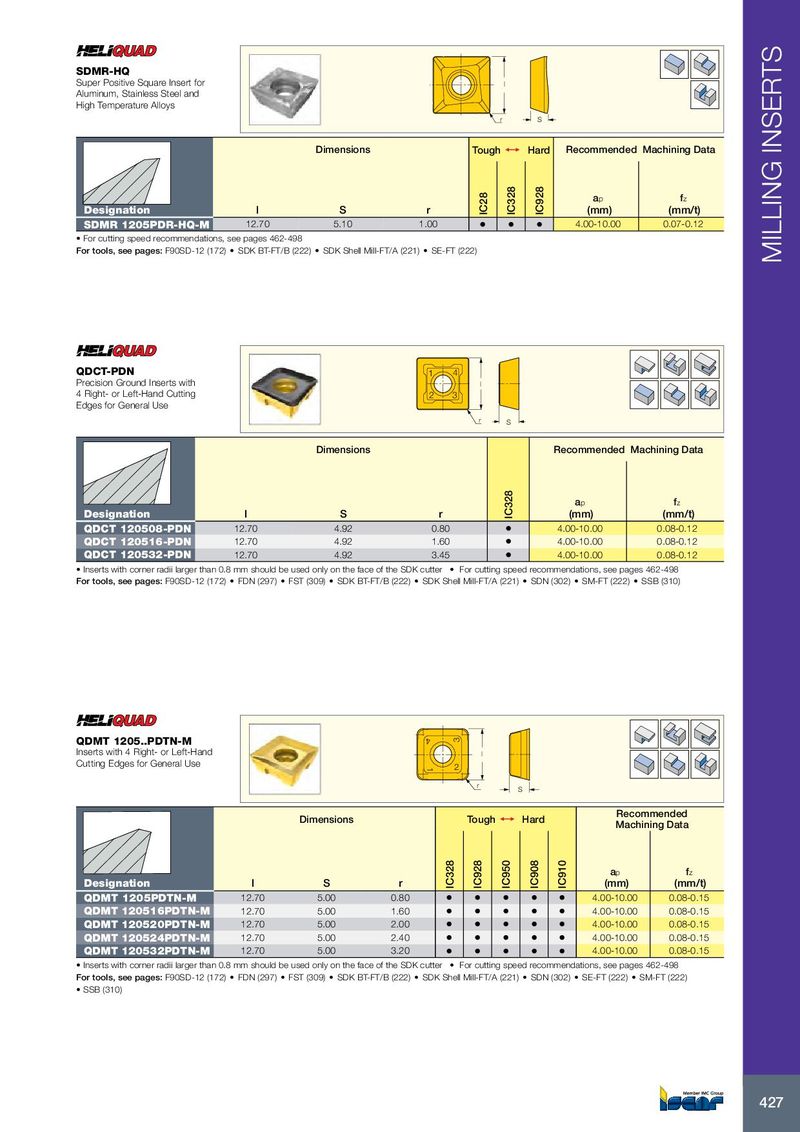

SDMR-HQ Super Positive Square Insert for l Aluminum, Stainless Steel and High Temperature Alloys r S Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation l S r IC28 IC328 IC928 (mm) (mm/t) SDMR 1205PDR-HQ-M 12.70 5.10 1.00 • • • 4.00-10.00 0.07-0.12 • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90SD-12 (172) • SDK BT-FT/B (222) • SDK Shell Mill-FT/A (221) • SE-FT (222) MILLING INSERTS QDCT-PDN 1 4 Precision Ground Inserts with l 4 Right- or Left-Hand Cutting 2 3 Edges for General Use r S Dimensions Recommended Machining Data a p f z Designation l S r IC328 (mm) (mm/t) QDCT 120508-PDN 12.70 4.92 0.80 • 4.00-10.00 0.08-0.12 QDCT 120516-PDN 12.70 4.92 1.60 • 4.00-10.00 0.08-0.12 QDCT 120532-PDN 12.70 4.92 3.45 • 4.00-10.00 0.08-0.12 • Inserts with corner radii larger than 0.8 mm should be used only on the face of the SDK cutter • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90SD-12 (172) • FDN (297) • FST (309) • SDK BT-FT/B (222) • SDK Shell Mill-FT/A (221) • SDN (302) • SM-FT (222) • SSB (310) 4 QDMT 1205..PDTN-M 3 Inserts with 4 Right- or Left-Hand l Cutting Edges for General Use 1 2 r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l S r IC328 IC928 IC950 IC908 IC910 (mm) (mm/t) QDMT 1205PDTN-M 12.70 5.00 0.80 • • • • • 4.00-10.00 0.08-0.15 QDMT 120516PDTN-M 12.70 5.00 1.60 • • • • • 4.00-10.00 0.08-0.15 QDMT 120520PDTN-M 12.70 5.00 2.00 • • • • • 4.00-10.00 0.08-0.15 QDMT 120524PDTN-M 12.70 5.00 2.40 • • • • • 4.00-10.00 0.08-0.15 QDMT 120532PDTN-M 12.70 5.00 3.20 • • • • • 4.00-10.00 0.08-0.15 • Inserts with corner radii larger than 0.8 mm should be used only on the face of the SDK cutter • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90SD-12 (172) • FDN (297) • FST (309) • SDK BT-FT/B (222) • SDK Shell Mill-FT/A (221) • SDN (302) • SE-FT (222) • SM-FT (222) • SSB (310) 427
