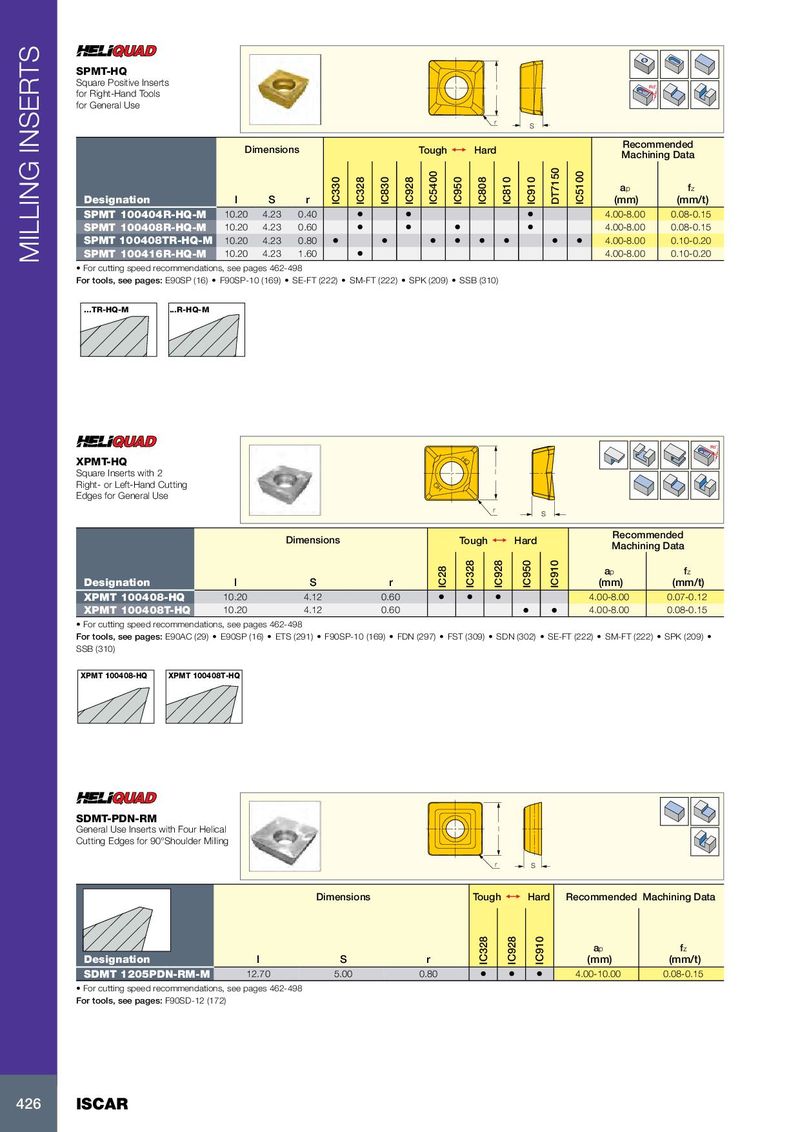

SPMT-HQ Square Positive Inserts l Rd° for Right-Hand Tools for General Use r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l S r IC330 IC328 IC830 IC928 IC5400 IC950 IC808 IC810 IC910 DT7150 IC5100 (mm) (mm/t) SPMT 100404R-HQ-M 10.20 4.23 0.40 • • • 4.00-8.00 0.08-0.15 SPMT 100408R-HQ-M 10.20 4.23 0.60 • • • • 4.00-8.00 0.08-0.15 SPMT 100408TR-HQ-M 10.20 4.23 0.80 • • • • • • • • 4.00-8.00 0.10-0.20 SPMT 100416R-HQ-M 10.20 4.23 1.60 • 4.00-8.00 0.10-0.20 MILLING INSERTS • For cutting speed recommendations, see pages 462-498 For tools, see pages: E90SP (16) • F90SP-10 (169) • SE-FT (222) • SM-FT (222) • SPK (209) • SSB (310) ...TR-HQ-M ...R-HQ-M Rd° HQ XPMT-HQ Square Inserts with 2 l Right- or Left-Hand Cutting HQ Edges for General Use r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l S r IC28 IC328 IC928 IC950 IC910 (mm) (mm/t) XPMT 100408-HQ 10.20 4.12 0.60 • • • 4.00-8.00 0.07-0.12 XPMT 100408T-HQ 10.20 4.12 0.60 • • 4.00-8.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: E90AC (29) • E90SP (16) • ETS (291) • F90SP-10 (169) • FDN (297) • FST (309) • SDN (302) • SE-FT (222) • SM-FT (222) • SPK (209) • SSB (310) XPMT 100408-HQ XPMT 100408T-HQ SDMT-PDN-RM General Use Inserts with Four Helical l Cutting Edges for 90°Shoulder Milling r S Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation l S r IC328 IC928 IC910 (mm) (mm/t) SDMT 1205PDN-RM-M 12.70 5.00 0.80 • • • 4.00-10.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90SD-12 (172) 426 ISCAR
