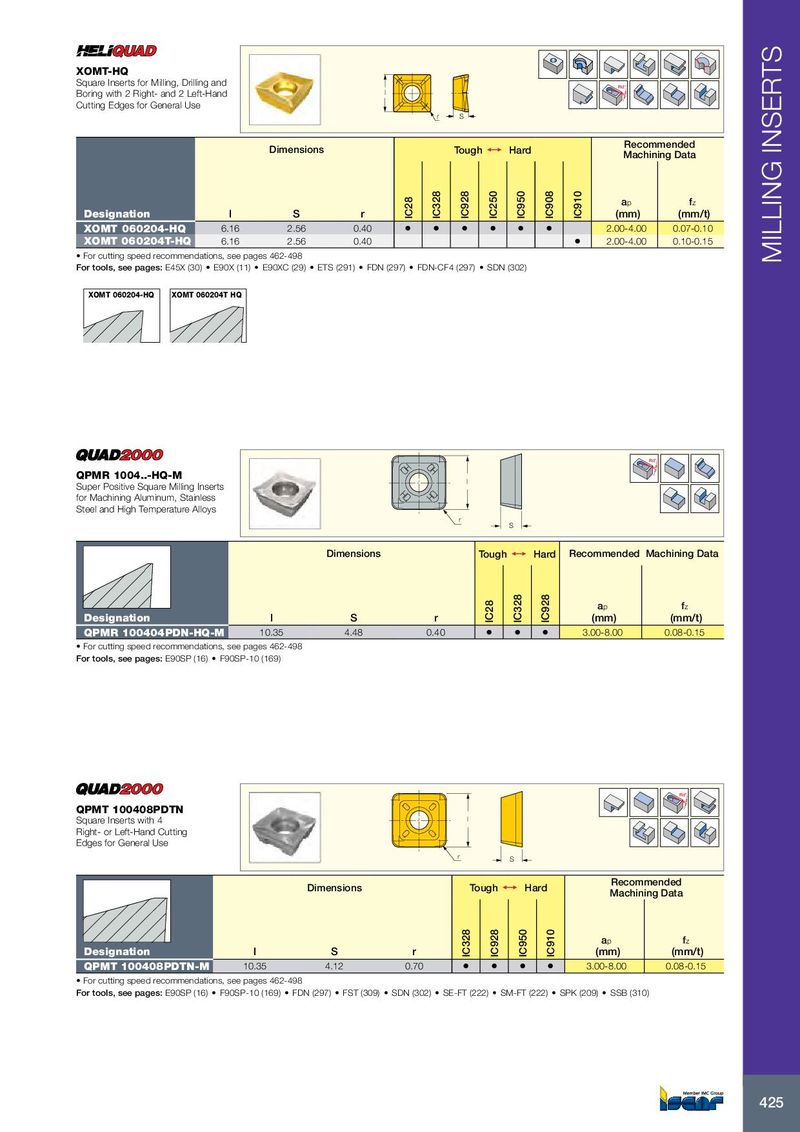

Каталог Iscar вращающийся инструмент 2017 - страница 429

XOMT-HQ Square Inserts for Milling, Drilling and Rd° Boring with 2 Right- and 2 Left-Hand l Cutting Edges for General Use r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l S r IC28 IC328 IC928 IC250 IC950 IC908 IC910 (mm) (mm/t) XOMT 060204-HQ 6.16 2.56 0.40 • • • • • • 2.00-4.00 0.07-0.10 XOMT 060204T-HQ 6.16 2.56 0.40 • 2.00-4.00 0.10-0.15 • For cutting speed recommendations, see pages 462-498 MILLING INSERTS For tools, see pages: E45X (30) • E90X (11) • E90XC (29) • ETS (291) • FDN (297) • FDN-CF4 (297) • SDN (302) XOMT 060204-HQ XOMT 060204T HQ Rd° QPMR 1004..-HQ-M l Super Positive Square Milling Inserts for Machining Aluminum, Stainless Steel and High Temperature Alloys r S Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation l S r IC28 IC328 IC928 (mm) (mm/t) QPMR 100404PDN-HQ-M 10.35 4.48 0.40 • • • 3.00-8.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: E90SP (16) • F90SP-10 (169) Rd° QPMT 100408PDTN Square Inserts with 4 l Right- or Left-Hand Cutting Edges for General Use r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l S r IC328 IC928 IC950 IC910 (mm) (mm/t) QPMT 100408PDTN-M 10.35 4.12 0.70 • • • • 3.00-8.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: E90SP (16) • F90SP-10 (169) • FDN (297) • FST (309) • SDN (302) • SE-FT (222) • SM-FT (222) • SPK (209) • SSB (310) 425
