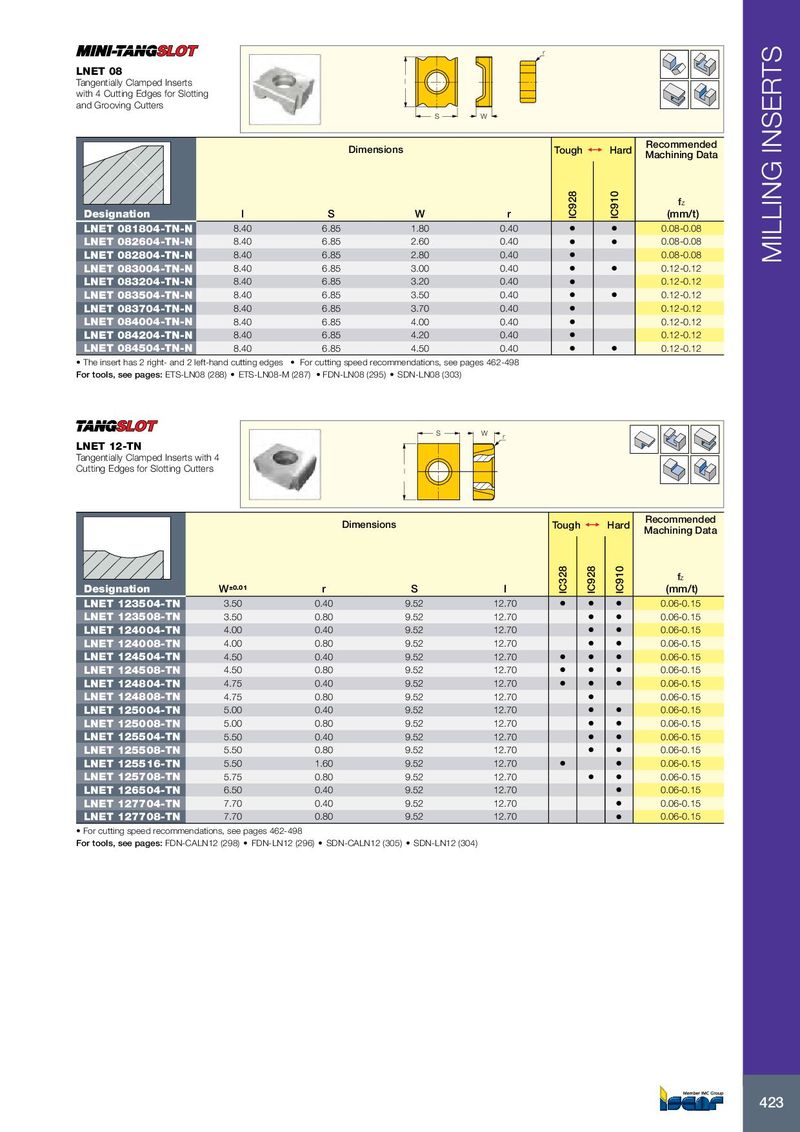

Каталог Iscar вращающийся инструмент 2017 - страница 427

r LNET 08 Tangentially Clamped Inserts l with 4 Cutting Edges for Slotting and Grooving Cutters S W Recommended Dimensions Tough 1  Hard Machining Data f z Designation l S W r IC928 IC910 (mm/t) LNET 081804-TN-N 8.40 6.85 1.80 0.40 • • 0.08-0.08 LNET 082604-TN-N 8.40 6.85 2.60 0.40 • • 0.08-0.08 LNET 082804-TN-N 8.40 6.85 2.80 0.40 • 0.08-0.08 MILLING INSERTS LNET 083004-TN-N 8.40 6.85 3.00 0.40 • • 0.12-0.12 LNET 083204-TN-N 8.40 6.85 3.20 0.40 • 0.12-0.12 LNET 083504-TN-N 8.40 6.85 3.50 0.40 • • 0.12-0.12 LNET 083704-TN-N 8.40 6.85 3.70 0.40 • 0.12-0.12 LNET 084004-TN-N 8.40 6.85 4.00 0.40 • 0.12-0.12 LNET 084204-TN-N 8.40 6.85 4.20 0.40 • 0.12-0.12 LNET 084504-TN-N 8.40 6.85 4.50 0.40 • • 0.12-0.12 • The insert has 2 right- and 2 left-hand cutting edges • For cutting speed recommendations, see pages 462-498 For tools, see pages: ETS-LN08 (288) • ETS-LN08-M (287) • FDN-LN08 (295) • SDN-LN08 (303) S W r LNET 12-TN Tangentially Clamped Inserts with 4 Cutting Edges for Slotting Cutters l Recommended Dimensions Tough 1  Hard Machining Data f z Designation W ±0.01 r S l IC328 IC928 IC910 (mm/t) LNET 123504-TN 3.50 0.40 9.52 12.70 • • • 0.06-0.15 LNET 123508-TN 3.50 0.80 9.52 12.70 • • 0.06-0.15 LNET 124004-TN 4.00 0.40 9.52 12.70 • • 0.06-0.15 LNET 124008-TN 4.00 0.80 9.52 12.70 • • 0.06-0.15 LNET 124504-TN 4.50 0.40 9.52 12.70 • • • 0.06-0.15 LNET 124508-TN 4.50 0.80 9.52 12.70 • • • 0.06-0.15 LNET 124804-TN 4.75 0.40 9.52 12.70 • • • 0.06-0.15 LNET 124808-TN 4.75 0.80 9.52 12.70 • 0.06-0.15 LNET 125004-TN 5.00 0.40 9.52 12.70 • • 0.06-0.15 LNET 125008-TN 5.00 0.80 9.52 12.70 • • 0.06-0.15 LNET 125504-TN 5.50 0.40 9.52 12.70 • • 0.06-0.15 LNET 125508-TN 5.50 0.80 9.52 12.70 • • 0.06-0.15 LNET 125516-TN 5.50 1.60 9.52 12.70 • • 0.06-0.15 LNET 125708-TN 5.75 0.80 9.52 12.70 • • 0.06-0.15 LNET 126504-TN 6.50 0.40 9.52 12.70 • 0.06-0.15 LNET 127704-TN 7.70 0.40 9.52 12.70 • 0.06-0.15 LNET 127708-TN 7.70 0.80 9.52 12.70 • 0.06-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: FDN-CALN12 (298) • FDN-LN12 (296) • SDN-CALN12 (305) • SDN-LN12 (304) 423
