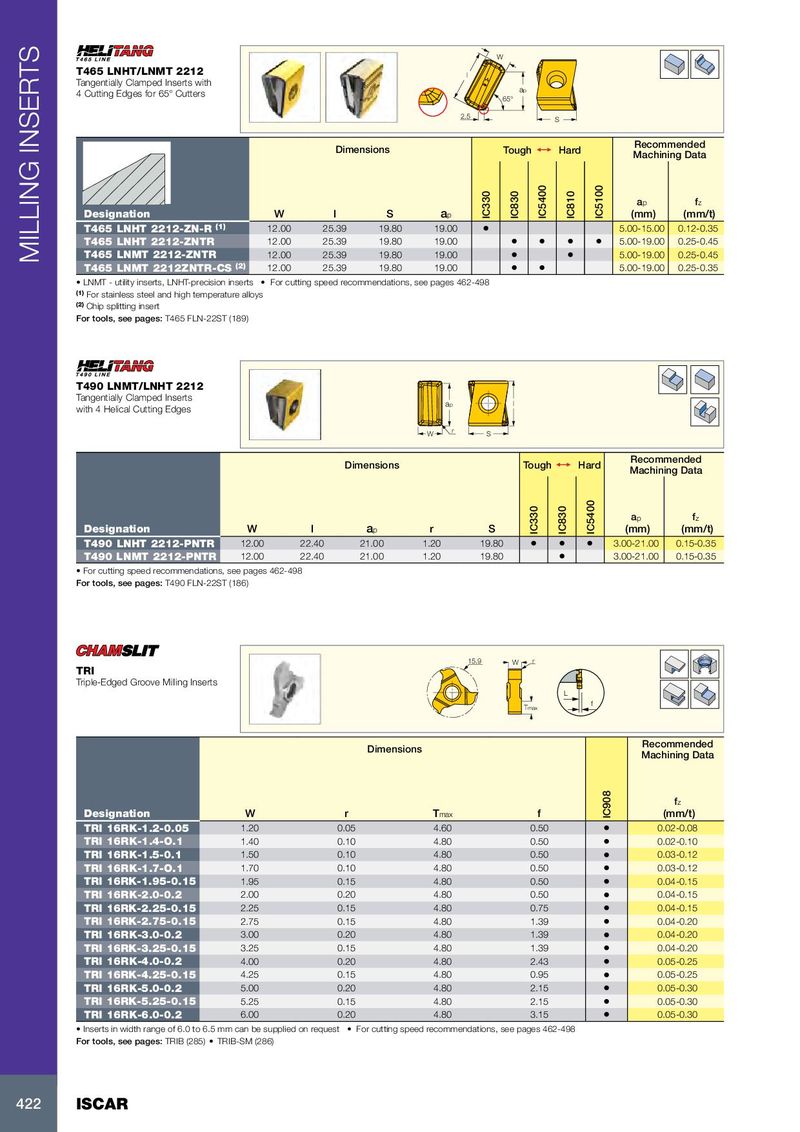

Каталог Iscar вращающийся инструмент 2017 - страница 426

W T465 LNHT/LNMT 2212 l Tangentially Clamped Inserts with ap 4 Cutting Edges for 65° Cutters 65° 2.5 S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S a p IC330 IC830 IC5400 IC810 IC5100 (mm) (mm/t) T465 LNHT 2212-ZN-R (1) 12.00 25.39 19.80 19.00 • 5.00-15.00 0.12-0.35 T465 LNHT 2212-ZNTR 12.00 25.39 19.80 19.00 • • • • 5.00-19.00 0.25-0.45 T465 LNMT 2212-ZNTR 12.00 25.39 19.80 19.00 MILLING INSERTS • • 5.00-19.00 0.25-0.45 T465 LNMT 2212ZNTR-CS (2) 12.00 25.39 19.80 19.00 • • 5.00-19.00 0.25-0.35 • LNMT - utility inserts, LNHT-precision inserts • For cutting speed recommendations, see pages 462-498 (1) For stainless steel and high temperature alloys (2) Chip splitting insert For tools, see pages: T465 FLN-22ST (189) T490 LNMT/LNHT 2212 Tangentially Clamped Inserts ap l with 4 Helical Cutting Edges W r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p r S IC330 IC830 IC5400 (mm) (mm/t) T490 LNHT 2212-PNTR 12.00 22.40 21.00 1.20 19.80 • • • 3.00-21.00 0.15-0.35 T490 LNMT 2212-PNTR 12.00 22.40 21.00 1.20 19.80 • 3.00-21.00 0.15-0.35 • For cutting speed recommendations, see pages 462-498 For tools, see pages: T490 FLN-22ST (186) 15.9 W r TRI Triple-Edged Groove Milling Inserts H L f Tmax Recommended Dimensions Machining Data f z Designation W r T max f IC908 (mm/t) TRI 16RK-1.2-0.05 1.20 0.05 4.60 0.50 • 0.02-0.08 TRI 16RK-1.4-O.1 1.40 0.10 4.80 0.50 • 0.02-0.10 TRI 16RK-1.5-0.1 1.50 0.10 4.80 0.50 • 0.03-0.12 TRI 16RK-1.7-O.1 1.70 0.10 4.80 0.50 • 0.03-0.12 TRI 16RK-1.95-0.15 1.95 0.15 4.80 0.50 • 0.04-0.15 TRI 16RK-2.0-0.2 2.00 0.20 4.80 0.50 • 0.04-0.15 TRI 16RK-2.25-0.15 2.25 0.15 4.80 0.75 • 0.04-0.15 TRI 16RK-2.75-0.15 2.75 0.15 4.80 1.39 • 0.04-0.20 TRI 16RK-3.0-0.2 3.00 0.20 4.80 1.39 • 0.04-0.20 TRI 16RK-3.25-0.15 3.25 0.15 4.80 1.39 • 0.04-0.20 TRI 16RK-4.0-0.2 4.00 0.20 4.80 2.43 • 0.05-0.25 TRI 16RK-4.25-0.15 4.25 0.15 4.80 0.95 • 0.05-0.25 TRI 16RK-5.0-0.2 5.00 0.20 4.80 2.15 • 0.05-0.30 TRI 16RK-5.25-0.15 5.25 0.15 4.80 2.15 • 0.05-0.30 TRI 16RK-6.0-0.2 6.00 0.20 4.80 3.15 • 0.05-0.30 • Inserts in width range of 6.0 to 6.5 mm can be supplied on request • For cutting speed recommendations, see pages 462-498 For tools, see pages: TRIB (285) • TRIB-SM (286) 422 ISCAR
