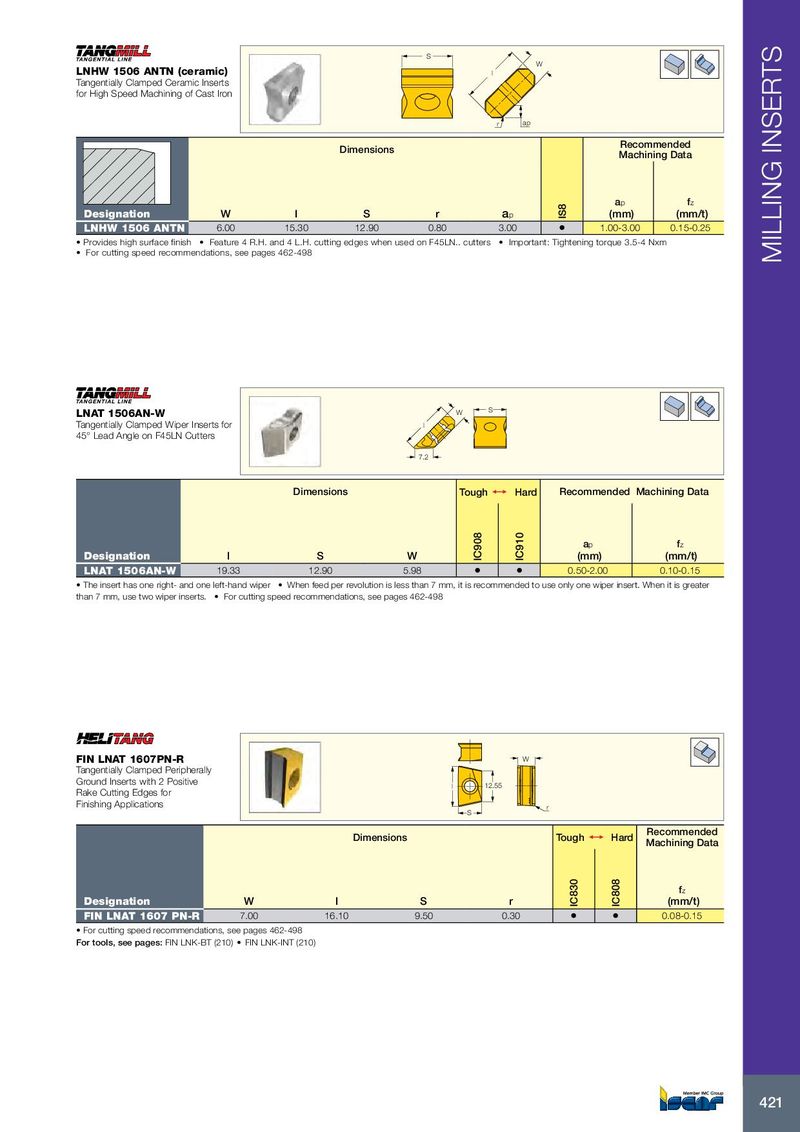

S W LNHW 1506 ANTN (ceramic) l Tangentially Clamped Ceramic Inserts for High Speed Machining of Cast Iron r ap Recommended Dimensions Machining Data a p f z Designation W l S r a p IS8 (mm) (mm/t) LNHW 1506 ANTN 6.00 15.30 12.90 0.80 3.00 • 1.00-3.00 0.15-0.25 • Provides high surface finish • Feature 4 R.H. and 4 L.H. cutting edges when used on F45LN.. cutters • Important: Tightening torque 3.5-4 Nxm • For cutting speed recommendations, see pages 462-498 MILLING INSERTS LNAT 1506AN-W W S Tangentially Clamped Wiper Inserts for l 45° Lead Angle on F45LN Cutters 7.2 Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation l S W IC908 IC910 (mm) (mm/t) LNAT 1506AN-W 19.33 12.90 5.98 • • 0.50-2.00 0.10-0.15 • The insert has one right- and one left-hand wiper • When feed per revolution is less than 7 mm, it is recommended to use only one wiper insert. When it is greater than 7 mm, use two wiper inserts. • For cutting speed recommendations, see pages 462-498 FIN LNAT 1607PN-R W Tangentially Clamped Peripherally Ground Inserts with 2 Positive l 12.55 Rake Cutting Edges for Finishing Applications r S Recommended Dimensions Tough 1  Hard Machining Data f z Designation W l S r IC830 IC808 (mm/t) FIN LNAT 1607 PN-R 7.00 16.10 9.50 0.30 • • 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: FIN LNK-BT (210) • FIN LNK-INT (210) 421
