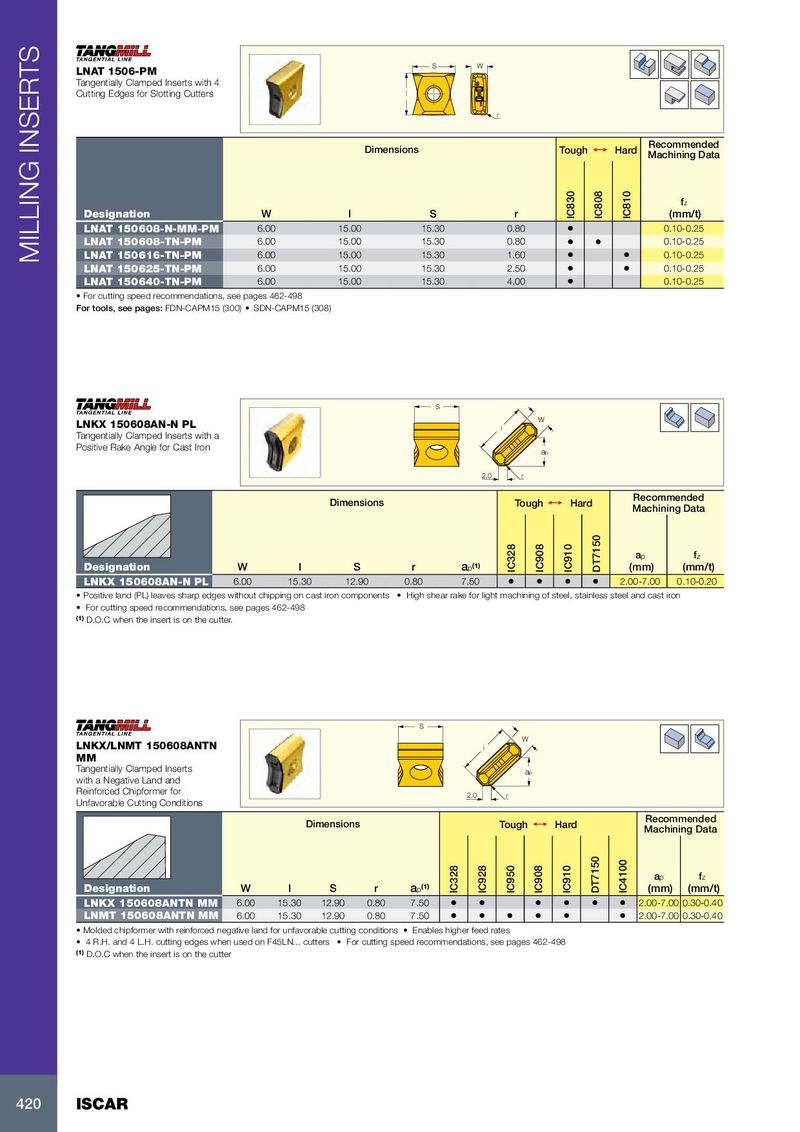

S W LNAT 1506-PM Tangentially Clamped Inserts with 4 Cutting Edges for Slotting Cutters l r Recommended Dimensions Tough 1  Hard Machining Data f z Designation W l S r IC830 IC808 IC810 (mm/t) LNAT 150608-N-MM-PM 6.00 15.00 15.30 0.80 • 0.10-0.25 LNAT 150608-TN-PM 6.00 15.00 15.30 0.80 • • 0.10-0.25 LNAT 150616-TN-PM 6.00 15.00 15.30 1.60 0.10-0.25 MILLING INSERTS • • LNAT 150625-TN-PM 6.00 15.00 15.30 2.50 • • 0.10-0.25 LNAT 150640-TN-PM 6.00 15.00 15.30 4.00 • 0.10-0.25 • For cutting speed recommendations, see pages 462-498 For tools, see pages: FDN-CAPM15 (300) • SDN-CAPM15 (308) S W LNKX 150608AN-N PL l Tangentially Clamped Inserts with a Positive Rake Angle for Cast Iron ap 2.0 r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC328 IC908 IC910 DT7150 (mm) (mm/t) LNKX 150608AN-N PL 6.00 15.30 12.90 0.80 7.50 • • • • 2.00-7.00 0.10-0.20 • Positive land (PL) leaves sharp edges without chipping on cast iron components • High shear rake for light machining of steel, stainless steel and cast iron • For cutting speed recommendations, see pages 462-498 (1) D.O.C when the insert is on the cutter. S W LNKX/LNMT 150608ANTN l MM Tangentially Clamped Inserts ap with a Negative Land and Reinforced Chipformer for 2.0 r Unfavorable Cutting Conditions Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC328 IC928 IC950 IC908 IC910 DT7150 IC4100 (mm) (mm/t) LNKX 150608ANTN MM 6.00 15.30 12.90 0.80 7.50 • • • • • • 2.00-7.00 0.30-0.40 LNMT 150608ANTN MM 6.00 15.30 12.90 0.80 7.50 • • • • • • 2.00-7.00 0.30-0.40 • Molded chipformer with reinforced negative land for unfavorable cutting conditions • Enables higher feed rates • 4 R.H. and 4 L.H. cutting edges when used on F45LN... cutters • For cutting speed recommendations, see pages 462-498 (1) D.O.C when the insert is on the cutter 420 ISCAR
