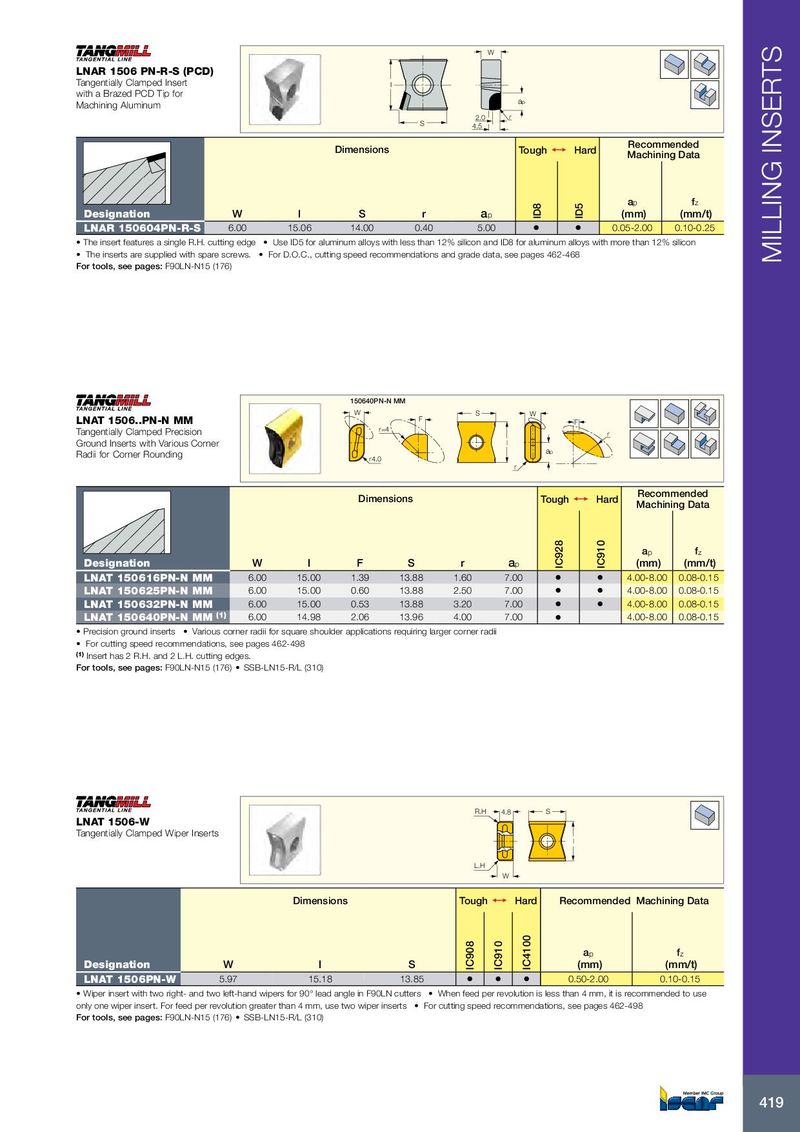

W LNAR 1506 PN-R-S (PCD) Tangentially Clamped Insert I with a Brazed PCD Tip for ap Machining Aluminum 2.0 r S 4.5 Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p ID8 ID5 (mm) (mm/t) LNAR 150604PN-R-S 6.00 15.06 14.00 0.40 5.00 • • 0.05-2.00 0.10-0.25 • The insert features a single R.H. cutting edge • Use ID5 for aluminum alloys with less than 12% silicon and ID8 for aluminum alloys with more than 12% silicon • The inserts are supplied with spare screws. • For D.O.C., cutting speed recommendations and grade data, see pages 462-468 MILLING INSERTS For tools, see pages: F90LN-N15 (176) 150640PN-N MM W S W LNAT 1506..PN-N MM F F Tangentially Clamped Precision r=4 r Ground Inserts with Various Corner l Radii for Corner Rounding ap r4.0 r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l F S r a p IC928 IC910 (mm) (mm/t) LNAT 150616PN-N MM 6.00 15.00 1.39 13.88 1.60 7.00 • • 4.00-8.00 0.08-0.15 LNAT 150625PN-N MM 6.00 15.00 0.60 13.88 2.50 7.00 • • 4.00-8.00 0.08-0.15 LNAT 150632PN-N MM 6.00 15.00 0.53 13.88 3.20 7.00 • • 4.00-8.00 0.08-0.15 LNAT 150640PN-N MM (1) 6.00 14.98 2.06 13.96 4.00 7.00 • 4.00-8.00 0.08-0.15 • Precision ground inserts • Various corner radii for square shoulder applications requiring larger corner radii • For cutting speed recommendations, see pages 462-498 (1) Insert has 2 R.H. and 2 L.H. cutting edges. For tools, see pages: F90LN-N15 (176) • SSB-LN15-R/L (310) R.H 4.8 S LNAT 1506-W Tangentially Clamped Wiper Inserts l L.H W Dimensions Tough 1  Hard Recommended Machining Data a p f z Designation W l S IC908 IC910 IC4100 (mm) (mm/t) LNAT 1506PN-W 5.97 15.18 13.85 • • • 0.50-2.00 0.10-0.15 • Wiper insert with two right- and two left-hand wipers for 90° lead angle in F90LN cutters • When feed per revolution is less than 4 mm, it is recommended to use only one wiper insert. For feed per revolution greater than 4 mm, use two wiper inserts • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90LN-N15 (176) • SSB-LN15-R/L (310) 419
