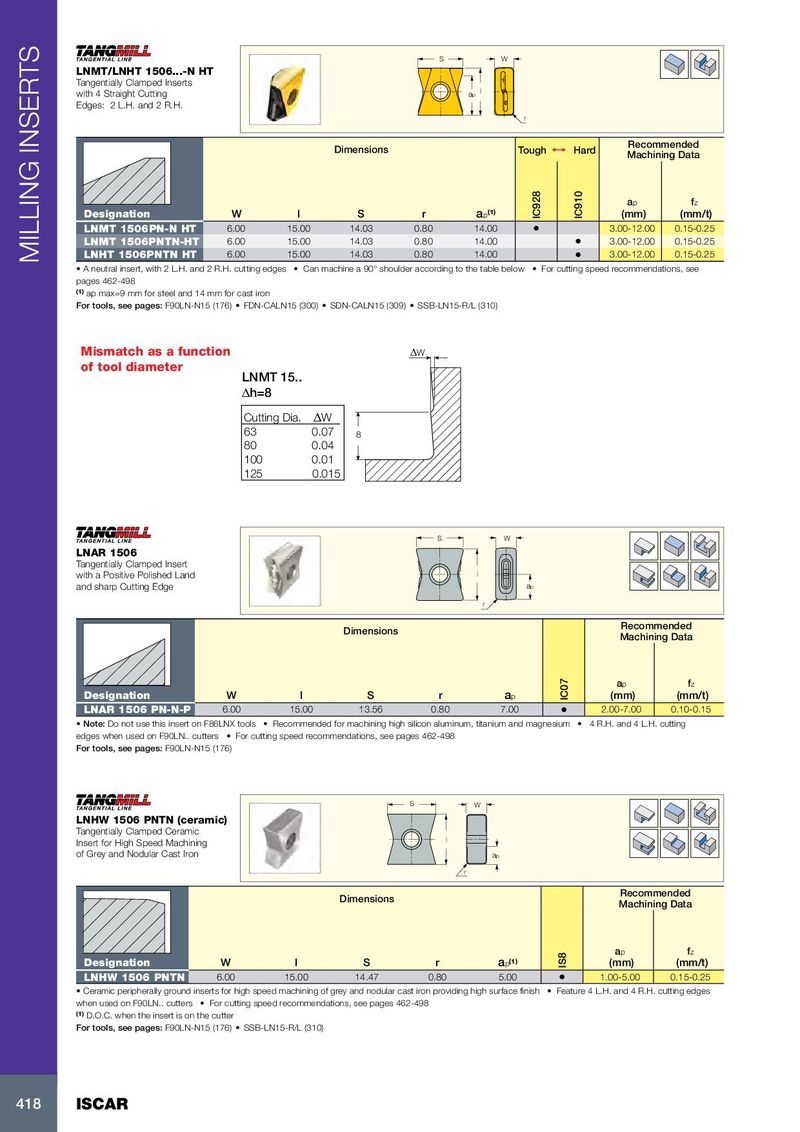

S W LNMT/LNHT 1506...-N HT Tangentially Clamped Inserts with 4 Straight Cutting ap l Edges: 2 L.H. and 2 R.H. r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC928 IC910 (mm) (mm/t) LNMT 1506PN-N HT 6.00 15.00 14.03 0.80 14.00 • 3.00-12.00 0.15-0.25 LNMT 1506PNTN-HT 6.00 15.00 14.03 0.80 14.00 • 3.00-12.00 0.15-0.25 LNHT 1506PNTN HT 6.00 15.00 14.03 0.80 14.00 MILLING INSERTS • 3.00-12.00 0.15-0.25 • A neutral insert, with 2 L.H. and 2 R.H. cutting edges • Can machine a 90° shoulder according to the table below • For cutting speed recommendations, see pages 462-498 (1) ap max=9 mm for steel and 14 mm for cast iron For tools, see pages: F90LN-N15 (176) • FDN-CALN15 (300) • SDN-CALN15 (309) • SSB-LN15-R/L (310) Mismatch as a function ΔW of tool diameter LNMT 15.. Δh=8 Cutting Dia. ΔW 63 0.07 8 80 0.04 100 0.01 125 0.015 S W LNAR 1506 Tangentially Clamped Insert with a Positive Polished Land l and sharp Cutting Edge ap r Recommended Dimensions Machining Data a p f z Designation W l S r a p IC07 (mm) (mm/t) LNAR 1506 PN-N-P 6.00 15.00 13.56 0.80 7.00 • 2.00-7.00 0.10-0.15 • Note: Do not use this insert on F86LNX tools • Recommended for machining high silicon aluminum, titanium and magnesium • 4 R.H. and 4 L.H. cutting edges when used on F90LN.. cutters • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90LN-N15 (176) S W LNHW 1506 PNTN (ceramic) Tangentially Clamped Ceramic Insert for High Speed Machining l of Grey and Nodular Cast Iron ap r Recommended Dimensions Machining Data a p f z Designation W l S r a p (1) IS8 (mm) (mm/t) LNHW 1506 PNTN 6.00 15.00 14.47 0.80 5.00 • 1.00-5.00 0.15-0.25 • Ceramic peripherally ground inserts for high speed machining of grey and nodular cast iron providing high surface finish • Feature 4 L.H. and 4 R.H. cutting edges when used on F90LN.. cutters • For cutting speed recommendations, see pages 462-498 (1) D.O.C. when the insert is on the cutter For tools, see pages: F90LN-N15 (176) • SSB-LN15-R/L (310) 418 ISCAR
