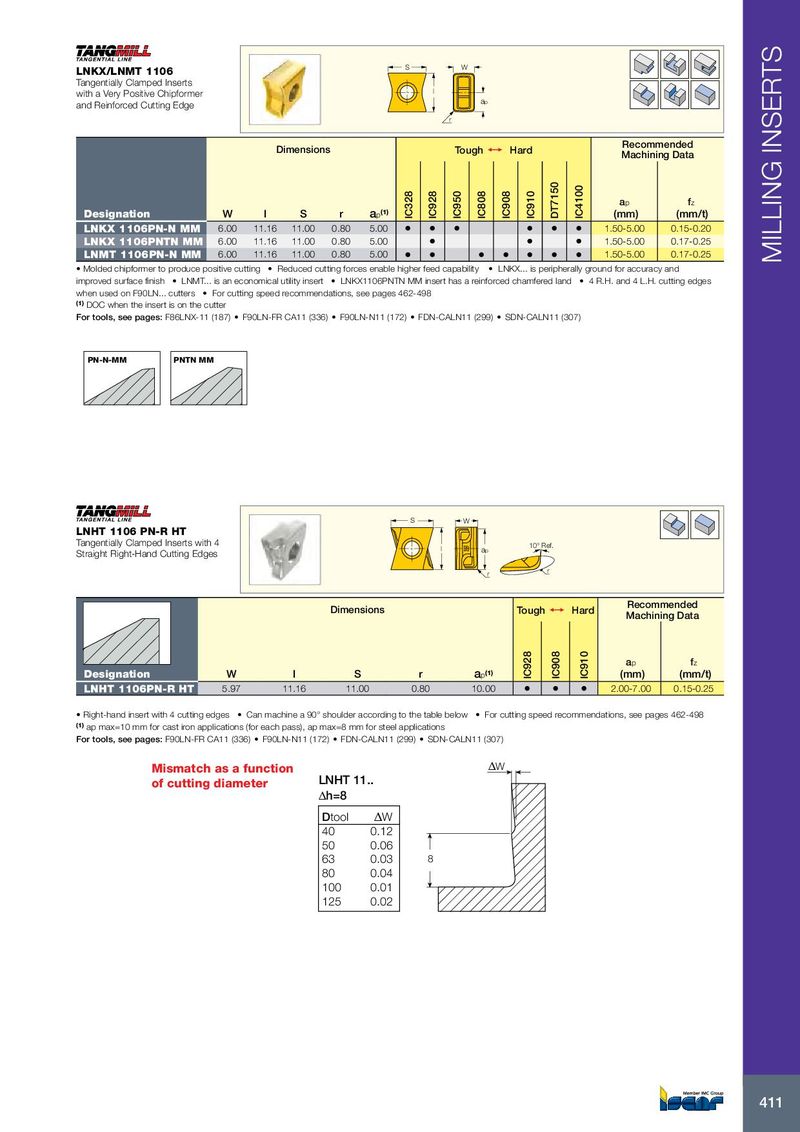

S W LNKX/LNMT 1106 Tangentially Clamped Inserts with a Very Positive Chipformer l ap and Reinforced Cutting Edge r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC328 IC928 IC950 IC808 IC908 IC910 DT7150 IC4100 (mm) (mm/t) LNKX 1106PN-N MM 6.00 11.16 11.00 0.80 5.00 • • • • • • 1.50-5.00 0.15-0.20 LNKX 1106PNTN MM 6.00 11.16 11.00 0.80 5.00 • • • 1.50-5.00 0.17-0.25 LNMT 1106PN-N MM 6.00 11.16 11.00 0.80 5.00 • • • • • • • 1.50-5.00 0.17-0.25 MILLING INSERTS • Molded chipformer to produce positive cutting • Reduced cutting forces enable higher feed capability • LNKX... is peripherally ground for accuracy and improved surface finish • LNMT... is an economical utility insert • LNKX1106PNTN MM insert has a reinforced chamfered land • 4 R.H. and 4 L.H. cutting edges when used on F90LN... cutters • For cutting speed recommendations, see pages 462-498 (1) DOC when the insert is on the cutter For tools, see pages: F86LNX-11 (187) • F90LN-FR CA11 (336) • F90LN-N11 (172) • FDN-CALN11 (299) • SDN-CALN11 (307) PN-N-MM PNTN MM S W LNHT 1106 PN-R HT Tangentially Clamped Inserts with 4 l 10° Ref. ap Straight Right-Hand Cutting Edges r r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC928 IC908 IC910 (mm) (mm/t) LNHT 1106PN-R HT 5.97 11.16 11.00 0.80 10.00 • • • 2.00-7.00 0.15-0.25 • Right-hand insert with 4 cutting edges • Can machine a 90° shoulder according to the table below • For cutting speed recommendations, see pages 462-498 (1) ap max=10 mm for cast iron applications (for each pass), ap max=8 mm for steel applications For tools, see pages: F90LN-FR CA11 (336) • F90LN-N11 (172) • FDN-CALN11 (299) • SDN-CALN11 (307) Mismatch as a function ΔW of cutting diameter LNHT 11.. Δh=8 Dtool ΔW 40 0.12 50 0.06 63 0.03 8 80 0.04 100 0.01 125 0.02 411
