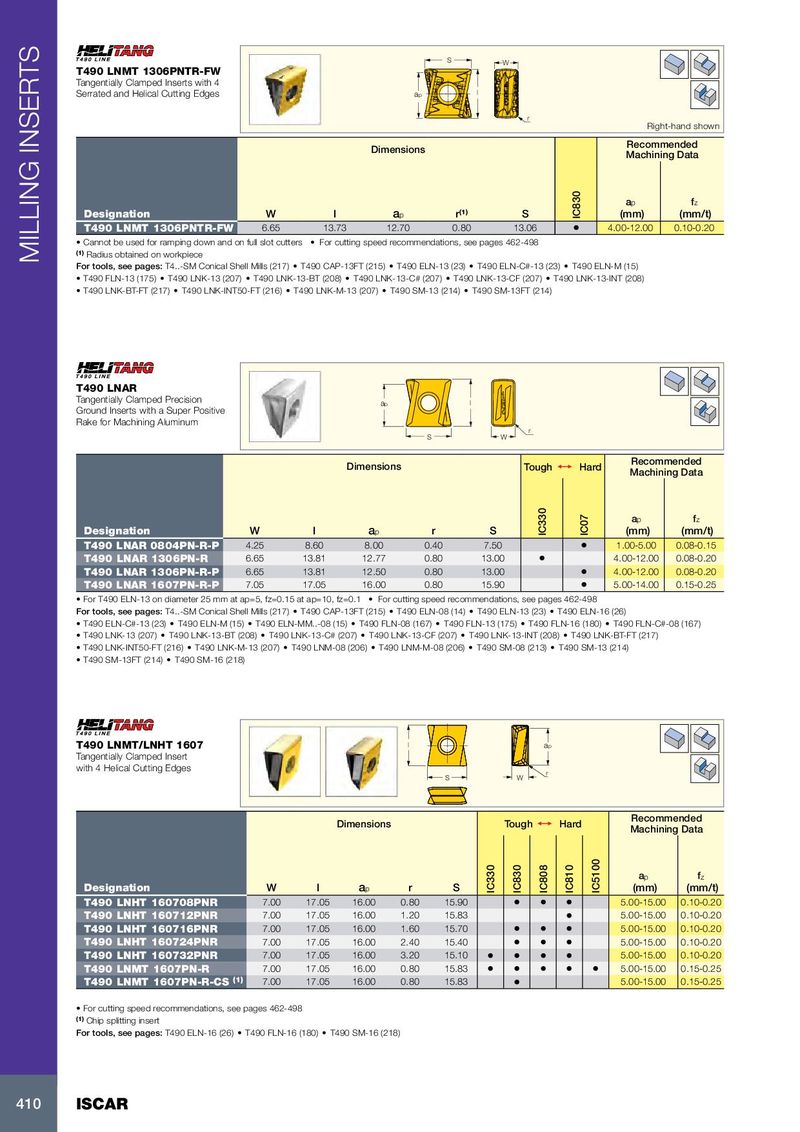

S W T490 LNMT 1306PNTR-FW Tangentially Clamped Inserts with 4 Serrated and Helical Cutting Edges ap l r Right-hand shown Recommended Dimensions Machining Data a p f z Designation W l a p r (1) S IC830 (mm) (mm/t) T490 LNMT 1306PNTR-FW 6.65 13.73 12.70 0.80 13.06 • 4.00-12.00 0.10-0.20 • Cannot be used for ramping down and on full slot cutters • For cutting speed recommendations, see pages 462-498 (1) Radius obtained on workpiece MILLING INSERTS For tools, see pages: T4..-SM Conical Shell Mills (217) • T490 CAP-13FT (215) • T490 ELN-13 (23) • T490 ELN-C#-13 (23) • T490 ELN-M (15) • T490 FLN-13 (175) • T490 LNK-13 (207) • T490 LNK-13-BT (208) • T490 LNK-13-C# (207) • T490 LNK-13-CF (207) • T490 LNK-13-INT (208) • T490 LNK-BT-FT (217) • T490 LNK-INT50-FT (216) • T490 LNK-M-13 (207) • T490 SM-13 (214) • T490 SM-13FT (214) T490 LNAR Tangentially Clamped Precision ap l Ground Inserts with a Super Positive Rake for Machining Aluminum r S W Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p r S IC330 IC07 (mm) (mm/t) T490 LNAR 0804PN-R-P 4.25 8.60 8.00 0.40 7.50 • 1.00-5.00 0.08-0.15 T490 LNAR 1306PN-R 6.65 13.81 12.77 0.80 13.00 • 4.00-12.00 0.08-0.20 T490 LNAR 1306PN-R-P 6.65 13.81 12.50 0.80 13.00 • 4.00-12.00 0.08-0.20 T490 LNAR 1607PN-R-P 7.05 17.05 16.00 0.80 15.90 • 5.00-14.00 0.15-0.25 • For T490 ELN-13 on diameter 25 mm at ap=5, fz=0.15 at ap=10, fz=0.1 • For cutting speed recommendations, see pages 462-498 For tools, see pages: T4..-SM Conical Shell Mills (217) • T490 CAP-13FT (215) • T490 ELN-08 (14) • T490 ELN-13 (23) • T490 ELN-16 (26) • T490 ELN-C#-13 (23) • T490 ELN-M (15) • T490 ELN-MM..-08 (15) • T490 FLN-08 (167) • T490 FLN-13 (175) • T490 FLN-16 (180) • T490 FLN-C#-08 (167) • T490 LNK-13 (207) • T490 LNK-13-BT (208) • T490 LNK-13-C# (207) • T490 LNK-13-CF (207) • T490 LNK-13-INT (208) • T490 LNK-BT-FT (217) • T490 LNK-INT50-FT (216) • T490 LNK-M-13 (207) • T490 LNM-08 (206) • T490 LNM-M-08 (206) • T490 SM-08 (213) • T490 SM-13 (214) • T490 SM-13FT (214) • T490 SM-16 (218) T490 LNMT/LNHT 1607 l ap Tangentially Clamped Insert with 4 Helical Cutting Edges r S W Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p r S IC330 IC830 IC808 IC810 IC5100 (mm) (mm/t) T490 LNHT 160708PNR 7.00 17.05 16.00 0.80 15.90 • • • 5.00-15.00 0.10-0.20 T490 LNHT 160712PNR 7.00 17.05 16.00 1.20 15.83 • 5.00-15.00 0.10-0.20 T490 LNHT 160716PNR 7.00 17.05 16.00 1.60 15.70 • • • 5.00-15.00 0.10-0.20 T490 LNHT 160724PNR 7.00 17.05 16.00 2.40 15.40 • • • 5.00-15.00 0.10-0.20 T490 LNHT 160732PNR 7.00 17.05 16.00 3.20 15.10 • • • • 5.00-15.00 0.10-0.20 T490 LNMT 1607PN-R 7.00 17.05 16.00 0.80 15.83 • • • • • 5.00-15.00 0.15-0.25 T490 LNMT 1607PN-R-CS (1) 7.00 17.05 16.00 0.80 15.83 • 5.00-15.00 0.15-0.25 • For cutting speed recommendations, see pages 462-498 (1) Chip splitting insert For tools, see pages: T490 ELN-16 (26) • T490 FLN-16 (180) • T490 SM-16 (218) 410 ISCAR
