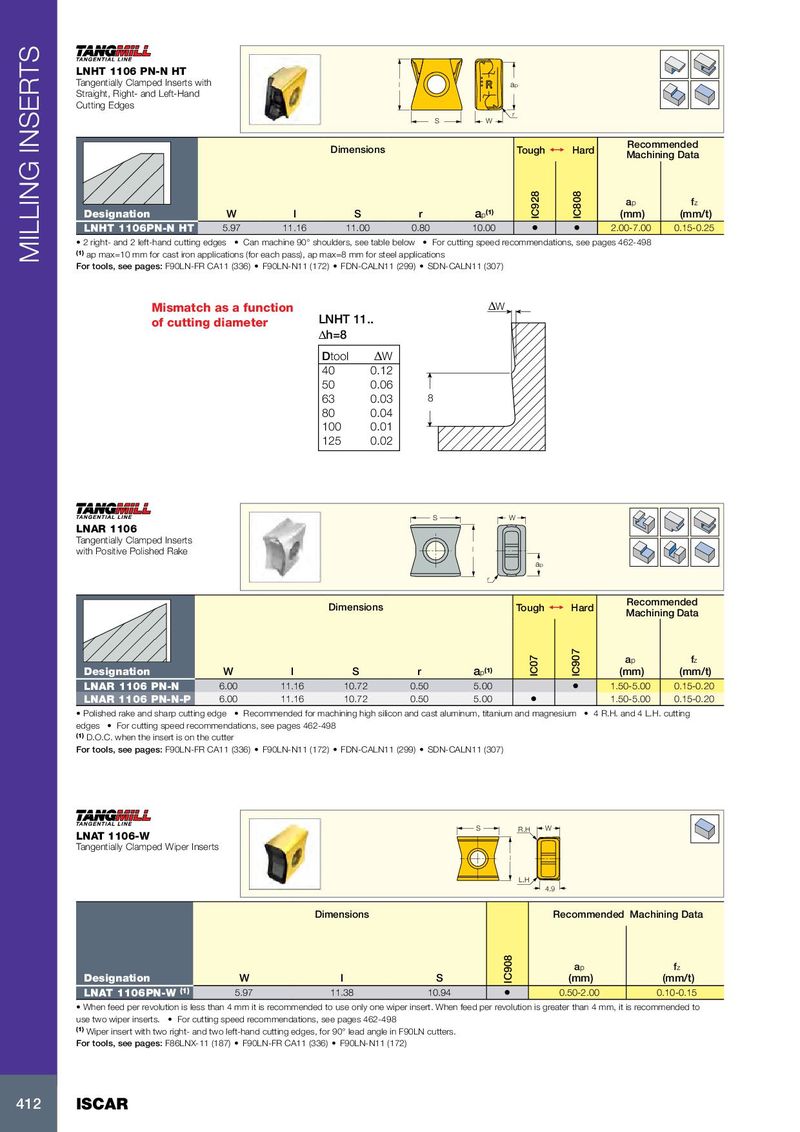

LNHT 1106 PN-N HT Tangentially Clamped Inserts with l ap Straight, Right- and Left-Hand Cutting Edges r S W Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC928 IC808 (mm) (mm/t) LNHT 1106PN-N HT 5.97 11.16 11.00 0.80 10.00 • • 2.00-7.00 0.15-0.25 • 2 right- and 2 left-hand cutting edges • Can machine 90° shoulders, see table below • For cutting speed recommendations, see pages 462-498 (1) ap max=10 mm for cast iron applications (for each pass), ap max=8 mm for steel applications MILLING INSERTS For tools, see pages: F90LN-FR CA11 (336) • F90LN-N11 (172) • FDN-CALN11 (299) • SDN-CALN11 (307) Mismatch as a function ΔW of cutting diameter LNHT 11.. Δh=8 Dtool ΔW 40 0.12 50 0.06 63 0.03 8 80 0.04 100 0.01 125 0.02 S W LNAR 1106 Tangentially Clamped Inserts with Positive Polished Rake l ap r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r a p (1) IC07 IC907 (mm) (mm/t) LNAR 1106 PN-N 6.00 11.16 10.72 0.50 5.00 • 1.50-5.00 0.15-0.20 LNAR 1106 PN-N-P 6.00 11.16 10.72 0.50 5.00 • 1.50-5.00 0.15-0.20 • Polished rake and sharp cutting edge • Recommended for machining high silicon and cast aluminum, titanium and magnesium • 4 R.H. and 4 L.H. cutting edges • For cutting speed recommendations, see pages 462-498 (1) D.O.C. when the insert is on the cutter For tools, see pages: F90LN-FR CA11 (336) • F90LN-N11 (172) • FDN-CALN11 (299) • SDN-CALN11 (307) S R.H W LNAT 1106-W Tangentially Clamped Wiper Inserts l L.H 4.9 Dimensions Recommended Machining Data a p f z Designation W l S IC908 (mm) (mm/t) LNAT 1106PN-W (1) 5.97 11.38 10.94 • 0.50-2.00 0.10-0.15 • When feed per revolution is less than 4 mm it is recommended to use only one wiper insert. When feed per revolution is greater than 4 mm, it is recommended to use two wiper inserts. • For cutting speed recommendations, see pages 462-498 (1) Wiper insert with two right- and two left-hand cutting edges, for 90° lead angle in F90LN cutters. For tools, see pages: F86LNX-11 (187) • F90LN-FR CA11 (336) • F90LN-N11 (172) 412 ISCAR
