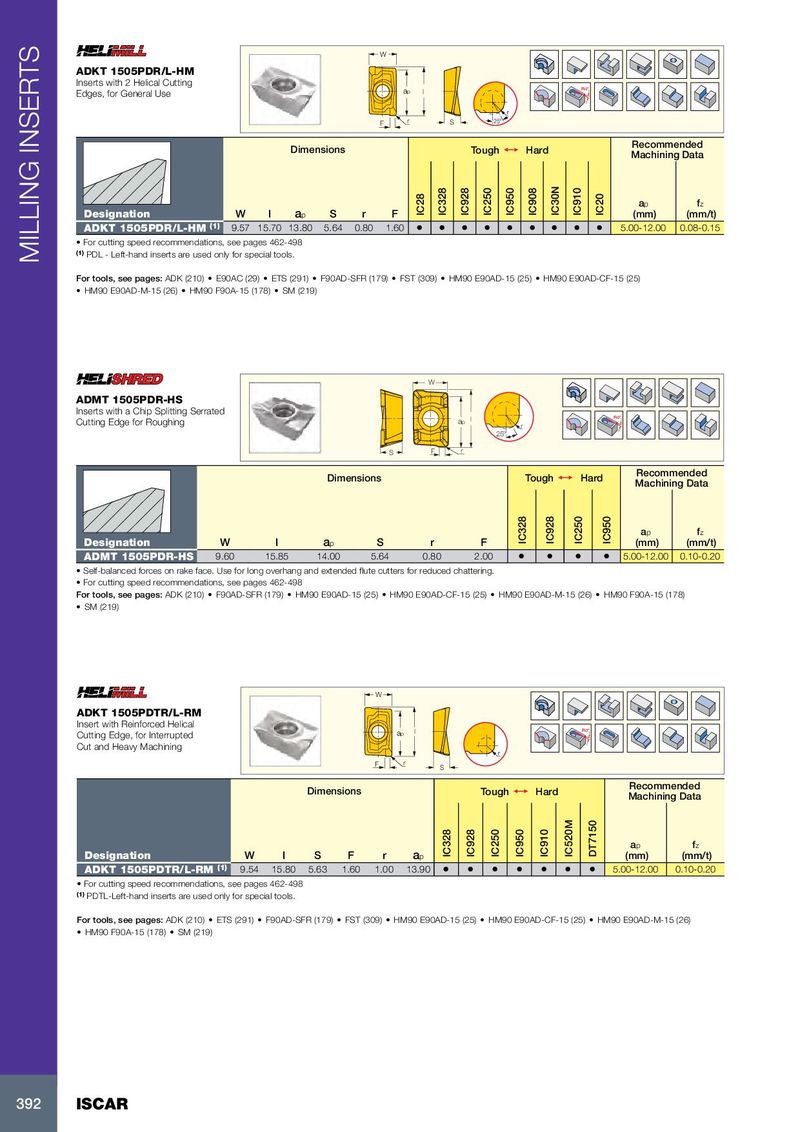

W ADKT 1505PDR/L-HM Inserts with 2 Helical Cutting Edges, for General Use ap l Rd° r F r S 25° Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC28 IC328 IC928 IC250 IC950 IC908 IC30N IC910 IC20 (mm) (mm/t) ADKT 1505PDR/L-HM (1) 9.57 15.70 13.80 5.64 0.80 1.60 • • • • • • • • • 5.00-12.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 (1) PDL - Left-hand inserts are used only for special tools. MILLING INSERTS For tools, see pages: ADK (210) • E90AC (29) • ETS (291) • F90AD-SFR (179) • FST (309) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) • SM (219) W ADMT 1505PDR-HS Inserts with a Chip Splitting Serrated Rd° Cutting Edge for Roughing ap l r 25° S F r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC328 IC928 IC250 IC950 (mm) (mm/t) ADMT 1505PDR-HS 9.60 15.85 14.00 5.64 0.80 2.00 • • • • 5.00-12.00 0.10-0.20 • Self-balanced forces on rake face. Use for long overhang and extended flute cutters for reduced chattering. • For cutting speed recommendations, see pages 462-498 For tools, see pages: ADK (210) • F90AD-SFR (179) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) • SM (219) W ADKT 1505PDTR/L-RM Insert with Reinforced Helical Rd° Cutting Edge, for Interrupted ap l Cut and Heavy Machining r F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S F r a p IC328 IC928 IC250 IC950 IC910 IC520M DT7150 (mm) (mm/t) ADKT 1505PDTR/L-RM (1) 9.54 15.80 5.63 1.60 1.00 13.90 • • • • • • • 5.00-12.00 0.10-0.20 • For cutting speed recommendations, see pages 462-498 (1) PDTL-Left-hand inserts are used only for special tools. For tools, see pages: ADK (210) • ETS (291) • F90AD-SFR (179) • FST (309) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) • SM (219) 392 ISCAR
