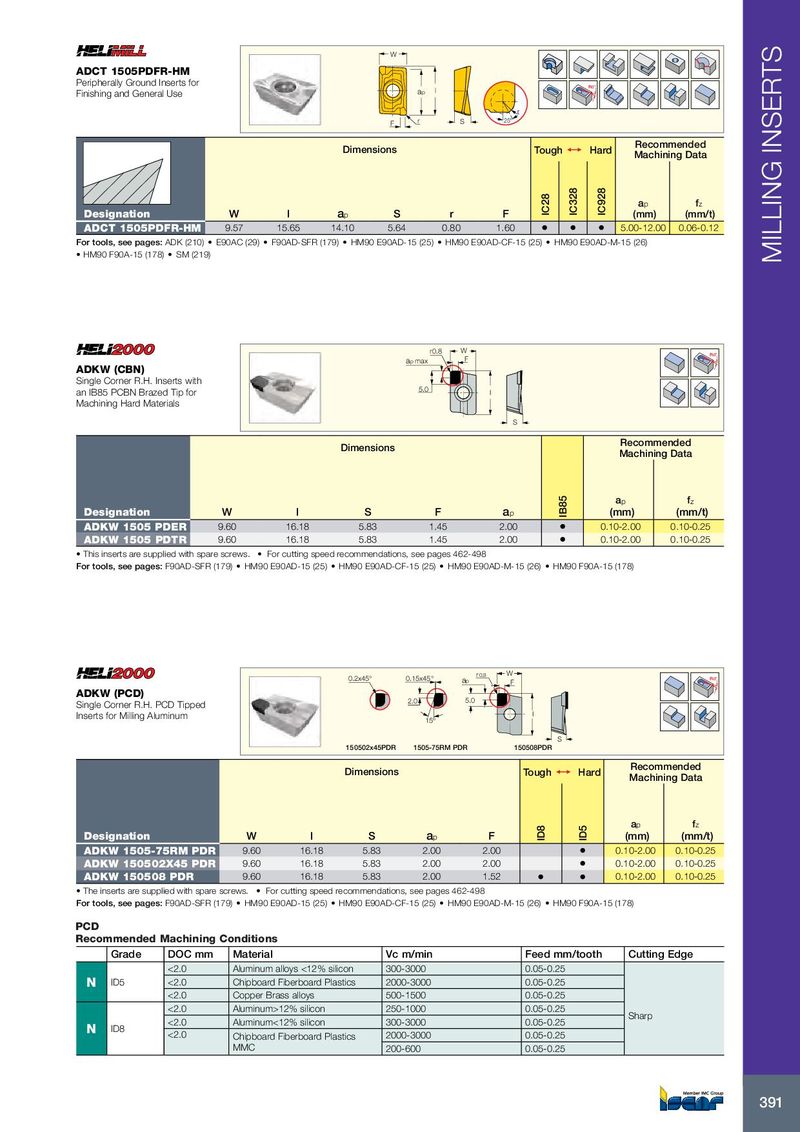

W ADCT 1505PDFR-HM Peripherally Ground Inserts for Rd° Finishing and General Use ap l r F r S 25° Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC28 IC328 IC928 (mm) (mm/t) ADCT 1505PDFR-HM 9.57 15.65 14.10 5.64 0.80 1.60 • • • 5.00-12.00 0.06-0.12 For tools, see pages: ADK (210) • E90AC (29) • F90AD-SFR (179) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) • SM (219) MILLING INSERTS r0.8 W Rd° ap max F ADKW (CBN) Single Corner R.H. Inserts with an IB85 PCBN Brazed Tip for 5.0 I Machining Hard Materials S Recommended Dimensions Machining Data a p f z Designation W l S F a p IB85 (mm) (mm/t) ADKW 1505 PDER 9.60 16.18 5.83 1.45 2.00 • 0.10-2.00 0.10-0.25 ADKW 1505 PDTR 9.60 16.18 5.83 1.45 2.00 • 0.10-2.00 0.10-0.25 • This inserts are supplied with spare screws. • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90AD-SFR (179) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) r0.8 W 0.2x45° 0.15x45° ap Rd° F ADKW (PCD) 2.0 5.0 Single Corner R.H. PCD Tipped Inserts for Milling Aluminum I 15º S 150502x45PDR 1505-75RM PDR 150508PDR Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S a p F ID8 ID5 (mm) (mm/t) ADKW 1505-75RM PDR 9.60 16.18 5.83 2.00 2.00 • 0.10-2.00 0.10-0.25 ADKW 150502X45 PDR 9.60 16.18 5.83 2.00 2.00 • 0.10-2.00 0.10-0.25 ADKW 150508 PDR 9.60 16.18 5.83 2.00 1.52 • • 0.10-2.00 0.10-0.25 • The inserts are supplied with spare screws. • For cutting speed recommendations, see pages 462-498 For tools, see pages: F90AD-SFR (179) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) PCD Recommended Machining Conditions Grade DOC mm Material Vc m/min Feed mm/tooth Cutting Edge <2.0 Aluminum alloys <12% silicon 300-3000 0.05-0.25 N ID5 <2.0 Chipboard Fiberboard Plastics 2000-3000 0.05-0.25 <2.0 Copper Brass alloys 500-1500 0.05-0.25 <2.0 Aluminum>12% silicon 250-1000 0.05-0.25 Sharp <2.0 Aluminum<12% silicon 300-3000 0.05-0.25 N ID8 <2.0 Chipboard Fiberboard Plastics 2000-3000 0.05-0.25 MMC 200-600 0.05-0.25 391
