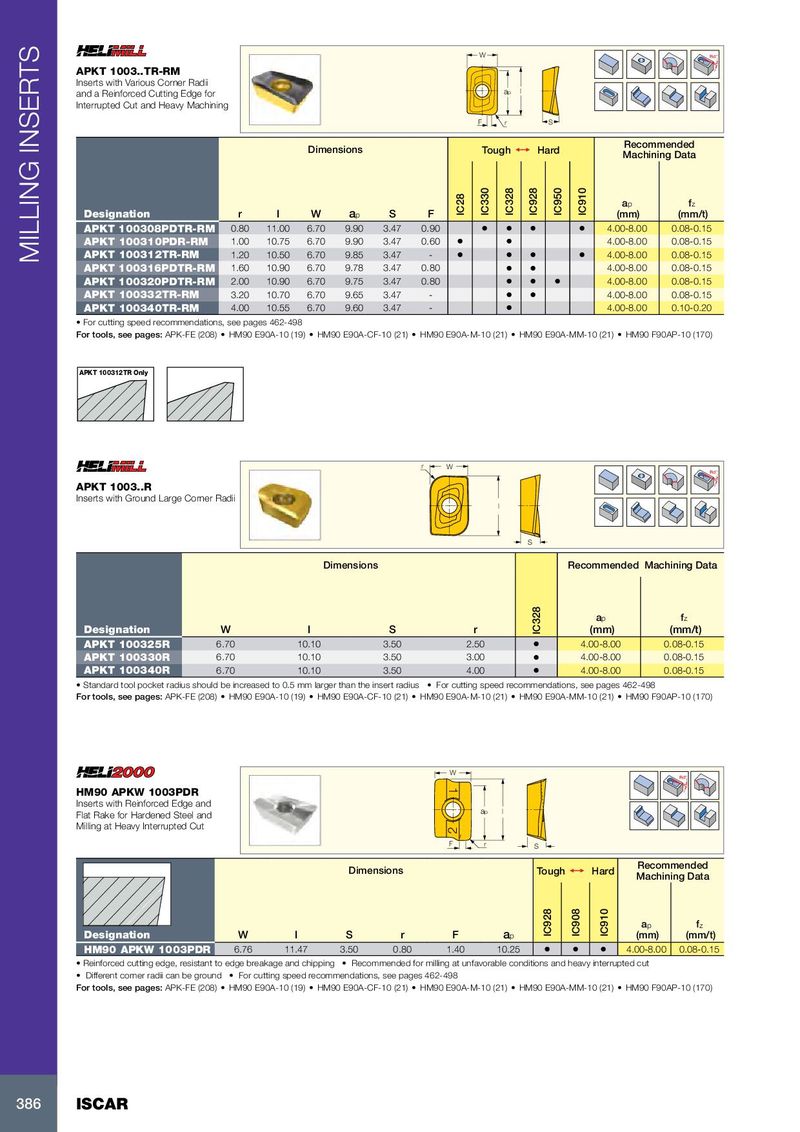

Каталог Iscar вращающийся инструмент 2017 - страница 390

W Rd° APKT 1003..TR-RM Inserts with Various Corner Radii and a Reinforced Cutting Edge for ap l Interrupted Cut and Heavy Machining F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation r l W a p S F IC28 IC330 IC328 IC928 IC950 IC910 (mm) (mm/t) APKT 100308PDTR-RM 0.80 11.00 6.70 9.90 3.47 0.90 • • • • 4.00-8.00 0.08-0.15 APKT 100310PDR-RM 1.00 10.75 6.70 9.90 3.47 0.60 • • 4.00-8.00 0.08-0.15 APKT 100312TR-RM 1.20 10.50 6.70 9.85 3.47 - MILLING INSERTS • • • • 4.00-8.00 0.08-0.15 APKT 100316PDTR-RM 1.60 10.90 6.70 9.78 3.47 0.80 • • 4.00-8.00 0.08-0.15 APKT 100320PDTR-RM 2.00 10.90 6.70 9.75 3.47 0.80 • • • 4.00-8.00 0.08-0.15 APKT 100332TR-RM 3.20 10.70 6.70 9.65 3.47 - • • 4.00-8.00 0.08-0.15 APKT 100340TR-RM 4.00 10.55 6.70 9.60 3.47 - • 4.00-8.00 0.10-0.20 • For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) • HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) APKT 100312TR Only r W Rd° APKT 1003..R Inserts with Ground Large Corner Radii l S Dimensions Recommended Machining Data a p f z Designation W l S r IC328 (mm) (mm/t) APKT 100325R 6.70 10.10 3.50 2.50 • 4.00-8.00 0.08-0.15 APKT 100330R 6.70 10.10 3.50 3.00 • 4.00-8.00 0.08-0.15 APKT 100340R 6.70 10.10 3.50 4.00 • 4.00-8.00 0.08-0.15 • Standard tool pocket radius should be increased to 0.5 mm larger than the insert radius • For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) • HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) W Rd° 1 HM90 APKW 1003PDR Inserts with Reinforced Edge and ap Flat Rake for Hardened Steel and l Milling at Heavy Interrupted Cut 2 F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S r F a p IC928 IC908 IC910 (mm) (mm/t) HM90 APKW 1003PDR 6.76 11.47 3.50 0.80 1.40 10.25 • • • 4.00-8.00 0.08-0.15 • Reinforced cutting edge, resistant to edge breakage and chipping • Recommended for milling at unfavorable conditions and heavy interrupted cut • Different corner radii can be ground • For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) • HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) 386 ISCAR
