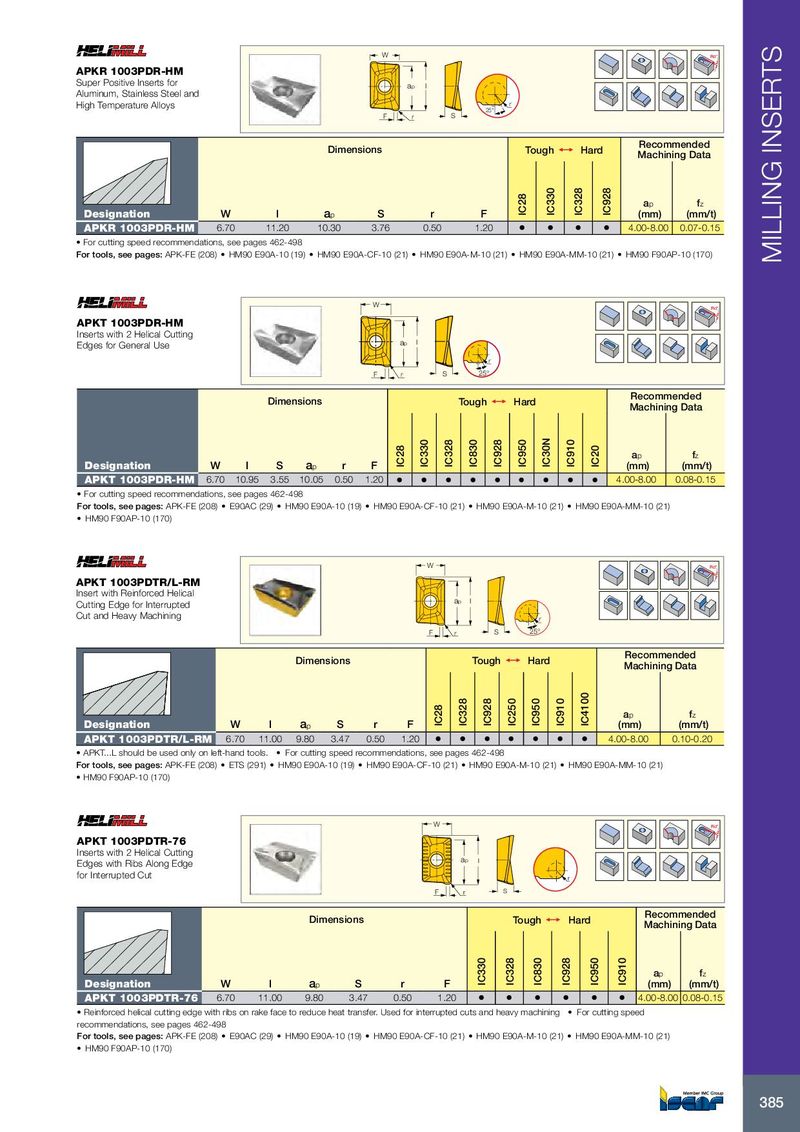

W Rd° APKR 1003PDR-HM Super Positive Inserts for ap I Aluminum, Stainless Steel and High Temperature Alloys r 25° F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC28 IC330 IC328 IC928 (mm) (mm/t) APKR 1003PDR-HM 6.70 11.20 10.30 3.76 0.50 1.20 • • • • 4.00-8.00 0.07-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) • HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) MILLING INSERTS W Rd° APKT 1003PDR-HM Inserts with 2 Helical Cutting Edges for General Use ap I r F r S 25° Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l S a p r F IC28 IC330 IC328 IC830 IC928 IC950 IC30N IC910 IC20 (mm) (mm/t) APKT 1003PDR-HM 6.70 10.95 3.55 10.05 0.50 1.20 • • • • • • • • • 4.00-8.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) • E90AC (29) • HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) W Rd° APKT 1003PDTR/L-RM Insert with Reinforced Helical ap I Cutting Edge for Interrupted Cut and Heavy Machining r F r S 25° Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC28 IC328 IC928 IC250 IC950 IC910 IC4100 (mm) (mm/t) APKT 1003PDTR/L-RM 6.70 11.00 9.80 3.47 0.50 1.20 • • • • • • • 4.00-8.00 0.10-0.20 • APKT...L should be used only on left-hand tools. • For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) • ETS (291) • HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) W Rd° APKT 1003PDTR-76 Inserts with 2 Helical Cutting ap Edges with Ribs Along Edge l for Interrupted Cut r F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC330 IC328 IC830 IC928 IC950 IC910 (mm) (mm/t) APKT 1003PDTR-76 6.70 11.00 9.80 3.47 0.50 1.20 • • • • • • 4.00-8.00 0.08-0.15 • Reinforced helical cutting edge with ribs on rake face to reduce heat transfer. Used for interrupted cuts and heavy machining • For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) • E90AC (29) • HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) 385
