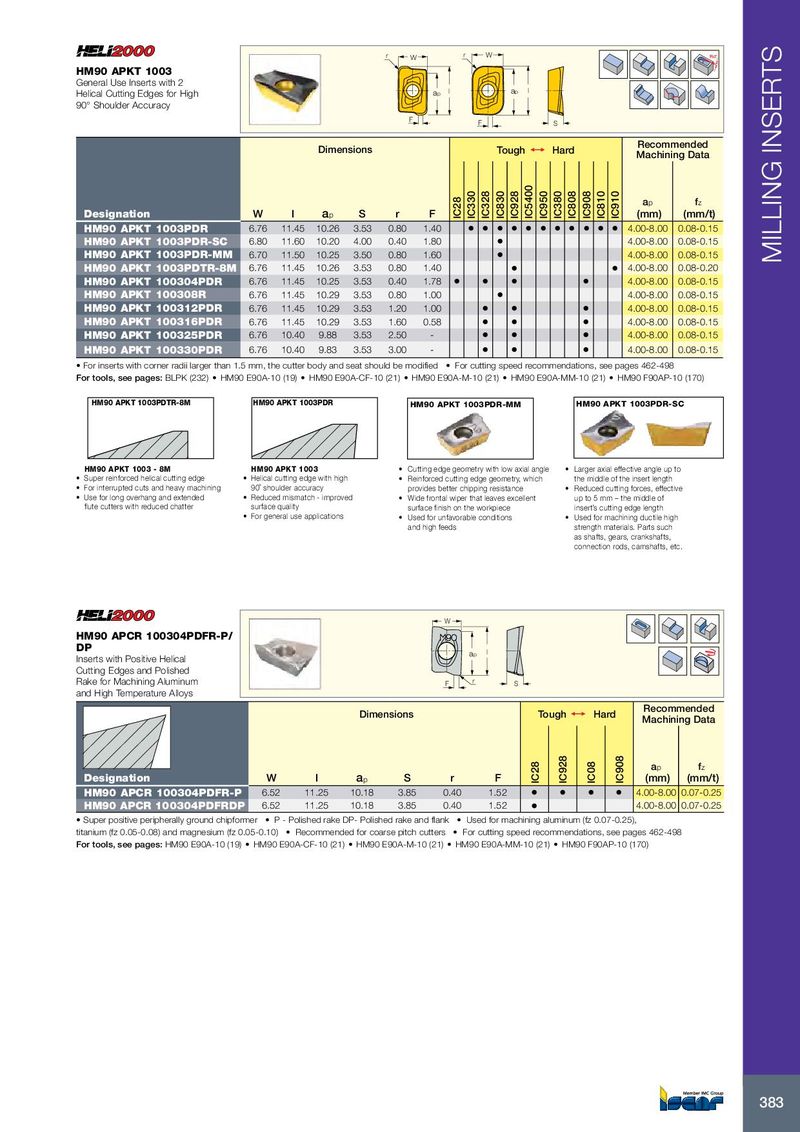

r W r W Rd° HM90 APKT 1003 General Use Inserts with 2 Helical Cutting Edges for High ap l ap l 90° Shoulder Accuracy F F S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC28 IC330 IC328 IC830 IC928 IC5400 IC950 IC380 IC808 IC908 IC810 IC910 (mm) (mm/t) HM90 APKT 1003PDR 6.76 11.45 10.26 3.53 0.80 1.40 • • • • • • • • • • • 4.00-8.00 0.08-0.15 HM90 APKT 1003PDR-SC 6.80 11.60 10.20 4.00 0.40 1.80 • 4.00-8.00 0.08-0.15 HM90 APKT 1003PDR-MM 6.70 11.50 10.25 3.50 0.80 1.60 • 4.00-8.00 0.08-0.15 MILLING INSERTS HM90 APKT 1003PDTR-8M 6.76 11.45 10.26 3.53 0.80 1.40 • • 4.00-8.00 0.08-0.20 HM90 APKT 100304PDR 6.76 11.45 10.25 3.53 0.40 1.78 • • • • 4.00-8.00 0.08-0.15 HM90 APKT 100308R 6.76 11.45 10.29 3.53 0.80 1.00 • 4.00-8.00 0.08-0.15 HM90 APKT 100312PDR 6.76 11.45 10.29 3.53 1.20 1.00 • • • 4.00-8.00 0.08-0.15 HM90 APKT 100316PDR 6.76 11.45 10.29 3.53 1.60 0.58 • • • 4.00-8.00 0.08-0.15 HM90 APKT 100325PDR 6.76 10.40 9.88 3.53 2.50 - • • • 4.00-8.00 0.08-0.15 HM90 APKT 100330PDR 6.76 10.40 9.83 3.53 3.00 - • • • 4.00-8.00 0.08-0.15 • For inserts with corner radii larger than 1.5 mm, the cutter body and seat should be modified • For cutting speed recommendations, see pages 462-498 For tools, see pages: BLPK (232) • HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) HM90 APKT 1003PDTR-8M HM90 APKT 1003PDR HM90 APKT 1003PDR-MM HM90 APKT 1003PDR-SC HM90 APKT 1003 - 8M HM90 APKT 1003 • Cutting edge geometry with low axial angle • Larger axial effective angle up to • Super reinforced helical cutting edge • Helical cutting edge with high • Reinforced cutting edge geometry, which the middle of the insert length • For interrupted cuts and heavy machining 90˚ shoulder accuracy provides better chipping resistance • Reduced cutting forces, effective • Use for long overhang and extended • Reduced mismatch - improved • Wide frontal wiper that leaves excellent up to 5 mm – the middle of flute cutters with reduced chatter surface quality surface finish on the workpiece insert’s cutting edge length • For general use applications • Used for unfavorable conditions • Used for machining ductile high and high feeds strength materials. Parts such as shafts, gears, crankshafts, connection rods, camshafts, etc. W HM90 APCR 100304PDFR-P/ DP ap l Inserts with Positive Helical Cutting Edges and Polished Rake for Machining Aluminum F r S and High Temperature Alloys Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC28 IC928 IC08 IC908 (mm) (mm/t) HM90 APCR 100304PDFR-P 6.52 11.25 10.18 3.85 0.40 1.52 • • • • 4.00-8.00 0.07-0.25 HM90 APCR 100304PDFRDP 6.52 11.25 10.18 3.85 0.40 1.52 • 4.00-8.00 0.07-0.25 • Super positive peripherally ground chipformer • P - Polished rake DP- Polished rake and flank • Used for machining aluminum (fz 0.07-0.25), titanium (fz 0.05-0.08) and magnesium (fz 0.05-0.10) • Recommended for coarse pitch cutters • For cutting speed recommendations, see pages 462-498 For tools, see pages: HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) 383
