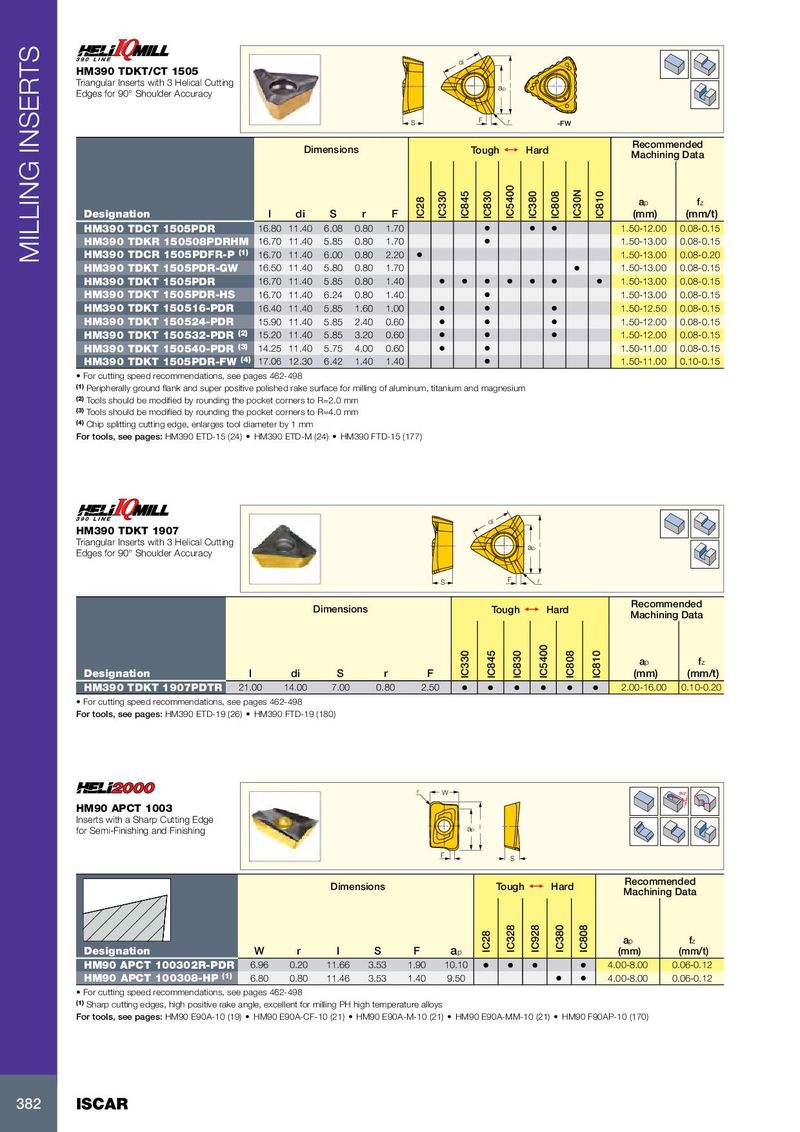

Каталог Iscar вращающийся инструмент 2017 - страница 386

di HM390 TDKT/CT 1505 Triangular Inserts with 3 Helical Cutting ap l Edges for 90° Shoulder Accuracy S F r -FW Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l di S r F IC28 IC330 IC845 IC830 IC5400 IC380 IC808 IC30N IC810 (mm) (mm/t) HM390 TDCT 1505PDR 16.80 11.40 6.08 0.80 1.70 • • • 1.50-12.00 0.08-0.15 HM390 TDKR 150508PDRHM 16.70 11.40 5.85 0.80 1.70 • 1.50-13.00 0.08-0.15 HM390 TDCR 1505PDFR-P (1) 16.70 11.40 6.00 0.80 2.20 MILLING INSERTS • 1.50-13.00 0.08-0.20 HM390 TDKT 1505PDR-GW 16.50 11.40 5.80 0.80 1.70 • 1.50-13.00 0.08-0.15 HM390 TDKT 1505PDR 16.70 11.40 5.85 0.80 1.40 • • • • • • • 1.50-13.00 0.08-0.15 HM390 TDKT 1505PDR-HS 16.70 11.40 6.24 0.80 1.40 • 1.50-13.00 0.08-0.15 HM390 TDKT 150516-PDR 16.40 11.40 5.85 1.60 1.00 • • • 1.50-12.50 0.08-0.15 HM390 TDKT 150524-PDR 15.90 11.40 5.85 2.40 0.60 • • • 1.50-12.00 0.08-0.15 HM390 TDKT 150532-PDR (2) 15.20 11.40 5.85 3.20 0.60 • • • 1.50-12.00 0.08-0.15 HM390 TDKT 150540-PDR (3) 14.25 11.40 5.75 4.00 0.60 • • 1.50-11.00 0.08-0.15 HM390 TDKT 1505PDR-FW (4) 17.06 12.30 6.42 1.40 1.40 • 1.50-11.00 0.10-0.15 • For cutting speed recommendations, see pages 462-498 (1) Peripherally ground flank and super positive polished rake surface for milling of aluminum, titanium and magnesium (2) Tools should be modified by rounding the pocket corners to R=2.0 mm (3) Tools should be modified by rounding the pocket corners to R=4.0 mm (4) Chip splitting cutting edge, enlarges tool diameter by 1 mm For tools, see pages: HM390 ETD-15 (24) • HM390 ETD-M (24) • HM390 FTD-15 (177) di HM390 TDKT 1907 Triangular Inserts with 3 Helical Cutting ap l Edges for 90° Shoulder Accuracy S F r Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l di S r F IC330 IC845 IC830 IC5400 IC808 IC810 (mm) (mm/t) HM390 TDKT 1907PDTR 21.00 14.00 7.00 0.80 2.50 • • • • • • 2.00-16.00 0.10-0.20 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HM390 ETD-19 (26) • HM390 FTD-19 (180) r W Rd° HM90 APCT 1003 Inserts with a Sharp Cutting Edge for Semi-Finishing and Finishing ap l F S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W r l S F a p IC28 IC328 IC928 IC380 IC808 (mm) (mm/t) HM90 APCT 100302R-PDR 6.96 0.20 11.66 3.53 1.90 10.10 • • • • 4.00-8.00 0.06-0.12 HM90 APCT 100308-HP (1) 6.80 0.80 11.46 3.53 1.40 9.50 • • 4.00-8.00 0.06-0.12 • For cutting speed recommendations, see pages 462-498 (1) Sharp cutting edges, high positive rake angle, excellent for milling PH high temperature alloys For tools, see pages: HM90 E90A-10 (19) • HM90 E90A-CF-10 (21) • HM90 E90A-M-10 (21) • HM90 E90A-MM-10 (21) • HM90 F90AP-10 (170) 382 ISCAR
